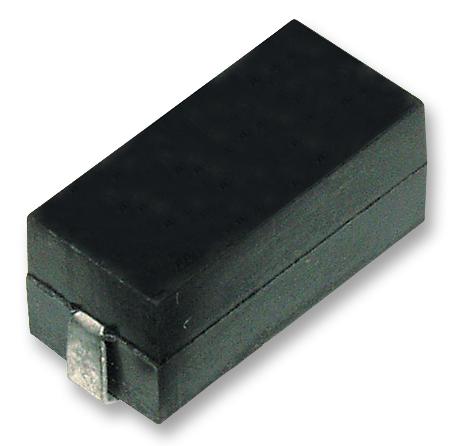

TE CONNECTIVITY SMV1W680KJT High Voltage SMD Resistors
The Metal Glaze high voltage SMD resistors are flameproof, UL94VO molded packages resistant to sulfuration, heat, and humidity. They feature high surge and pulse withstand capabilities, excellent resistance tolerance of +5% or +1%, and operate within temperature ranges from -65°C to +200°C. Designed for high stability and reliability, these resistors incorporate metal-glaze elements providing consistent performance. Suitable for environments requiring high dielectric withstand, they handle AC 1000V for 1 minute and include features like minimum 95% solder coverage at 235°C for 2 seconds and resistance to soldering heat. They are ideal for high voltage applications requiring durability and precise resistance characteristics.
TE CONNECTIVITY SMV1W680KJT High Voltage SMD Resistors Specifications:
- Flameproof UL94VO molded package
- Resistance Tolerance: +5% (J), +1% (F)
- Resistance Range: 100K to 10M Ohms
- Rated Power: 1W, 2W, 3W options
- Maximum Working Voltage: 1600V to 5000V depending on power rating
- Resistance Temperature Coefficient: +200ppm / °C
- Operating Range: -65°C to +200°C
- Dielectric Withstanding Voltage: AC 1000V for 1 min
- Insulation Resistance: 10,000 MΩ at DC 500V
- Pulse Load Capability: IEC 61000-4-5, 1.2/50 us pulse withstand
- Solderability: Minimum 95% coverage at 235°C for 2 seconds
- Temperature Cycle Test: -65°C to +275°C, 5 cycles
- Load Life Test: 1000 hours at 70°C, 90-minute load periods
- Moisture-proof Load Life: 1000 hours at 40°C, 95% RH
- Dimensions: Lengths 14-17 mm, widths up to 10.5 mm depending on power rating
- Pulse Resistance: Capable of handling single and continuous pulses with specified durations
- Compliance with IEC61000-4-5 Lightning Surge Tests
- Tape Packaging: Lengths, widths, and reel dimensions specified for automated assembly
