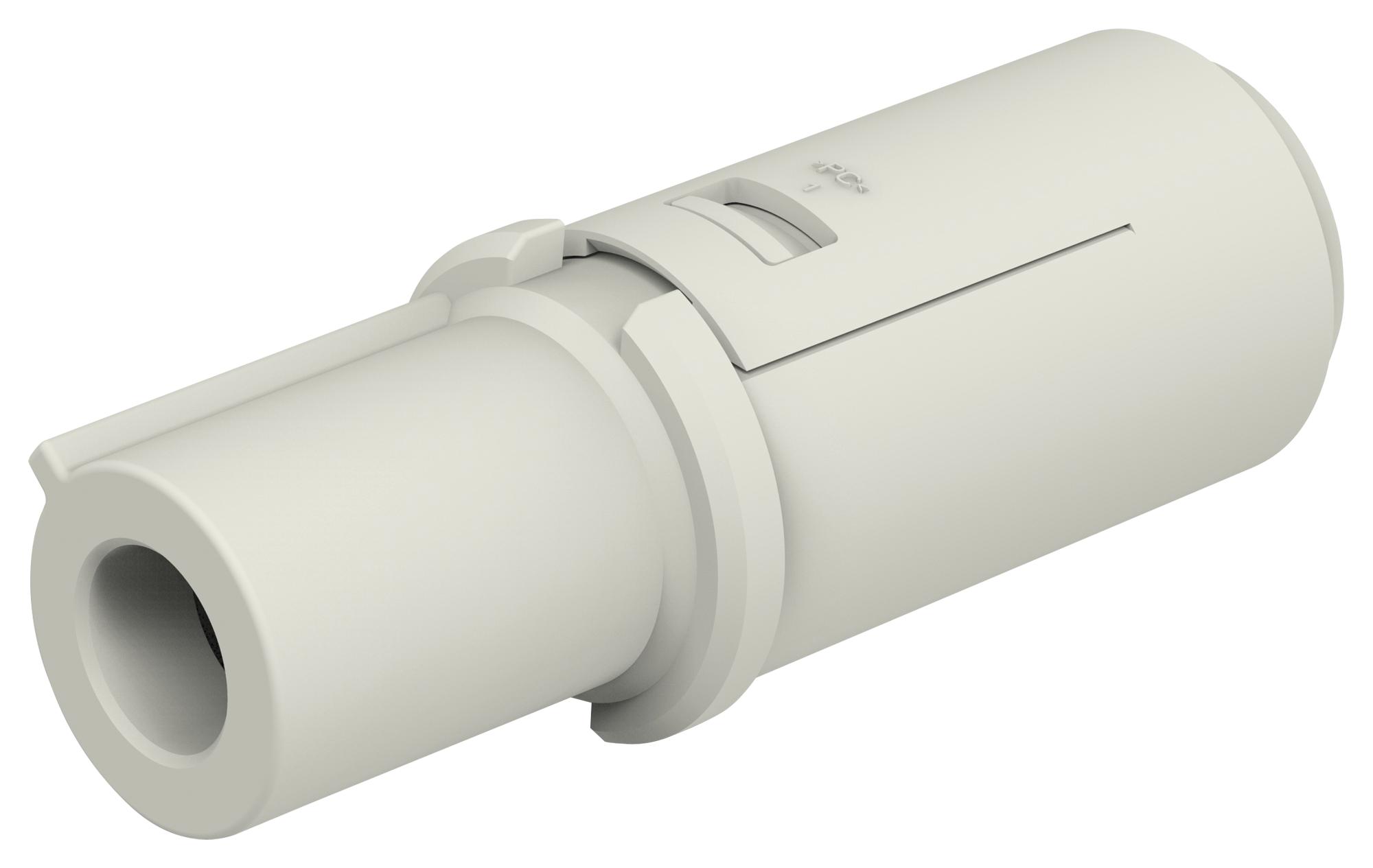

TE CONNECTIVITY T2192503201000 Heavy Duty Connectors
Heavy-duty connectors from TE Connectivity are engineered for demanding industrial environments, offering reliable power and signal transfer. The HCM high-current series with IP68 protection and rugged aluminum housings ensures durability, salt spray resistance, and environmental sealing. Capable of handling currents up to 650A and voltages up to 4000V, these connectors are designed for outdoor use with corrosion resistance and long-lasting performance. Flexible configurations from 1 to 4 positions, with options for crimping contacts and various wire diameters, make them ideal for data, power, and signaling applications requiring high current and environmental resilience.
TE CONNECTIVITY T2192503201000 Heavy Duty Connectors Specifications:
- Current ratings: HCM250 up to 250A, HCM350 up to 350A, HCM650 up to 650A
- Voltage withstand: HCM250 and HCM350 up to 2000V, HCM650 up to 4000V
- Insert positions: 1-4, customizable for application needs
- Housing: Aluminum alloy with powder coating, corrosion resistant, salt spray tested for 500 hours
- Seals: Rubber, conductive rubber, providing environmental sealing and water resistance
- Operating temperature: -40°C to +125°C
- Locking mechanism: Stainless steel screw locking for secure connection
- Protection: IP68 standard, Dust-tight and waterproof with high durability
- Standards: EN 61984, IEC 60068, IEC 60512, IEC 60529, IEC 60664-1, EN 61373
- Application: Power supply, data transfer, signal integrity in outdoor and industrial environments
Buy the Buy TE Connectivity Heavy Duty Connectors Part Number T2192503201000 Online
Discover the robustness and reliability of TE’s Heavy Duty Connectors designed for harsh industrial environments. The HCM series offers high current capacity up to 650A, with IP68 protection ensuring durability against water, dust, and corrosion. Suitable for demanding applications like power distribution, data transfer, and signaling, these connectors feature rugged aluminum housings, stainless steel locking, and proven salt spray resistance. Easy to install with customizable options, they provide a secure, environmentally sealed connection, making them an excellent choice for outdoor and challenging industrial settings.
Buy TE Connectivity T2192503201000 now and experience unmatched reliability and durability in high-current applications and harsh outdoor environments.
