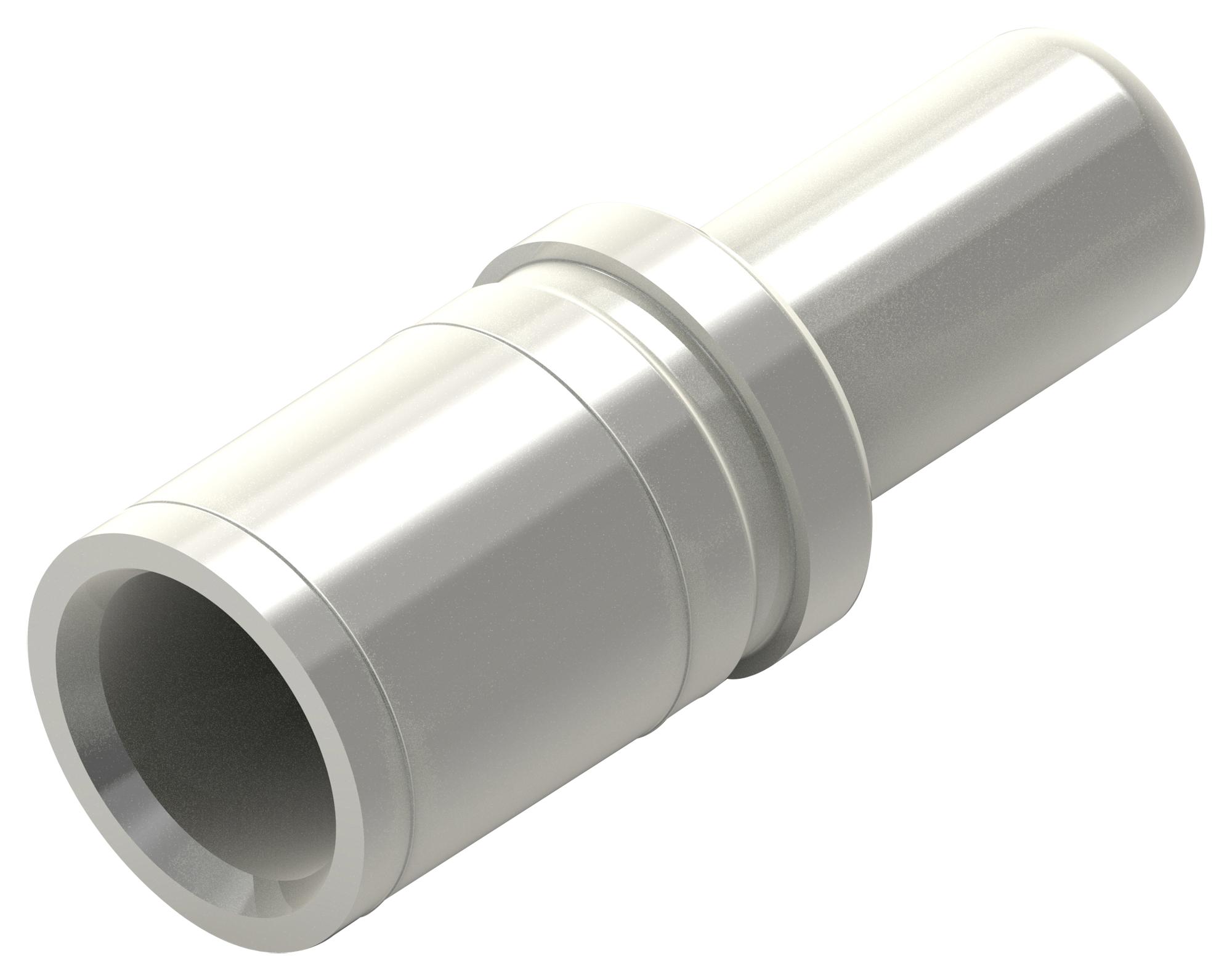

TE CONNECTIVITY T2193501120000 Heavy Duty Power Connector
Heavy-duty connectors (HDC) from TE Connectivity are designed for excellent and reliable performance in harsh environments. They are primarily used for data, signal, or power connections between different devices or functional units. These connectors feature a modular and standard interface to maximize application efficiency. TE's HCM high-current series, combined with IP68-rated housings and covers, meets high current requirements in challenging settings. The HCM series supports up to 350A, with contact configurations from 1 to 4 positions. The IP68 housing provides robust environmental protection, including salt spray resistance for up to 500 hours, ensuring a stable and durable connection suitable for various industrial applications.
TE CONNECTIVITY T2193501120000 Heavy Duty Power Connector Specifications:
- Current ratings: HCM250 250A, HCM350 350A, HCM650 650A
- Operating Voltage: HCM250 2000V, HCM350 2000V, HCM650 up to 4000V
- Insert configurations: 1-4 positions, crimping type
- Wire diameter range: HCM250 35-70mm, HCM350 35-120mm, HCM650 35-240mm
- Contact resistance: Excellent shock and vibration resistance
- Insulation withstand voltage: Up to 12KV for HCM650, 4000V for others
- Housing material: Aluminum alloy with powder coating
- Seals: Rubber, conductive rubber for environmental sealing
- Environmental resistance: Salt spray resistance up to 500 hours
- Temperature range: -40°C to +125°C
- Locking mechanism: Stainless steel screw
- Protection degree: IP68
- Standards compliance: IEC 60068, IEC 60529, EN 61984, IEC 60664-1
- Durability: Insert mating cycle > 500
- Corrosion resistance confirmed by salt spray testing
Buy the TE Connectivity T2193501120000 – Reliable Heavy Duty Connectors for Industrial Applications
Purchase TE Connectivity heavy-duty power connectors online today to ensure reliable, high-current connections in harsh environments. With IP68 protection, support for up to 350A, and corrosion-resistant aluminum housings with salt spray resistance for 500 hours, these connectors are ideal for demanding industrial applications like energy, rail, and power sectors. Designed for robustness and long service life, these connectors feature crimping contacts, stainless steel locking screws, and comply with international standards like IEC 60068 and IEC 60529. Secure your connectivity today for stable, durable operations.
Get TE Connectivity T2193501120000 today—designed for high current, harsh environments, and long-lasting durability in industrial applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T2193501120000?
You can click on the BUY or RFQ button to purchase T2193501120000 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T2193501120000?
You can download the T2193501120000 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T2193501120000?
TE CONNECTIVITY
