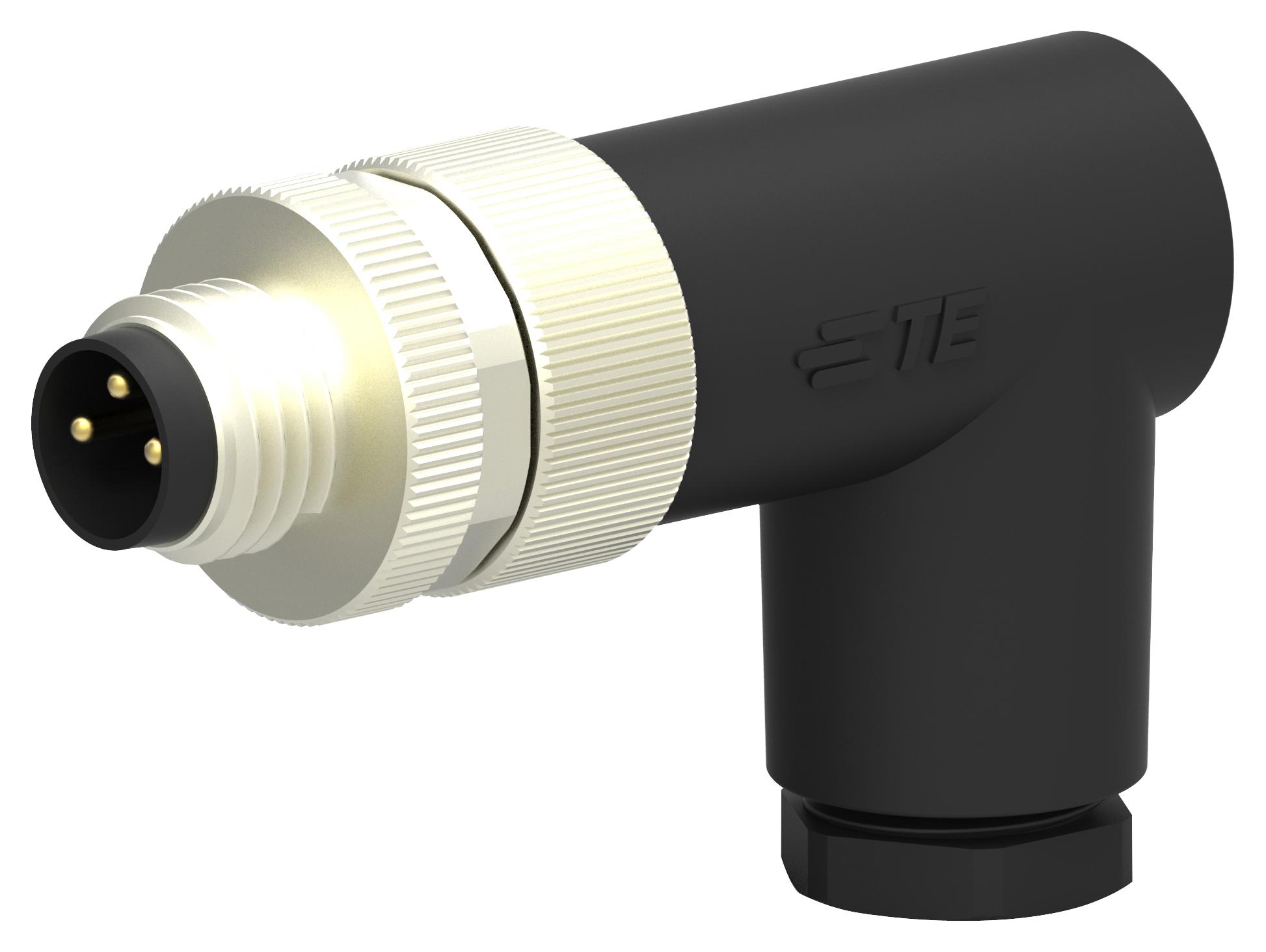

TE CONNECTIVITY T4013008031000 M8 Connector
This M8 connector is a sealed, wire-to-wire circular connector designed for reliable signal transmission. Featuring a compact 3-position configuration, it supports up to 3A current rating and operates within a temperature range of -40°C to 85°C. Made of PBT housing with a silicone seal, it ensures durability and environmental protection to IP67 standards. Ideal for industrial automation, sensor connections, and signal transmitting applications, this connector offers easy field installation with threading and keying for correct mating.
TE CONNECTIVITY T4013008031000 M8 Connector Specifications:
- Connector System: Wire-to-Wire
- Number of Positions: 3
- Sealable: Yes
- Electrical Characteristics: 3A Current, 60 VAC Operating Voltage
- Shell Material: Plastic (PBT)
- Environmental Protection: IP67
- Operating Temperature Range: -40°C to 85°C
- Insulation Material: PBT
- Contact Type: Socket
- Mechanical Attachment: Threaded Coupling
- Ingress Protection: IP67
- Durability Rating: 100 Cycles
- Body Features: Silicone Seal, Mating Polarization Key
- Wire Size: 0.25—.14 mm²
- Ingress protection level: Dust and water sealed
- Certifications: UL Flammability HB, Reach, RoHS, China RoHS
Buy the TE Series M8 Signal Connector: T4013008031000
Enhance your industrial wiring with this sealed M8 connector designed for signal applications. With a compact 3-position design, it supports up to 3A current, ensuring reliable operation in harsh environments. Made from durable PBT with IP67 protection, it guarantees dust and water resistance for outdoor or manufacturing use. Easy field installation, threaded coupling, and keying features make assembly quick and mistake-proof. Ideal for sensors, automation, and signal transmission, this connector offers high durability and environmental protection, perfect for demanding industrial environments.
Buy TE Series M8 Signal Connector now and experience unmatched reliability and high-performance industrial connectivity.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T4013008031000?
You can click on the BUY or RFQ button to purchase T4013008031000 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T4013008031000?
You can download the T4013008031000 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T4013008031000?
TE CONNECTIVITY
