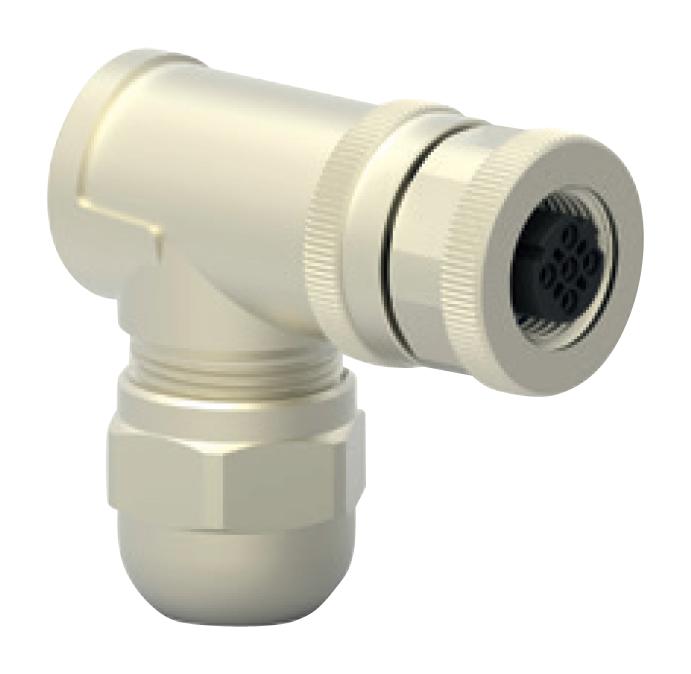

TE CONNECTIVITY T4112012031000 Industrial Circular Connector
The TE Connectivity T4112012031-000 is an M12 right-angled female circular connector with an A code and PG9 size. It features a robust copper alloy shell with a nickel-plated seal and PA66+GF25 insulation for durability. Designed with three signal contacts, it supports voltage up to 250V AC RMS and provides IP67 water resistance. The connector aligns at a 45° keying for secure mating, suitable for wire or cable sizes from 18AWG to 24AWG. Ideal for industrial automation and control, ensuring reliable connectivity in harsh environments, and meets UL 94V-0 flammability standards.
TE CONNECTIVITY T4112012031000 Industrial Circular Connector Specifications:
- Shell Material: Copper Alloy
- Shell Finish: Nickel-plated
- Insulation Material: PA66+GF25
- Number of Positions: 3
- Voltage Rating: 250V AC RMS
- Sealing Standard: IP67
- Connection Type: Right-angled, key 45°
- Contact Size: PG9
- Wire Range: 18AWG to 24AWG
- Flammability: UL 94V-0
- Operating Temperature: -40°C to +85°C
Buy the TE Connectivity Series M8/M12 Connector: T4112012031-000
Order the TE Connectivity T4112012031-000 now and enhance your industrial wiring with a durable, IP67 rated M12 female connector featuring 3 contacts and PG9 size. Perfect for automation systems requiring water resistance, secure keyed alignment, and high voltage capacity up to 250V. This connector ensures a robust, reliable connection in harsh environments, supports wire sizes from 18AWG to 24AWG, and complies with UL 94V-0 flammability standard. Get professional-grade connectivity today for seamless industrial automation integration.
Buy TE Connectivity T4112012031-000 now and experience unmatched reliability and performance in industrial automation applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T4112012031000?
You can click on the BUY or RFQ button to purchase T4112012031000 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T4112012031000?
You can download the T4112012031000 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T4112012031000?
TE CONNECTIVITY
