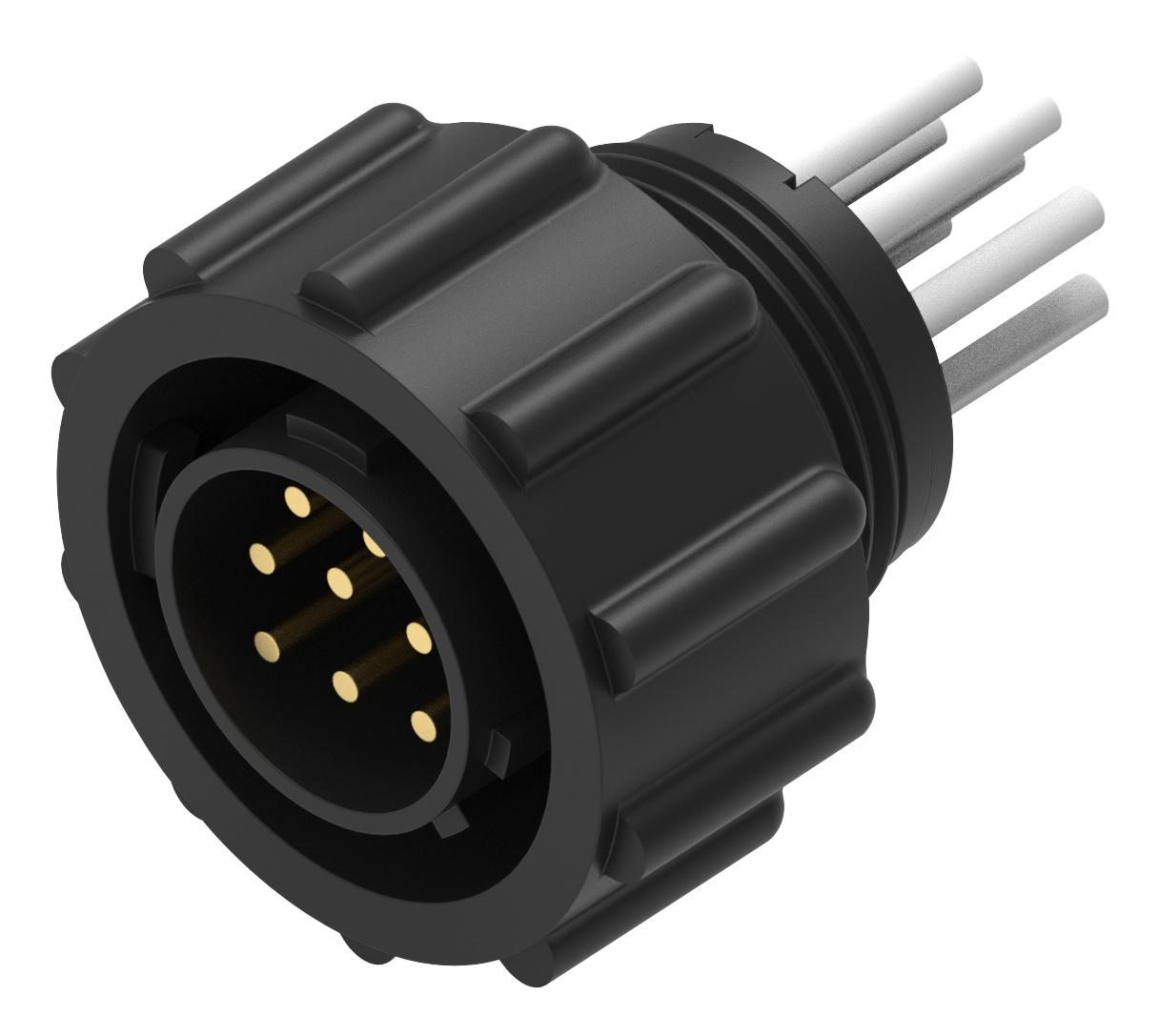

TE CONNECTIVITY 23871313 Circular Plastic Connector Cable
TE Connectivity's Circular Plastic Connector (CPC) cable assemblies provide a rugged and cost-effective solution for power input and output applications. Designed for rapid prototyping and harsh environments, these assemblies reduce installation time and meet space-saving requirements. They are suitable for industrial machinery, control cabinets, rail and transit systems, HVAC equipment, and communication equipment. Featuring thermoplastic housings, built-in pin and socket protection, and removable contacts, these connectors offer a reliable and versatile connection solution.
TE CONNECTIVITY 23871313 Circular Plastic Connector Cable Specifications:
- Series: Series 2
- Size: 11 to 8
- Type: REV
- Plug: 2387131
- Description_Plug: CPC Plug Connector Cable
- Receptacle: 2387132
- Description_Receptacle: CPC Square Flange Receptacle Connector Cable
- Operating_temperature: -55 to 105°C
- Mating_cycles: 500 max (gold or silver), 250 cycles (tin)
- Series_1_signals: up to 13A, 600V
- Series_2_signals: signal only, 250V
- Housings_material: Heat resistant thermoplastic
- Contacts_material: Copper alloy with stainless steel retention spring
- Plating_mating_area: Gold over palladium-nickel over nickel
- Plating_wire_crimp_area: Tin over nickel
- Product_specification: 108-10024 connectors, 108-10042 contacts
- Application_specification: 114-10038
