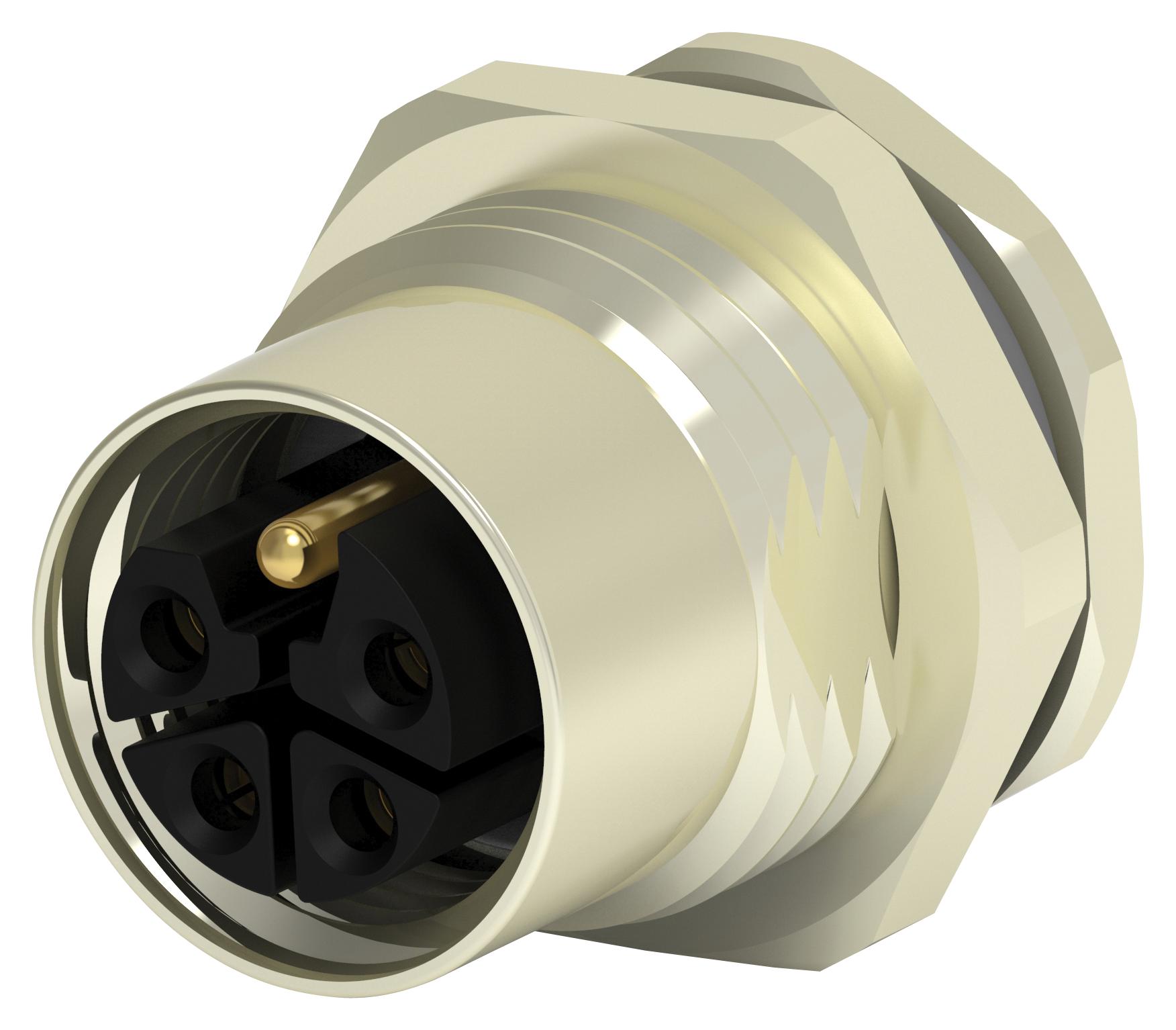

TE CONNECTIVITY T4141L12051000 High-Power Industrial Connectors
TE Connectivity's M12 Power L-Code panel mount PCB connectors provide a compact, high-power solution suitable for industrial automation. Designed for panel mounting, these connectors handle up to 16A per pin, delivering four times the power of standard M12 connectors, while occupying 40% less space than traditional 7/8” connectors. They are IP67 rated, ensuring protection against dust and water immersion up to 1 meter for 30 minutes. Ideal for factory automation, robotics, and industrial machinery, they meet high standards for reliability and durability in harsh environments.
TE CONNECTIVITY T4141L12051000 High-Power Industrial Connectors Specifications:
- Contact Material: Copper Alloy
- Housing Material: LCP
- Rated Voltage: 63V (AC/DC)
- Rated Current: 16A per Pin
- Environmental Protection: IP67 (when mated)
- Operating Temperature Range: -40°C to +85°C
- Application: Factory Automation, Industrial Machinery, Robotics, Lighting
- Mounting Type: Panel Mount PCB
- Number of Poles: 2 to 4 poles options available
- Certifications: UL E28476, IP67 rated
- Dimensions and Space Savings: Up to 40% smaller than traditional 7/8" connectors
Buy the TE Series M12 Power L-Code: T4141L12051000
Discover the durable and space-saving high-power industrial connectors designed for automation and harsh environments. TE's M12 Power L-Code connectors handle up to 16A per pin, providing reliable power in a compact IP67 rated design ideal for robotics, machinery, and factory automation. Easy to install on panels with robust copper alloy contacts and LCP housing, these connectors ensure long-term performance in demanding industrial applications. Order online now to meet your project’s high-power needs efficiently and securely with trusted TE quality.
Order your TE Connectivity Series M12 Power L-Code T4141L12051000 today and enhance your industrial automation with reliable, compact high-power connectors.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T4141L12051000?
You can click on the BUY or RFQ button to purchase T4141L12051000 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T4141L12051000?
You can download the T4141L12051000 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T4141L12051000?
TE CONNECTIVITY
