TE CONNECTIVITY T4161110004004 Sensor/Actuator Connector
The M8/M12 connector assembly is designed for sensor and actuator applications, featuring four positions, straight plug configuration, and a 3000 mm cable length. Constructed with a durable copper alloy contact and PVC insulation, it provides a reliable electrical connection rated for 250 VDC and 4 A current. The assembly includes a shielded, straight, cable pigtail with a black cable exit angle and a connector color in blue. Suitable for industrial automation environments, it complies with EU RoHS, REACH, and elv standards for safe and environmental-friendly operation.
TE CONNECTIVITY T4161110004004 Sensor/Actuator Connector Specifications:
- Connector Type: Plug
- Assembly Type: M12 Pigtail
- Number of Positions: 4
- Application: Sensor/Actuator
- Cable Length: 3000 mm
- Cable Exit Angle: Straight
- Cable Type: PVC insulated, shielded
- Current Rating: 4A
- Voltage Rating: 250 VDC
- Housing Material: GF Nylon
- Contact Material: Copper Alloy
- Cable Jacket Color: Black
- Connector Color: Blue
- Wire Size: 22 AWG
- Environmental Protection: With
- Mounting Angle: Straight
- Compliance: EU RoHS, REACH, ELV

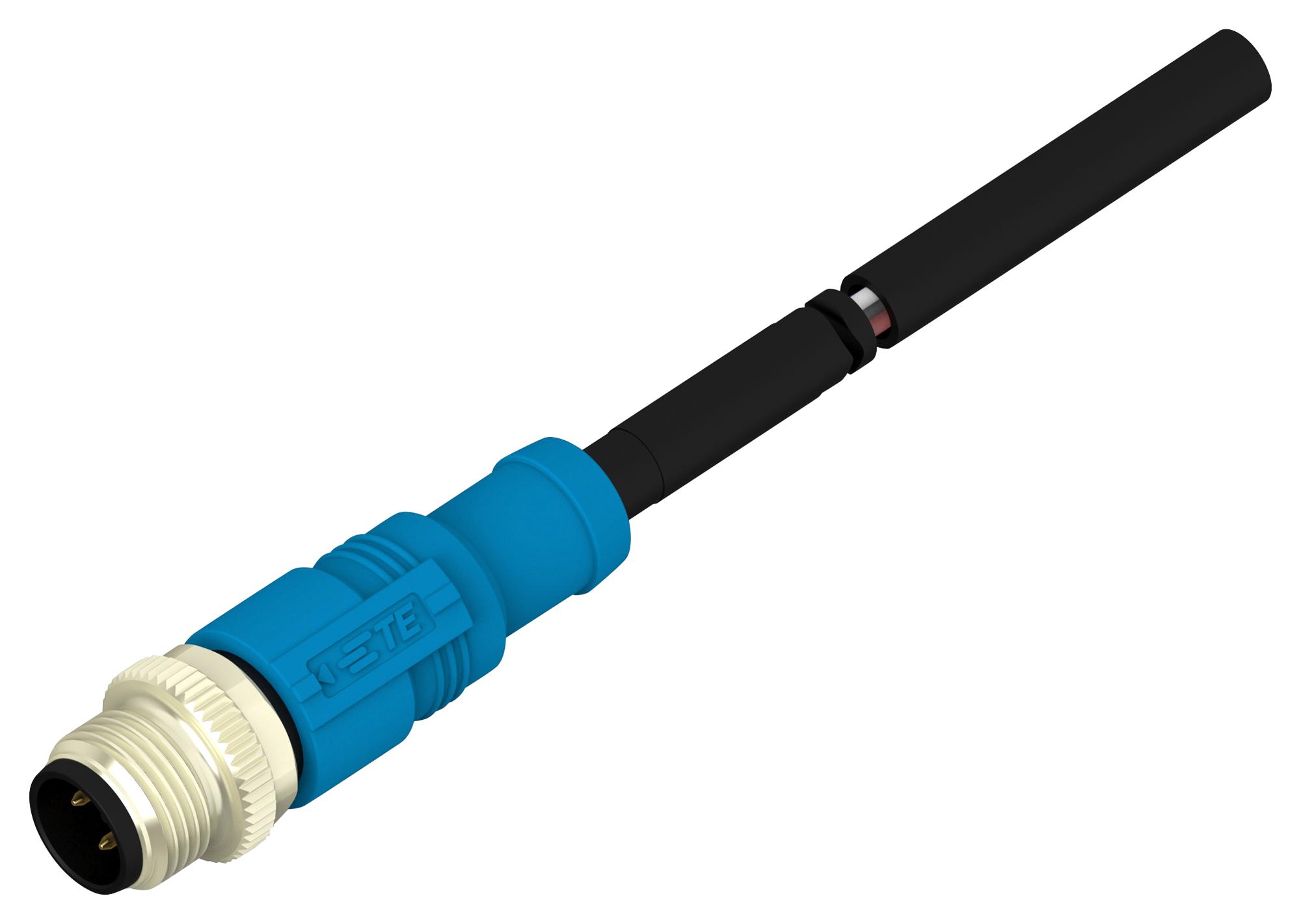

Buy the Buy TE Connectivity M12 A-CODE MALE STRT SINGLE ENDED CABLE Part Number T4161110004 Online
Purchase the TE Connectivity Sensor/Actuator Connector online today to ensure robust and reliable connections in industrial automation systems. This four-position, straight plug assembly with a 3000 mm cable length offers excellent durability, shielded design, and compliance with environmental standards like RoHS and REACH. Perfect for sensor and actuator applications, it features PVC insulation, copper alloy contacts rated for 250 VDC and 4 A, and a blue connector color for easy identification. Buy now for dependable industry-grade performance in demanding environments.
Get TE Connectivity T4161110004 today—built for reliable industrial sensor and actuator connections with robust shielding and long cable length.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T4161110004004?
You can click on the BUY or RFQ button to purchase T4161110004004 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T4161110004004?
You can download the T4161110004004 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T4161110004004?
TE CONNECTIVITY
