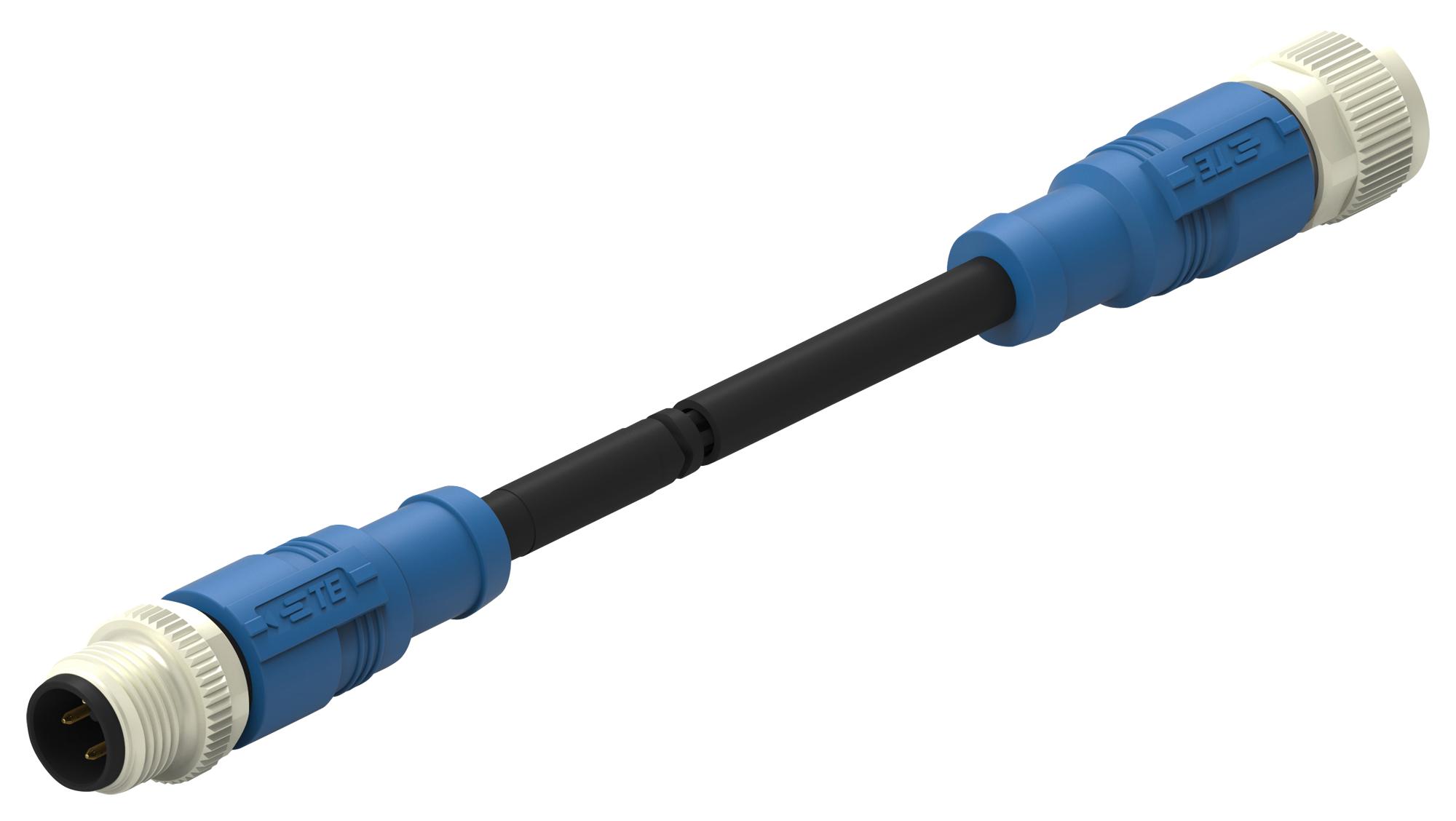

TE CONNECTIVITY T4162123004002 Sensor Cable Assembly
M8M12 cable assemblies are robust, IP67-rated connectors designed for harsh environments in industrial automation, robotics, and machinery. They facilitate dust and water resistance with shielded and unshielded options, available in PVC or PUR sheathing. Suitable for sensors, solenoid valves, vision systems, and manufacturing equipment, these cables support multiple contact configurations, including 2, 3, 4, 5, and 8 poles. They ensure reliable electrical performance with high durability, temperature resistance, and compliance with industry standards like IEC and UL, making them ideal for mission-critical applications.
TE CONNECTIVITY T4162123004002 Sensor Cable Assembly Specifications:
- Protection Rating: IP67, dust and water-proof
- Temperature Range: PVC fixed -40°C to +80°C, flexible -25°C to +80°C; PUR fixed -10°C to +80°C, flexible -5°C to +80°C
- Materials: Contact Brass, Gold Plated; Nut Brass, Nickel Plated; O-ring Silicone rubber; Spring Stainless steel; Over-molding TPU; Housing PA
- Voltages: M12 up to 250V (4 way), 60V (5 way), 30V (25 way); MB up to 60V (3 and 4/5 poles)
- Current Ratings: M12 A coding 2 ways - 4A, 6-8 ways - 2A; M8 and MB - 3A
- Cable Type: PVC or PUR sheathing, 22/24 AWG, shielded and unshielded options, with foil, drain, and braid shielding
- Connector Types: Single-ended, double-ended, straight, and angled versions, with various pin counts
- Cable Lengths: 0.5, 1, 1.5, 3, 5, 7, and 10 meters, customizable
- Standards: IEC 61076-2-101, IEC 61076-2-104, UL Standard UL2238, RoHS compliant
- Mechanical Durability: 100 cycles, high impact resistance
Buy the TE Series M8M12 Sensor Cable: T4162123004002
Order the TE Series M8M12 Sensor Cable Assembly now for dependable, waterproof connections in industrial automation. Equipped with shielded and unshielded options, these robust cables feature IP67 protection rating, supporting various pin configurations and lengths. Made from durable materials like PVC and PUR, they withstand extreme temperatures and mechanical stress. Perfect for sensors, robotics, and manufacturing machinery, this quick-connect solution ensures reliable performance, reduces downtime, and offers customization options for your specific industrial needs. Buy online today for high-quality connectivity.
Get TE Series M8M12 Sensor Cable today—built for precision and long-lasting durability in harsh industrial environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T4162123004002?
You can click on the BUY or RFQ button to purchase T4162123004002 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T4162123004002?
You can download the T4162123004002 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T4162123004002?
TE CONNECTIVITY
