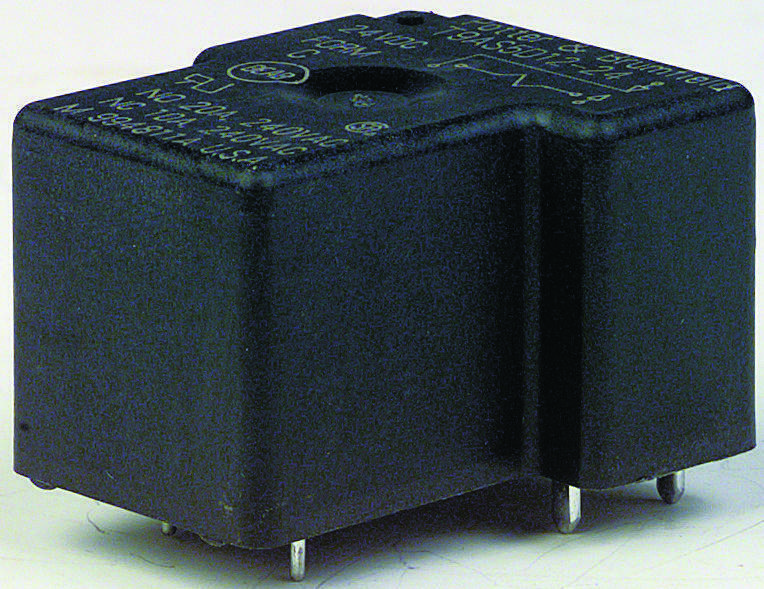

TE CONNECTIVITY T9AS5D1212 General Purpose Relay
The T9AS5D12-12 is a general-purpose relay housed in a wash-tight plastic case with a knock-off nib enclosure. It features a 1-form-C (1 CO) silver-cadmium oxide (AgCdO) contact arrangement with PCB mounting terminals for both coil and contacts. The relay has a non-latching coil operating at 12V DC with a power rating of 1W. It provides Class-F coil insulation, a maximum coil temperature of 155°C, and can withstand maximum vibration excursions of 1.65mm. The relay offers an initial insulation resistance of 1 megohm between insulated elements, with a clearance of 3.18mm and creepage of 6.36mm. It has an initial dielectric strength of 1500Vrms between open contacts. Suitable for HVAC, industrial, and commercial applications.
TE CONNECTIVITY T9AS5D1212 General Purpose Relay Specifications:
- Enclosure: wash-tight plastic case with knock-off nib
- Contact arrangement: 1 form C (1 CO)
- Contact material: AgCdO
- Coil voltage: 12V DC
- Coil power: 1W
- Maximum coil temperature: 155°C
- Initial dielectric strength: 1500Vrms between open contacts
- Insulation resistance: 1MΩ between insulated elements
- Clearance: 3.18mm
- Creepage: 6.36mm
- Vibration resistance: 1.65mm max excursions, 10-55 Hz
- Shock resistance: 10g (functional), 100g (destructive)
- Terminal type: PCB mounting for coil and contacts
- Suitable applications: HVAC, industrial controls, commercial equipment
Buy the Buy TE Connectivity T9A Series Relay Part Number T9AS5D12 Online
Purchase the TE Connectivity T9AS5D12 relay online today and experience the efficiency of a wash-tight, durable relay with a 1-form-C contact configuration, 12V DC coil, and 1W power rating. Perfect for HVAC, industrial controls, and commercial applications, this relay offers reliable insulation resistance, high dielectric strength, and vibration resistance. Convenient PCB mounting terminals make installation straightforward, ensuring dependable performance in demanding environments. Get yours now for optimal control and safety in your projects.
Buy TE Connectivity T9AS5D12 relay now and ensure reliable switching with high current capacity and durable wash-tight construction for industrial and HVAC use.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T9AS5D1212?
You can click on the BUY or RFQ button to purchase T9AS5D1212 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T9AS5D1212?
You can download the T9AS5D1212 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T9AS5D1212?
TE CONNECTIVITY
