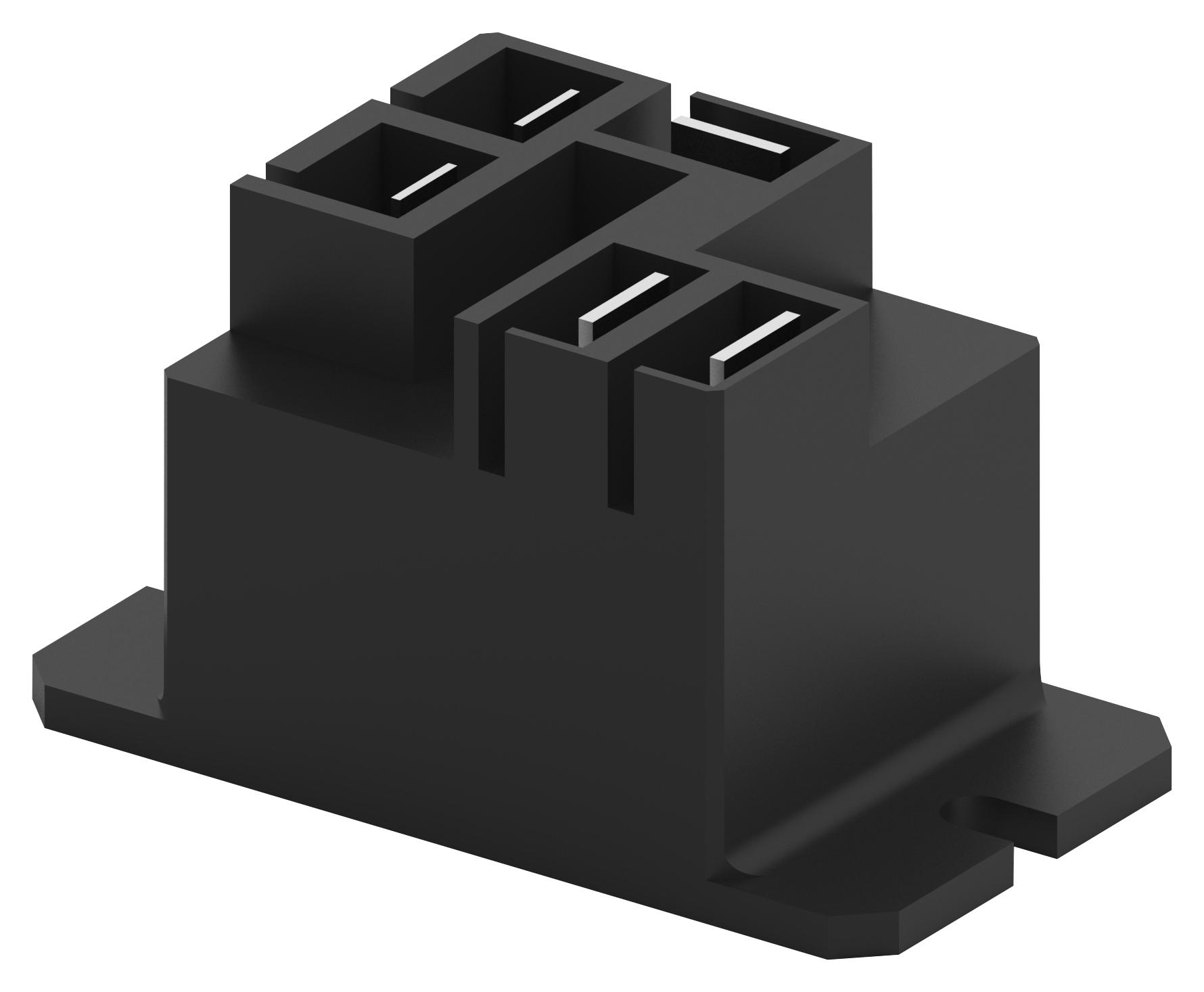

TE CONNECTIVITY T9CP5A5424 Power Relay
The T9C Series is a high-power PCB relay designed for general purpose applications, featuring AC coils, multiple contact configurations, and proven reliability in HVAC, power supplies, and industrial control systems. It supports contact ratings up to 80A and 250VAC, with coil options ranging from 12V to 240VAC, and is compliant with safety standards such as UL, CSA, and VDE. The relay offers dust protection, quick-connect terminals, and withstands harsh environments with vibration and shock resistance, making it suitable for demanding industrial and commercial applications.
TE CONNECTIVITY T9CP5A5424 Power Relay Specifications:
- Contact arrangement: 1 form A (NO), 1 form B (NC), 1 form C (CO)
- Rated voltage: 250VAC
- Max. switching voltage: 277VAC
- Rated current: 80A for NO, 104A for NC, 204/104A for CO
- Breaking capacity: max. 7500VA
- Contact material: AgSnOIno, AgCdO
- Coil voltage range: 12 to 240VAC
- Coil power: 1.6VA (AC; 12-277VAC), 1.2VA (AC; 12-240VAC)
- Dielectric strength: 1500V between open contacts, 2500V between contact and coil
- Initial contact resistance: 75 mΩ at 1A, 5VDC or 12VAC
- Operating temperature: -40°C to 85°C
- Shock resistance: 100g (destructive), 10g (functional), vibration resistance: 1.5mm 10-55Hz
- Terminal type: quick connect
- Weight: 33g
- Dimensions: 187 x 20.8 mm max
Buy the Buy TE Connectivity T9C Series Power Relay Part Number T9CP5A5424 Online
Experience the convenience of online purchasing with the TE Connectivity T9CP5A5424 power relay. Designed for high-current industrial applications, this relay features multiple contact configurations, AC coils from 12V to 240VAC, and robust construction rated up to 80A. With UL, CSA, and VDE certifications, it ensures safety and durability in demanding environments. Easy to install with quick-connect terminals, the relay offers excellent vibration and shock resistance, making it an ideal choice for HVAC, power supplies, and control systems. Buy online today to enhance your automation projects.
Buy TE Connectivity T9CP5A5424 now and experience reliable high-current switching with UL, CSA, and VDE approvals for industrial automation.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T9CP5A5424?
You can click on the BUY or RFQ button to purchase T9CP5A5424 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T9CP5A5424?
You can download the T9CP5A5424 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T9CP5A5424?
TE CONNECTIVITY
