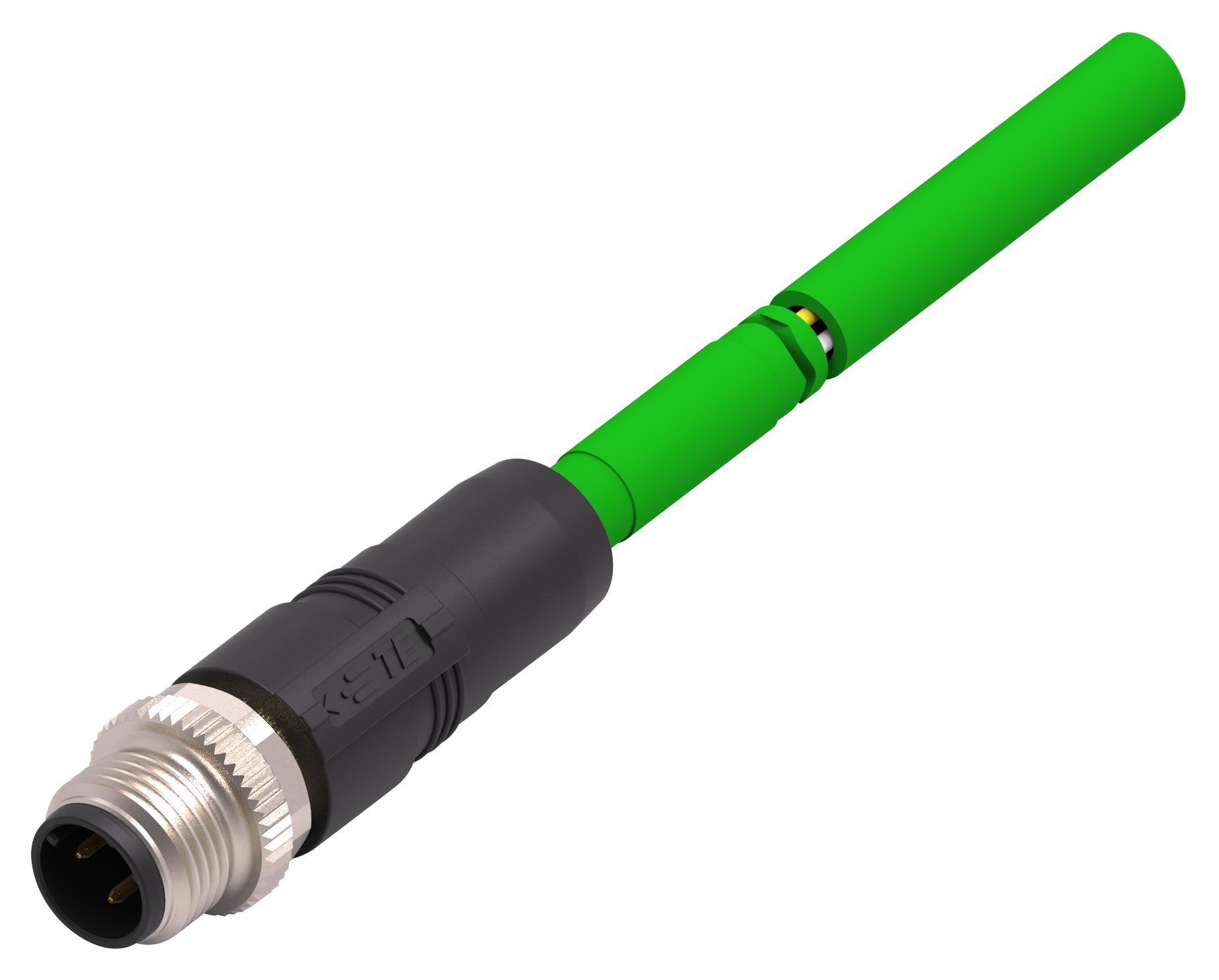

TE CONNECTIVITY TAD14141111020 Industrial Ethernet Cable
This industrial-grade M12 Ethernet cable assembly features a 4-pin D code male straight connector on one end and a customizable termination on the other. It adheres to CAT5E standards, offering shielded data transmission for reliable network connectivity in harsh environments. Constructed with PVC insulation in green, it provides excellent protection against dust, water, and mechanical stress with an IP67 rating. Rated for 30V and 1.5A, it is suitable for industrial automation, process control, and robotics applications requiring high durability and flexible installation options within a temperature range of -40°C to +80°C.
TE CONNECTIVITY TAD14141111020 Industrial Ethernet Cable Specifications:
- Connector Type: M12 D code 4-pin male straight
- Cable Type: Shielded CAT5E
- Insulation Material: PVC, green
- Voltage Rating: 30V
- Current Rating: 1.5A
- Environmental Rating: IP67
- Temperature Range: -40°C to +80°C
- Conductors: 22 AWG
- Certification: UL1863, IEC 61076-2-101, IEC 60512, IP Code
- Flex Life: Up to 1 million flexes depending on application
- Material: Brass contacts with gold plating 30um, brass nuts and shells nickel-plated, silicon rubber O-ring, PA housing
Buy the Buy TE Connectivity Ethernet Cable Part Number TAD14141111020 Online
Purchase TE Connectivity industrial Ethernet cable assemblies online today to enjoy fast delivery and reliable performance in your automation and control projects. These shielded, IP67-rated cables are designed for harsh environments, offering flexibility, durability, and high data transmission rates. Available in various lengths and configurations, they support robust industrial network connectivity. Ideal for process control, robotics, and machinery, these cables provide a seamless solution for high-speed data needs in demanding industrial settings. Ensure your network's reliability—order now!
Buy TE Connectivity TAD14141111020 now and ensure high durability and reliable industrial networking with shielded, IP67 rated Ethernet cables.
