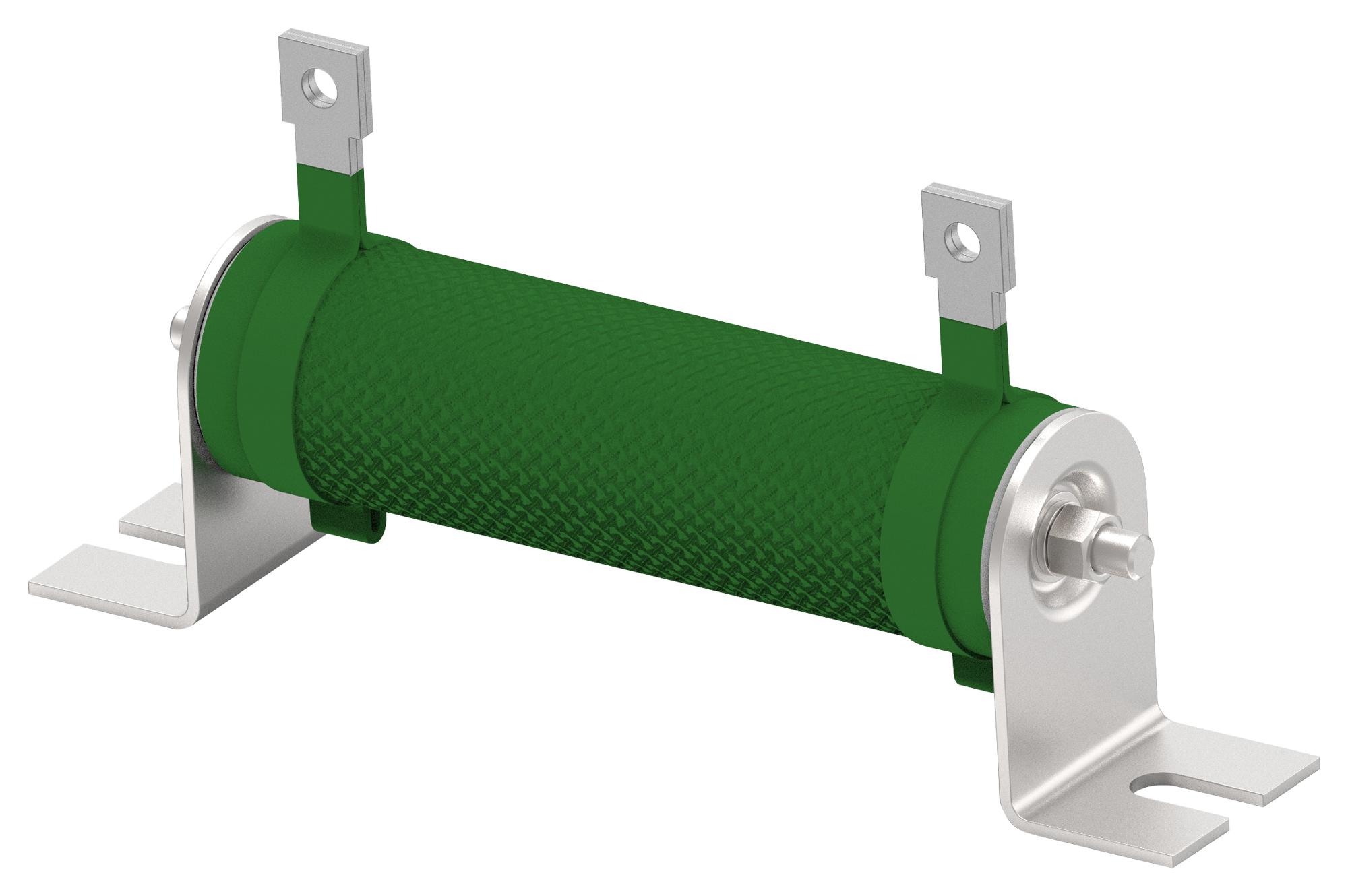

TE CONNECTIVITY TE60BR22J High Power Wire Wound Resistor
Type TE series high power wire wound resistors are flameproof coated tubular ceramic core resistors designed for heavy-duty machinery and motor control applications. They offer stability, reliability, and are suitable for large electrical equipment, load testing, motor start/stop cycles, dynamic braking, and discharge. These resistors feature flameproof construction with UL94V coating, operate from -55°C to +155°C, handle short-term overloads up to three times rated power for 5 seconds, and have a dielectric strength of 2500VAC. They include a standard mounting bracket for easy installation.
TE CONNECTIVITY TE60BR22J High Power Wire Wound Resistor Specifications:
- Type: Power Resistor
- Element Type: Wire Wound
- Dimensions: 146 x 28 x 61mm
- Number of Terminations: 2
- Packaging Method: Box
- Passive Component Tolerance: 5%
- Resistance Class: Up to 1kΩ
- Resistance Value: 22Ω
- Power Rating: 60 W
- Mounting: Bracket
- Temperature Coefficient: +400 ppm/°C
- Flameproof Coating: UL94V
- Operational Temperature Range: -55°C to +155°C
- Overload Capacity: 3x rated power for 5 seconds
- Dielectric Strength: 2500VAC
- Insulation Resistance: ≥20 MΩ at 500VDC
Buy the Buy CGS TE Power Resistor Part Number TE60BR22J Online
Purchase the CGS TE high power wire wound resistor TE60BR22J online for stable, reliable performance in demanding industrial applications. This 60W resistor features flameproof coating, UL94V certification, and operates from -55°C to +155°C. Its robust construction ensures it withstands overloads up to three times for short durations, making it ideal for motor control, load testing, and dynamic braking. Easy to install with a standard bracket, this resistor provides excellent dielectric strength and high insulation resistance, supporting your heavy-duty electrical and machinery needs efficiently.
Order your CGS TE power resistor TE60BR22J today and ensure your heavy-duty machinery and motor control systems operate with reliable high power resistance.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY TE60BR22J?
You can click on the BUY or RFQ button to purchase TE60BR22J from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part TE60BR22J?
You can download the TE60BR22J datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of TE60BR22J?
TE CONNECTIVITY
