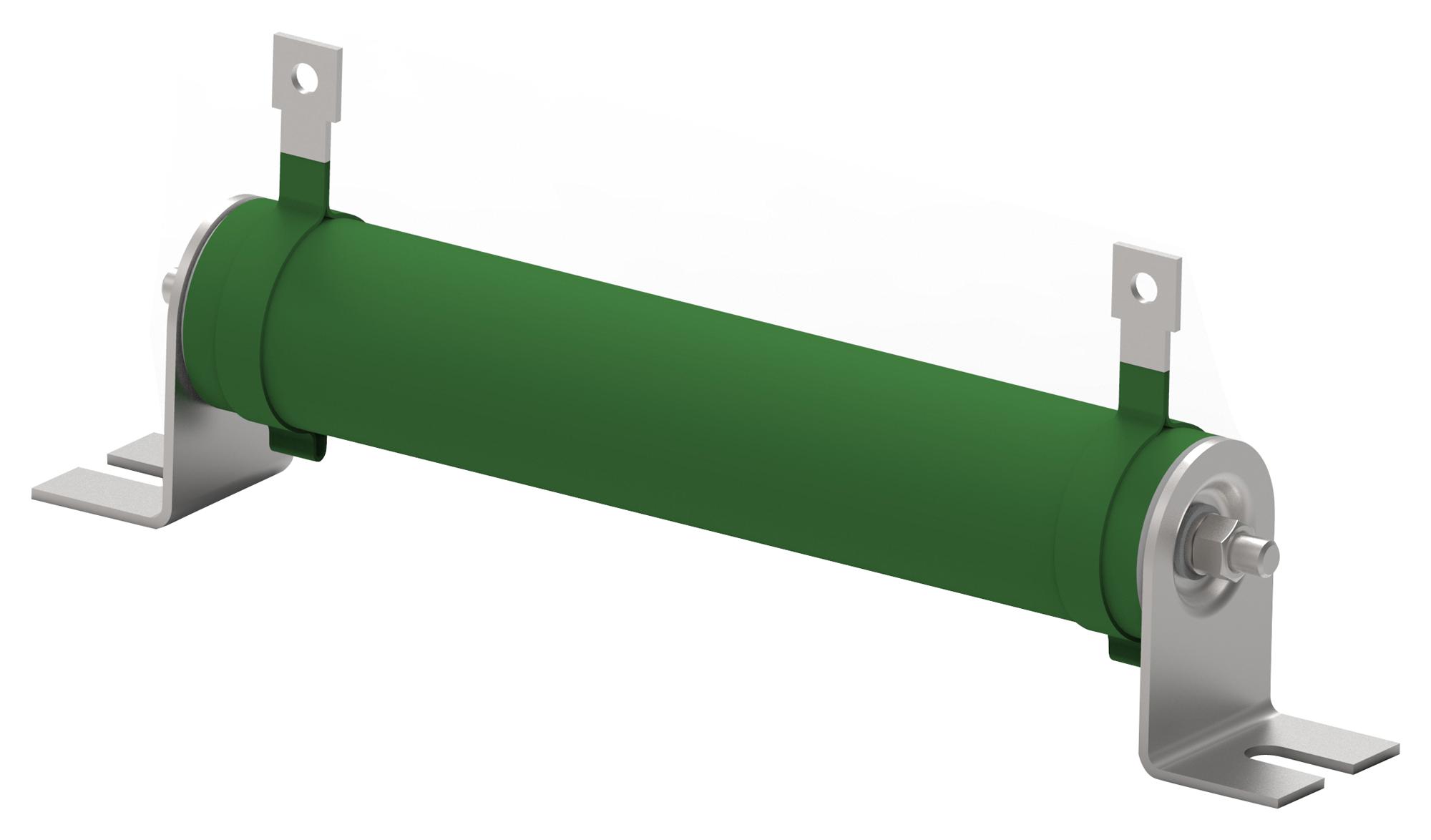

TE CONNECTIVITY TE80BR22J High Power Wire Wound Resistor
The TE Series high power wire wound resistors are flameproof coated tubular ceramic core resistors designed for heavy-duty machinery, electrical equipment, and motor control. They utilize standard and edge-wound methods to enhance power capacity, withstanding short-term overloads up to three times their rated power. Operating from -55°C to +155°C, they feature a minimum dielectric strength of 2500VAC, an insulation resistance of at least 20MΩ at 500VDC, and UL94V flameproof coating. Ideal for load testing, dynamic braking, and discharge applications, these resistors ensure stability and reliability in demanding environments. Comes with mounting bracket.
TE CONNECTIVITY TE80BR22J High Power Wire Wound Resistor Specifications:
- Dimensions: 196 x 28 x 61 mm
- Power Rating: 80 W
- Resistance Value: 22Ω
- Resistance Class: Up to 1kΩ
- Tolerance: 5%
- Operating Temperature Range: -55°C to +155°C
- Dielectric Strength: 2500VAC min
- Insulation Resistance: ≥20MΩ at 500VDC
- Winding Method: Standard and edge-wound (corrugated)
- Flameproof Coating: UL94V
- Terminations: 2 mounting terminals
- Mechanical Mounting: Bracket included
- Material: Ceramic core
- Usage Conditions: Heavy-duty electrical applications
- Environmental: Suitable for load testing, motor control, and dynamic braking
- Compliance: UL listed
Buy the Buy CGS TE Power Resistor Part Number TE80BR22J Online
Purchase the CGS TE high power wire wound resistor online today and experience exceptional reliability and stability for your heavy-duty electrical equipment. With a robust ceramic core, flameproof coating, and the ability to handle short-term overloads, this resistor is ideal for load testing, motor control, and dynamic braking in industrial settings. Its durable construction ensures consistent performance even in extreme temperatures from -55°C to +155°C. Easy to install with included mounting bracket, order now to equip your machinery with a high-quality, compliant resistor designed for demanding environments and long-term reliability.
Buy CGS TE TE80BR22J high power wire wound resistor now and ensure reliable performance in demanding industrial applications.
