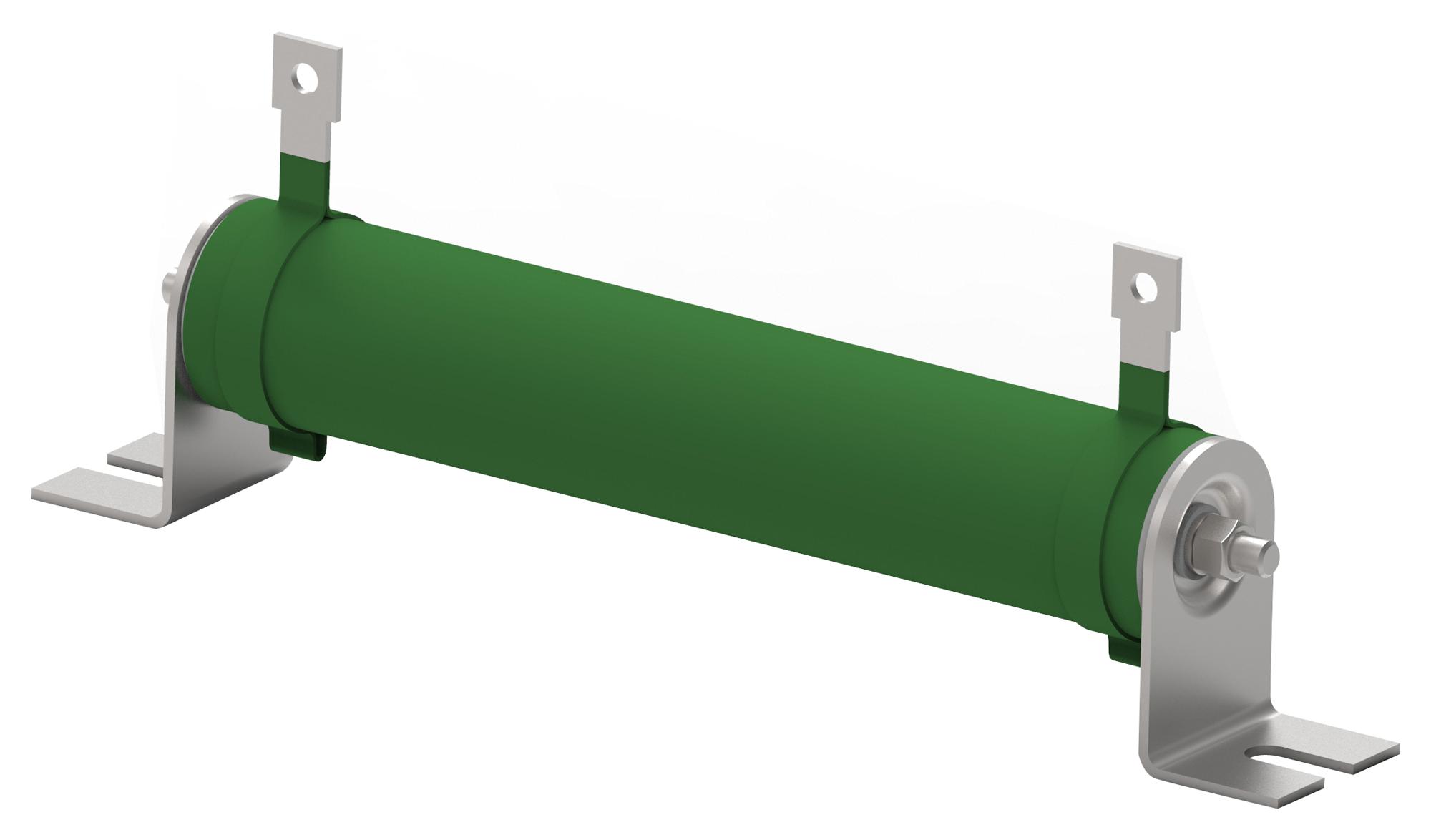

TE CONNECTIVITY TE80BR33J Power Resistor
The TE Series high power wire wound resistors are flameproof coated tubular ceramic core resistors, designed for heavy-duty machinery and electrical equipment. They feature standard and edge wound winding methods to enhance power handling, offering excellent stability and reliability in motor control, load testing, and dynamic braking. With a wide temperature range from -55°C to +155°C, the resistors can withstand short-term overloads at three times rated power for 5 seconds. These flameproof resistors have UL94V coating, dielectric strength over 2,500VAC, and at least 20MΩ insulation resistance at 500VDC, ensuring safety and durability.
TE CONNECTIVITY TE80BR33J Power Resistor Specifications:
- Power Rating: 80 W
- Resistance Value: 33Q
- Resistance Tolerance: 5%
- Dimensions: 196 x 28 x 61 mm
- Termination: 2 Mounting Terminals
- Wire Wound Element Type
- Flameproof Coating: UL94V
- Operating Temperature Range: -55°C to +155°C
- Dielectric Strength: ≥ 2,500VAC
- Insulation Resistance: ≥ 20MΩ at 500VDC
- Construction: Tubular ceramic with wire wound design
- Mounting: Standard bracket included
- Environmental: Designed for heavy-duty industrial and motor control use
Buy the Buy CGS TE Power Resistor Part Number TE80BR33J Online
Discover the high power, flameproof coated power resistor ideal for heavy-duty machinery, electrical equipment, and motor control systems. With a robust wire wound construction, UL94V flameproof coating, and a wide temperature range from -55°C to +155°C, this resistor offers excellent stability, overload capacity, and safety features. Perfect for load testing, dynamic braking, and equipment discharge, it includes standard mounting brackets for quick installation. Ensure durability and performance in demanding industrial environments by ordering this reliable power resistor online today.
Buy CGS TE TE80BR33J power resistor now and experience unmatched reliability and performance for heavy-duty machinery and motor control applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY TE80BR33J?
You can click on the BUY or RFQ button to purchase TE80BR33J from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part TE80BR33J?
You can download the TE80BR33J datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of TE80BR33J?
TE CONNECTIVITY
