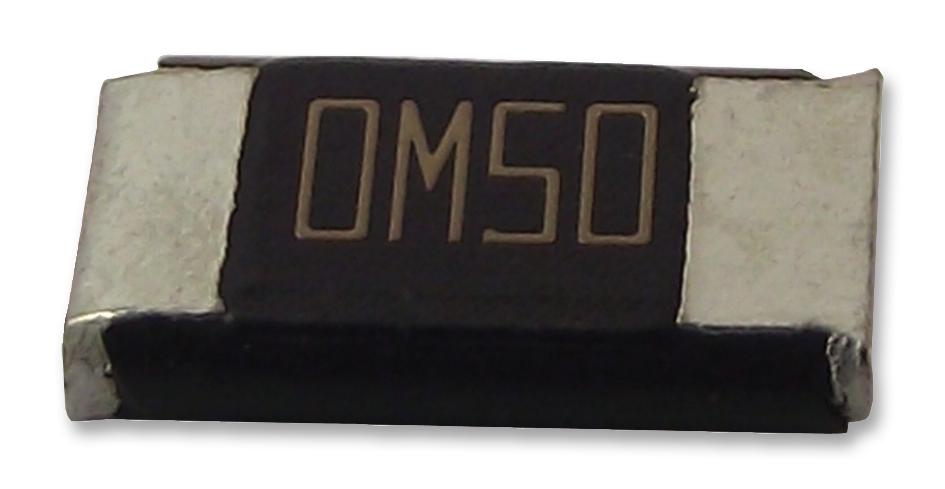

TE CONNECTIVITY TLR2B10DR001FTDG Current Sense Resistor
The TLR Series Low Ohmic Current Sense Resistors by TE Connectivity are high-power, metal chip resistors designed for current sensing applications. Offered in 1206, 2010, and 2512 sizes, they deliver up to 3 Watts at 80°C with a resistance range as low as 0.001 ohms. Manufactured with a special metal resistive element and barrier layers for terminal longevity, these resistors are ideal for automotive, battery management, and low voltage power supplies, providing reliable current detection and low inductance. They are supplied on tape for easy automated placement and feature TCR and resistance tolerance options, supporting precise current sensing in demanding environments.
TE CONNECTIVITY TLR2B10DR001FTDG Current Sense Resistor Specifications:
- Resistance Range: 0.001 ohms to 0.5 ohms
- Power Rating: Up to 3 Watts at 80°C
- Resistance Tolerance: ±3%, ±5%
- TCR (Temperature Coefficient): 50 to 150 ppm/°C depending on model
- Operating Temperature: -55°C to 170°C
- Sizes Available: 1206, 2010, 2512
- Inductance: Specific to size and test conditions
- Mounting: SMD, supplied on tape
- Dimensions: Vary by size, see datasheets
- Suitable for automotive sensing, low voltage power supplies, and battery management
- Resistance values from 0.001 to 0.5 ohms, supporting precise current measurement
- Minimum reel quantity typically 2000 pieces
- Compliance: RoHS compliant, UL listed
Buy the TE Series TLR Current Sense Resistors: TLR2B10DR001FTDG
Purchase the TE TLR Series current sense resistor today for reliable, high-power performance in automotive, power supply, and battery management applications. Designed with advanced metal resistive elements, these resistors offer up to 3 Watts power rating at 80°C and come in multiple sizes like 1206, 2010, and 2512, supporting low ohmic values as low as 0.001 ohms. Supplied on tape for automated assembly, they feature precise resistance tolerances and TCR for accurate current detection, ensuring durability and exceptional performance in demanding environments.
Get TE Series TLR TLR2B10DR001FTDG today—built for precision and long-lasting durability in current sensing.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY TLR2B10DR001FTDG?
You can click on the BUY or RFQ button to purchase TLR2B10DR001FTDG from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part TLR2B10DR001FTDG?
You can download the TLR2B10DR001FTDG datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of TLR2B10DR001FTDG?
TE CONNECTIVITY
