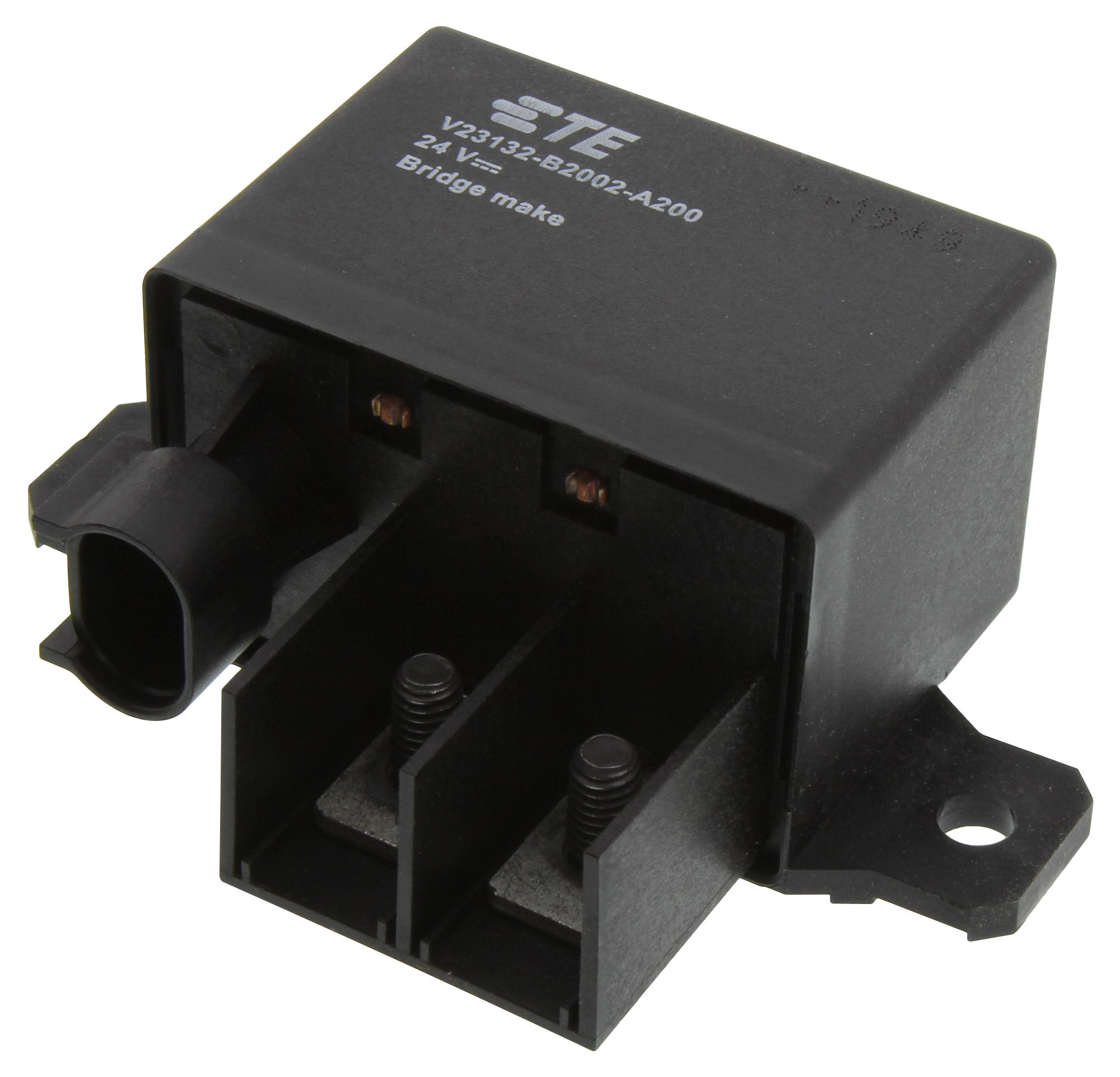

TE CONNECTIVITY V23132B2002A200 High Current Relay
The high current automotive relay is a robust electromechanical component designed to handle currents over 50A, critical for vehicle electrical systems. It features a 24 VDC coil with resistor in parallel for coil suppression, a monostable DC magnetic system, and a contact arrangement of 1 Form X (DM). The relay has screw terminals, AgSnO2 contact base material, and operates within an ambient temperature range of -55°C to +125°C. Compact and reliable, it supports applications demanding high in-rush currents and long-lasting durability for automotive, truck, bus, and off-road vehicles.
TE CONNECTIVITY V23132B2002A200 High Current Relay Specifications:
- Rated Coil Voltage: 24 VDC
- Contact Current Class: >50A
- Contact Arrangement: 1 Form X (DM)
- Coil Suppression: Resistor in Parallel
- Coil Magnetic System: Monostable, DC
- Coil Resistance: 141. Q
- Contact Base Material: AgSnO2
- Contact Limiting Making Current: 300 A
- Contact Limiting Continuous Current: 180A
- Rated Voltage: 1000 Vrms
- Insulation Initial Dielectric Between Contacts and Coil: 1000 Vrms
- Body Weight: 220 g
- Mechanical Attachment: Screw Terminals
- Dimensions: Width 30-40 mm, Height 40 mm, Length 45 mm
- Environmental Temperature Range: -55°C to +125°C
- Certifications: EU RoHS, China RoHS 2, EU ELV, REACH compliant
- Material: Copper contact base, AgSnO2 contacts
- Environmental Protection: Standard automotive ambient conditions
Buy the Buy TE High Current Relay HCR 150 Part Number V23132B2002A200 Online
Order the high current relay designed for automotive applications today. Featuring a 24 VDC coil, >50A contact capacity, and reliable screw terminals, this relay ensures durability and optimal performance in demanding vehicle electrical systems. Its monostable magnetic system, resistor coil suppression, and wide temperature range make it ideal for trucks, buses, and off-road machinery. With environmentally compliant materials and compact dimensions, purchase this high current relay online now for immediate use in your automotive projects, ensuring safety and efficiency in electrical switching.
Get TE High Current Relay HCR 150 today—built for automotive high current switching and long-lasting durability.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY V23132B2002A200?
You can click on the BUY or RFQ button to purchase V23132B2002A200 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part V23132B2002A200?
You can download the V23132B2002A200 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of V23132B2002A200?
TE CONNECTIVITY
