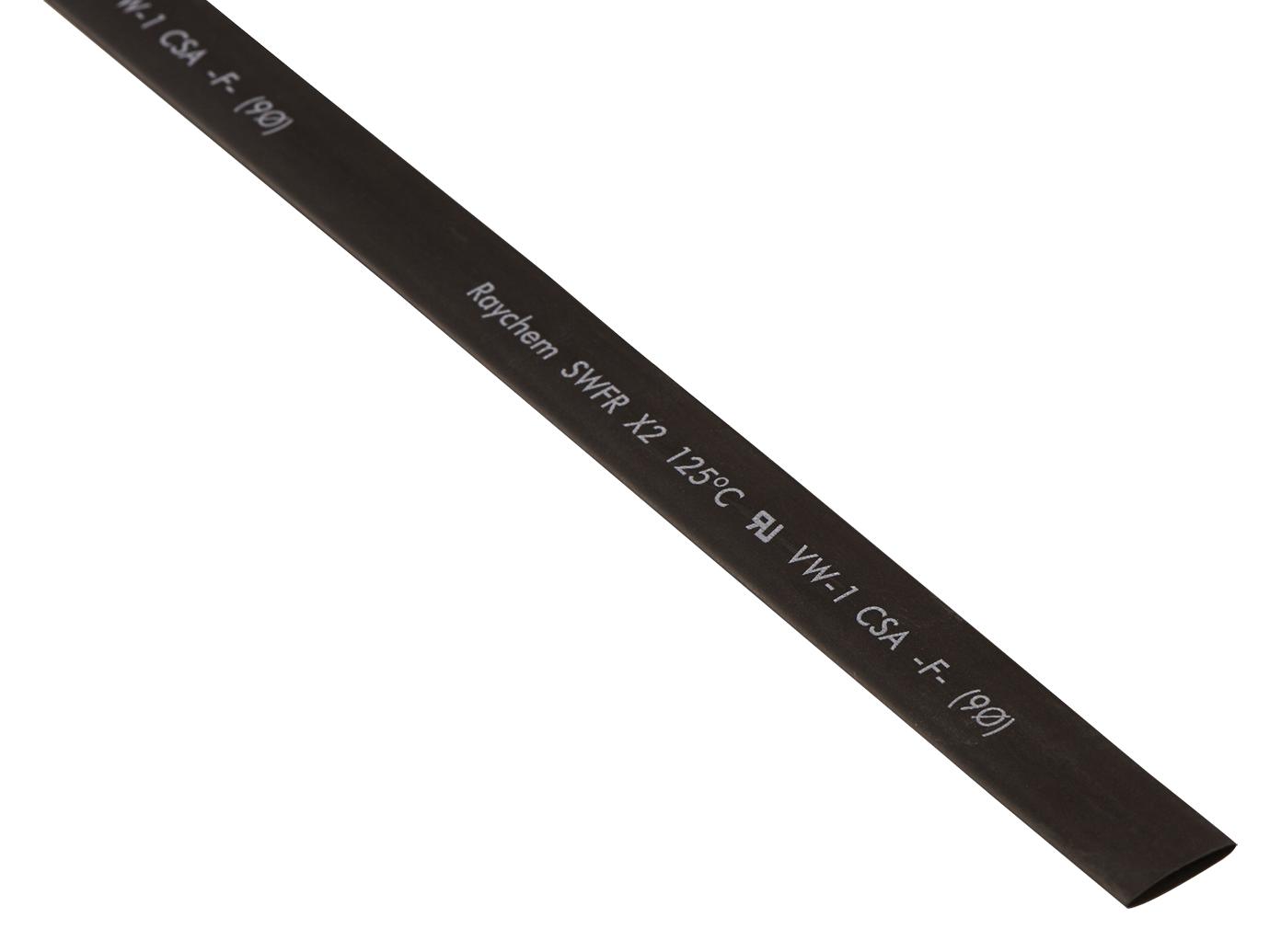

TE CONNECTIVITY X2250SPSM Heat-Shrink Tubing
X2 heat-shrinkable tubing offers exceptional flame retardance, low recovery temperature, and flexible wiring protection suitable for various electrical and industrial applications. Made from crosslinked, halogen-free polyolefin, it provides reliable insulation, environmental safety, and superior physical stability. With a maximum continuous operating temperature of 125°C and a shrink temperature of 70°C, X2 tubing is UL and CSA recognized. Ideal for bundling wires, molding, dip coating, and tape wrapping, ensuring durable, safe, and efficient cable management.
TE CONNECTIVITY X2250SPSM Heat-Shrink Tubing Specifications:
- Minimum shrink temperature: 70°C
- Full recovery temperature: 90°C
- Continuous operating temperature: -30°C to 125°C
- Material: Crosslinked polyolefin
- Flame retardancy: UL VW-1, CSA
- Wall thickness: 0.44 mm (fully recovered)
- Inside diameter: varies from 8.0 mm to 30.0 mm depending on size
- Dimensions: D (millimeters) range from 8.0 to 30.0, Wall d(max) 0.56 mm to 0.89 mm
- Packaging: On spools
- Color: Black
Buy the Raychem Series SWFR X2 Flame-Retardant Heat-Shrink Tubing: X2250SPSM
Purchase the Raychem X2250SPSM heat-shrink tubing online today for reliable insulation, flame retardance, and environmental safety. This high-quality, halogen-free tubing is ideal for industrial, electrical, and wiring applications. It provides excellent flexibility, high thermal stability, and durable physical properties. Perfect for bundling wires, molding, dip coating, and tape wrapping, ensuring long-lasting protection and insulation. Order now to enjoy fast delivery, competitive prices, and the confidence of using UL-recognized wiring solutions.
Get Raychem X2250SPSM today—built for flame resistance, flexibility, and long-lasting electrical insulation.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY X2250SPSM?
You can click on the BUY or RFQ button to purchase X2250SPSM from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part X2250SPSM?
You can download the X2250SPSM datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of X2250SPSM?
TE CONNECTIVITY
