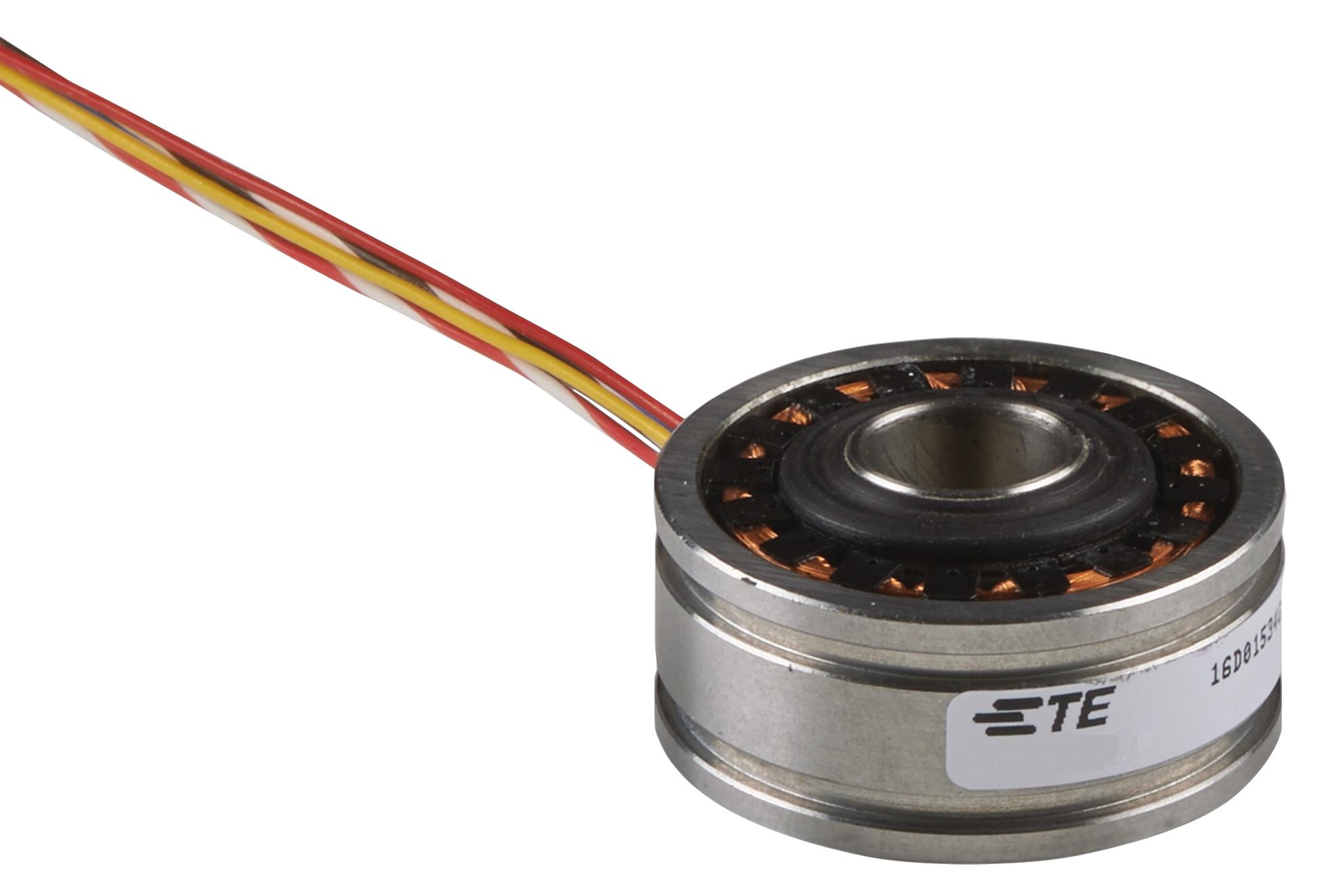

TE CONNECTIVITY V23401S1001B110 Hollow Shaft Resolver
The V23401S1001B110 hollow shaft resolver by TE Connectivity is designed for precise rotary position sensing in industrial applications. It features a 9.52 mm inner shaft diameter, operates at a nominal voltage of 7 V (range 2V to 8V), and offers high reliability with 100% end-of-line testing. This resolver provides an angular error of only 6 arc minutes, and an additional transformation ratio of 0.5 with a tolerance of ±6.3%. It is capable of withstanding up to 20,000 RPM rotational speed, shock resistance of 1000 m/s², and operates in temperature ranges from -55°C to 150°C, ensuring durability in harsh environments.
TE CONNECTIVITY V23401S1001B110 Hollow Shaft Resolver Specifications:
- Size: Shaft inner diameter 9.52 mm
- Speed: Max rotational speed 20,000 rpm
- Electrical Parameters: Nominal voltage 7V, range 2V to 8V, resistance R1R2 82Ω, S1S3 S2S4 68Ω
- Frequency: 10 kHz nominal, 4kHz to 20kHz operating range
- Angular Error: 6 arc minutes
- Residual Voltage: Max 25 mV
- Isolation Voltage: 500 Vac, 3%, tested for 1 second
- Temperature Range: -55°C to 150°C
- Shock Resistance: 1000 m/s²
- Vibration: 200 m/s² (0-2kHz)
- Connector: 470 mm long Teflon insulated wires, 26 AWG
- Inertia: Approx. 20 g·cm²
- Transformation Ratio: 0.5 with ±6.3% tolerance
- Phase Shift: Min -2°, Max 8°
- Test Protocol: 100% end-of-line testing
- Application: Rotary position sensing for industrial automation
- Mounting: Hollow shaft design suitable for precise applications
Buy the TE Series Resolver: V23401S1001B110
Experience precise rotary position sensing with the TE Connectivity hollow shaft resolver, designed with a 9.52 mm shaft diameter and capable of 20,000 rpm. This high-quality device features a 7V nominal voltage, low angular error, and withstands harsh industrial environments with shock resistance up to 1000 m/s² and temperature tolerance from -55°C to 150°C. Perfect for automation and motion control, it ensures accurate operation and reliability in demanding applications. Easy to integrate with a durable Teflon insulated wiring system.
Get TE Connectivity V23401S1001B110 today—built for maximum precision, durability, and reliable industrial rotary position sensing.
