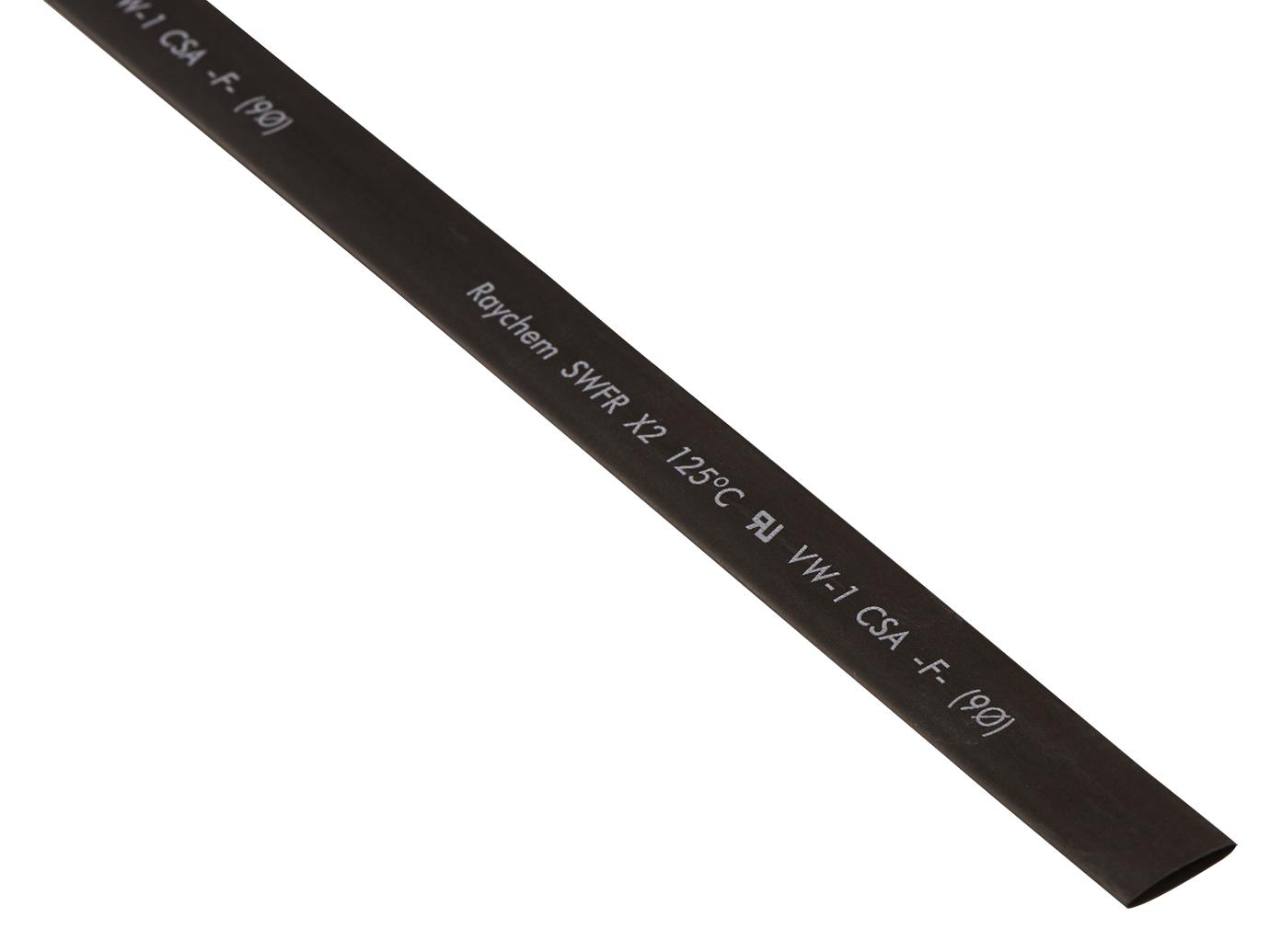

TE CONNECTIVITY X2100SPSM Heat-shrink tubing
X2 heat-shrinkable tubing by TE RAYCHEM offers an environmentally friendly, flame-retardant, halogen-free insulation solution with high thermal stability and physical abuse resistance. Designed for insulation and protection of electrical wires, the tubing withstands up to 125°C continuous operating temperature. It features fast recovery, excellent flexibility, and quick installation options such as molding, dip coating, and tape wrapping. Suitable for long-term reliability in commercial and industrial wiring applications, it is UL-recognized and CSA-certified, ensuring safety and compliance.
TE CONNECTIVITY X2100SPSM Heat-shrink tubing Specifications:
- Minimum shrink temperature: 70°C
- Full recovery temperature: 90°C
- Continuous operating temperature: —30°C to 125°C
- Inside diameter (nominal): 1.0 mm to 30.0 mm
- Wall thickness (fully recovered): 0.56 mm to 0.89 mm
- Wall thickness (as supplied): 0.25 mm to 0.35 mm
- Material: Crosslinked polyolefin
- Flame-retardant: VW-1, UL 94V-0
- Certification: UL recognized, CSA certified
- Color: Standard black
- Packaging: On spools
- Dimensions vary by size, with specific measurements for inside diameter, wall thickness, and recovery temperature as per model
Buy the TE RAYCHEM Series X2 Heat-Shrink Tubing: X2100SPSM
Purchase TE RAYCHEM Series X2 heat-shrink tubing online to benefit from high flame-retardant, environmentally friendly insulation solutions that ensure long-term electrical reliability. This tubing is halogen-free, UL-recognized, and CSA-certified, designed for fast, easy installation with molding, dip coating, and tape wrapping. It delivers excellent thermal stability, flexibility, and physical abuse resistance with a continuous operating range from -30°C to 125°C. Its various sizes and dimensions provide versatile protection for electrical components in industrial and commercial wiring applications. Order now for quick delivery and dependable performance.
Order your TE RAYCHEM Series X2 heat-shrink tubing today and ensure reliable, flame-retardant insulation for your electrical wiring projects.
