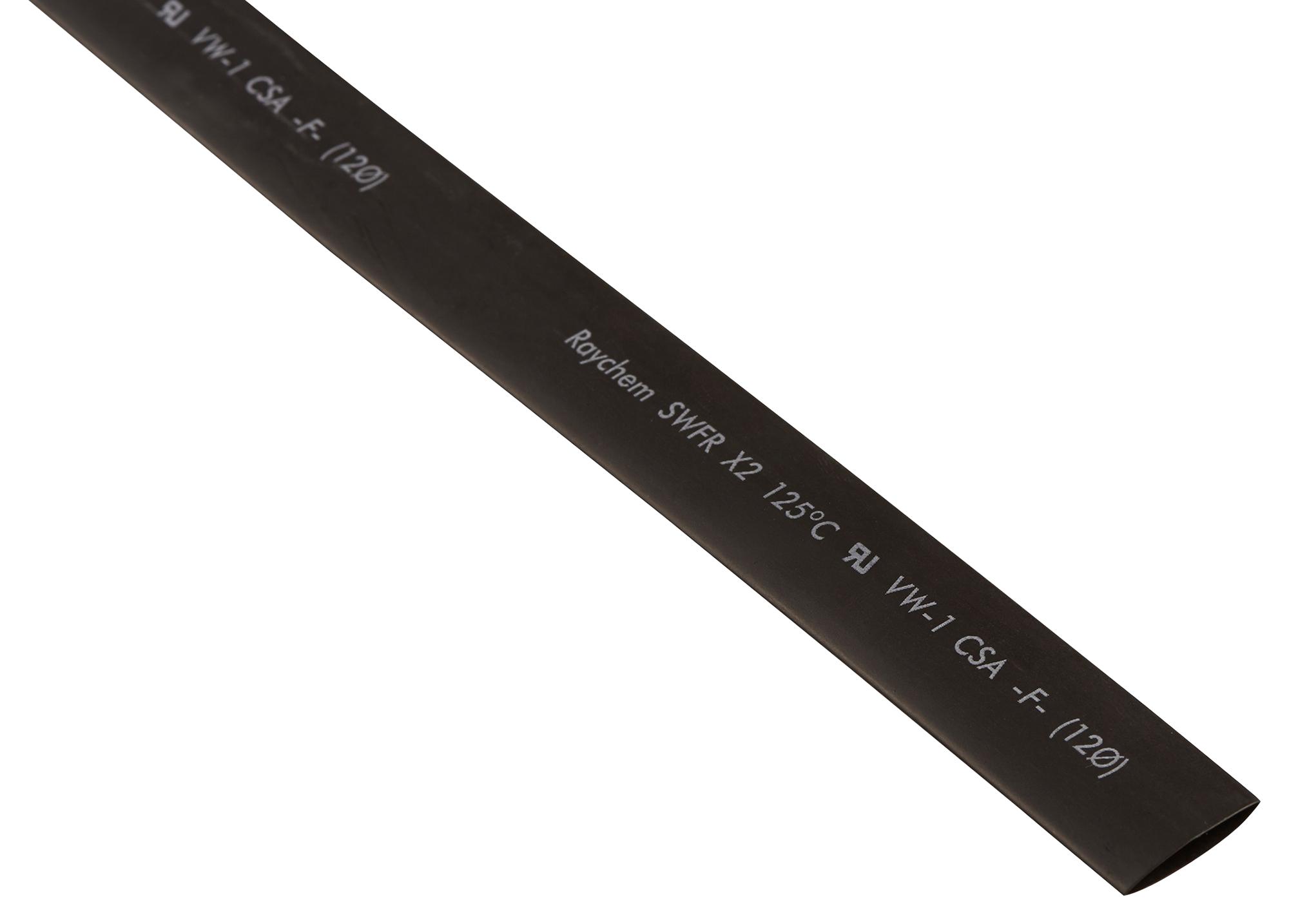

TE CONNECTIVITY X22000FSPSM heat-shrink tubing
X2 heat-shrinkable tubing offers a highly flame-retardant, environmentally friendly, and cost-effective solution for electrical insulation and wire protection. Made from specially formulated, crosslinked polyolefin, it features low recovery temperature, excellent flexibility, and high thermal stability. Suitable for long-term reliability, this tubing is UL-recognized and CSA-certified. It provides fast, easy application, bundles wires for flexible harnessing, and withstands continuous temperatures from -30°C to 125°C. Ideal for electrical splices, disconnect terminals, and wrapping, it ensures safety and durability in industrial and commercial wiring projects.
TE CONNECTIVITY X22000FSPSM heat-shrink tubing Specifications:
- Minimum shrink temperature: 70°C
- Full recovery temperature: 90°C
- Continuous operating temperature: -30°C to 125°C
- Material: Crosslinked polyolefin
- Color: Black
- Wall thickness (fully recovered): 0.44 mm to 0.56 mm depending on size
- Inside diameter as supplied: from 15 mm to 35 mm
- Dimensions (nominal): D 15 mm to 35 mm
- Wall thickness (nominal): 0.5 mm to 0.75 mm
- UL recognition: 35586
- CSA certification: LR31929
- Packaging: On spools
- Application temperature range: -30°C to 125°C
- Flame-retardant: VW-1, CSA OFT rated
- Environmentally friendly, halogen-free
Buy the Buy Raychem SWFR X2 Part Number X22000FSPSM Online
Get your Raychem SWFR X2 flame-retardant, flexible heat-shrink tubing today online. Perfect for electrical insulation, wire bundling, and long-term reliability. Made from crosslinked polyolefin, it offers excellent thermal stability and is UL-recognized and CSA-certified. Easy to use, with fast recovery at 90°C and operating temp up to 125°C, this tubing ensures safe, durable wiring in industrial or commercial applications. Order now for efficient project execution and professional-grade insulation protection.
Order your Raychem SWFR X2 tubing today and ensure reliable, flame-retardant insulation for your electrical projects with quick, easy installation.
