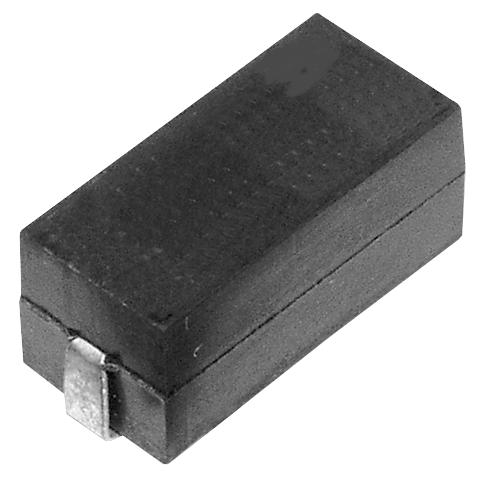

TE CONNECTIVITY SMW513RJT Power Resistor
The Surface Mount Power Resistor Series by TE Connectivity offers high reliability with low profile design, flameproof coating, and flexible copper terminations for durable solder joints. Available in 2, 3, or 5 Watts, these resistors withstand high temperatures during manufacturing processes like reflow and IR without degradation. Suitable for power circuitry, they feature various resistance values, tolerance options, and robust environmental characteristics such as resistance to humidity and soldering heat. Ideal for compact, high-performance electronic power applications with reliable wire or metal film options.
TE CONNECTIVITY SMW513RJT Power Resistor Specifications:
- Power Ratings: 2W, 3W, 5W at 25°C
- Resistance Range: 10Ω to 2MΩ (E24 grid)
- Resistance Tolerance: 1% or 5%
- Max Operating Voltage: 300V (SM_2), 500V (SM_3 and SM_5)
- Temperature Coefficient of Resistance: ±100 to ±200 ppm/°C
- Short Time Overload: 5 times rated wattage for 5 seconds
- Load Life: 1000 hours at 70°C with ±2% resistance change
- Humidity Load Life: 500 hours at 40°C, 90-95% RH with ±2% resistance change
- Insulation Resistance: ≥10,000 MΩ at 500VDC
- Resistance to Soldering Heat: 270°C for 10 seconds
- Dimensions: Lengths vary (SM_2: 40mm, SM_3: 55mm, SM_5: 73mm), widths around 17mm, and other size details
Buy the Buy TE Connectivity Power Resistor Part Number SMW513RJT Online
Enhance your electronic projects with the TE Power Resistor Series SMW513RJT. Designed for high performance, these resistors feature low profile cases, flameproof coating, and excellent temperature stability. Available in 2, 3, and 5 Watts, they suit power circuitry demanding robust construction and reliable solder joints. With resistance values from 10Ω to 2MΩ, tolerance options, and environmental resilience including humidity and heat resistance, they provide dependable solutions for compact, high-demand power applications. Purchase online now for quick delivery and trusted quality.
Order your TE SeriesSMW513RJT power resistor today and ensure your power circuitry benefits from high reliability and thermal stability.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY SMW513RJT?
You can click on the BUY or RFQ button to purchase SMW513RJT from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part SMW513RJT?
You can download the SMW513RJT datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of SMW513RJT?
TE CONNECTIVITY
