TE CONNECTIVITY X23000FSPSM heat-shrink tubing

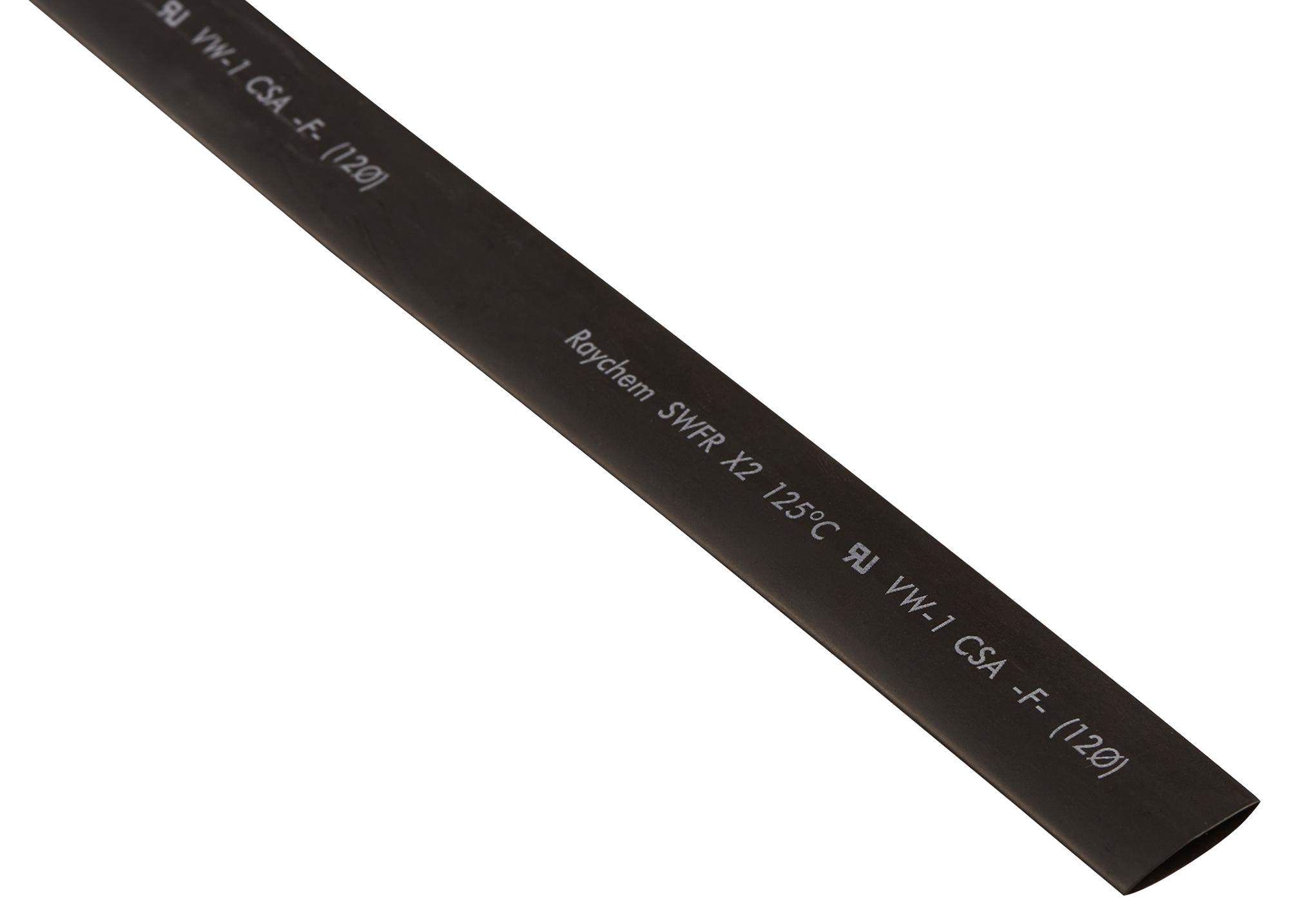

X2 heat-shrinkable tubing offers a highly flame-retardant, halogen-free, and environmentally friendly solution for insulating and protecting electrical connections. Made from a crosslinked polyolefin material, it exhibits excellent thermal stability, flexibility, and physical abuse resistance. Suitable for long-term reliability in commercial applications, X2 tubing has UL recognition and CSA certification at 125°C, 600V. It features fast installation, with a minimum shrink temperature of 70°C and full recovery at 90°C, providing a versatile, cost-effective solution for wire harnessing, splicing, and molding in various industrial and electrical systems.
TE CONNECTIVITY X23000FSPSM heat-shrink tubing Specifications:
- Minimum Shrink Temperature: 70°C
- Full Recovery Temperature: 90°C
- Continuous Operating Temperature: -30°C to 125°C
- Wall Thickness: Inside thickness varies from 0.25 mm to 0.45 mm depending on size, with fully recovered diameters from 0.44 mm to 0.89 mm
- Dimensions: Inside diameter ranges from 2.0 mm to 35.0 mm when supplied, with wall thickness up to 0.56 mm
- Material: Crosslinked polyolefin with flame-retardant, halogen-free formulation
- Certification: UL Recognized, CSA Certified at 125°C, 600V
- Packaging: Spools
- Color: Standard black
Buy the Buy Raychem SWFR X2 Part Number X23000FSPSM Online
Acquire the versatile Raychem SWFR X2 heat-shrinkable tubing online today for your electrical insulation needs. This flame-retardant, halogen-free tubing offers excellent flexibility, thermal stability, and physical abuse resistance. It is UL recognized and CSA certified at 125°C, 600V, making it suitable for a wide range of industrial, commercial, and electrical applications. Easy to install, with a minimum shrink temperature of 70°C and full recovery at 90°C, it provides a cost-effective, reliable solution for wire harnessing, splicing, and insulation in demanding environments.
Order your Raychem Series SWFR X2 heat-shrink tubing today and secure reliable electrical insulation with fast, easy installation and flame-retardant protection.
