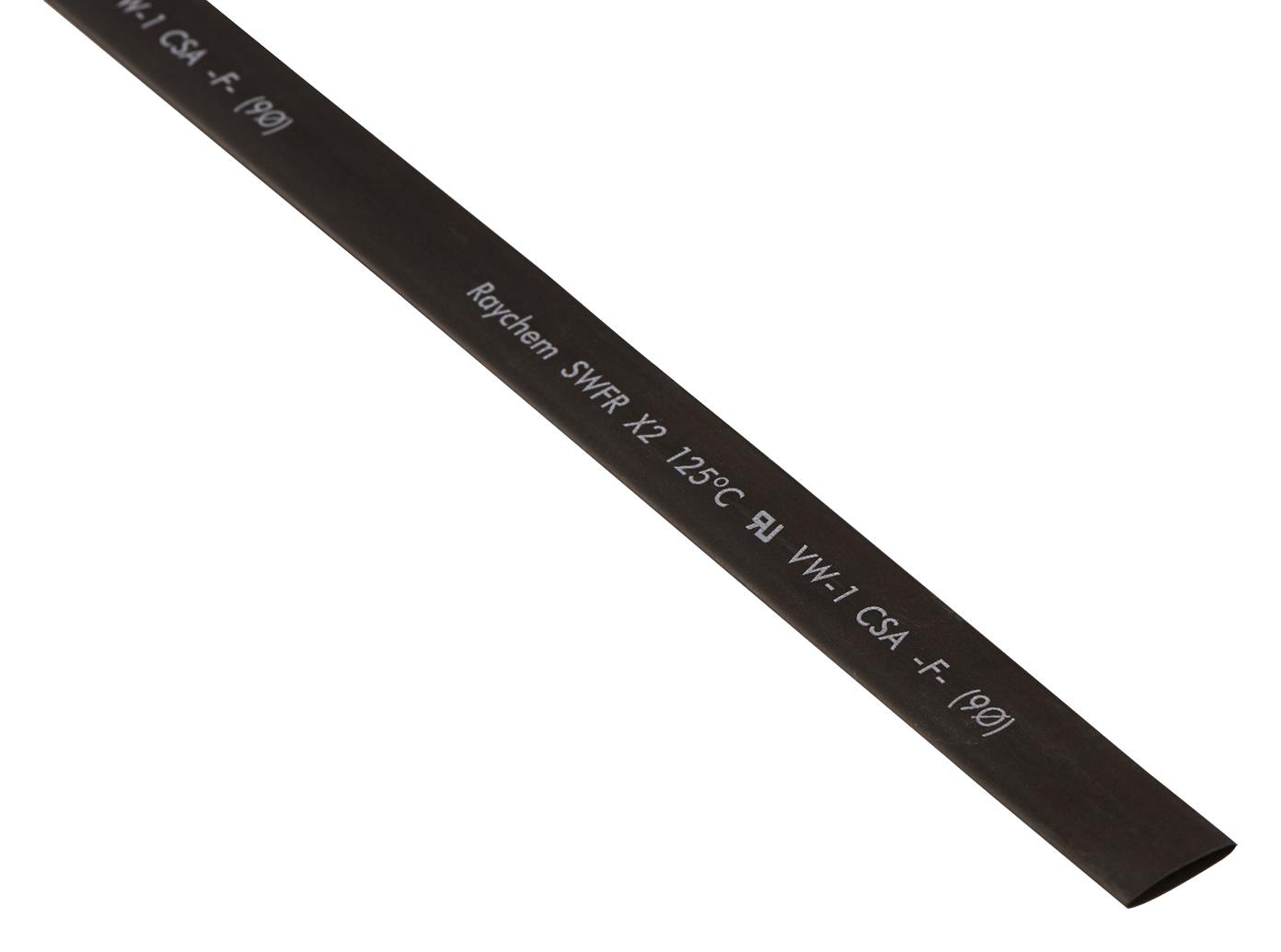

TE CONNECTIVITY X2800FSPSM Heat-shrink tubing
X2 heat-shrinkable tubing by Raychem offers a highly flame-retardant, halogen-free, and environmentally friendly solution for electrical insulation and wire management. Designed for commercial applications, this tubing withstands high temperatures with a full recovery temperature of 90°C and a continuous operating range from -30°C to 125°C. It provides excellent physical stability, flexibility, and robust electrical insulation. Ideal for bundling wires, splices, and components, X2 tubing is UL-recognized and CSA-certified, ensuring high reliability and safety in demanding environments.
TE CONNECTIVITY X2800FSPSM Heat-shrink tubing Specifications:
- Minimum shrink temperature: 70°C
- Full recovery temperature: 90°C
- Continuous operating temperature: -30°C to 125°C
- Dimensions (millimeters): Inside diameter from 1.0 mm to 35 mm, wall thickness 0.25 mm to 0.56 mm fully recovered
- Wall thickness varies with size, wall thickness less if recovery is restricted
- Color: Standard black
- Material: Crosslinked polyolefin
- UL Recognition: 35586
- CSA Certification: LR31929
- Packaging: Spools
- Markings: UL, CSA, Japan -F- mark
Buy the Buy Raychem X2 Heat-Shrinkable Tubing Part Number X2800FSPSM Online
Purchase Raychem X2 heat-shrink tubing online for a high-performance, flame-retardant, halogen-free insulation solution. Designed for electrical wiring, it withstands temperatures up to 125°C and features UL and CSA certifications for safety and reliability. The tubing provides excellent flexibility, physical stability, and ease of use for bundling wires, splices, and components. Available in standard black color on spools, X2 tubing ensures long-lasting insulation, quick application, and expansion over various sizes with minimal wall thickness reduction during recovery. Order now for superior electrical protection and environmental friendliness.
Get Raychem X2 heat-shrinkable tubing today—built for reliable insulation and quick installation in demanding electrical environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY X2800FSPSM?
You can click on the BUY or RFQ button to purchase X2800FSPSM from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part X2800FSPSM?
You can download the X2800FSPSM datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of X2800FSPSM?
TE CONNECTIVITY
