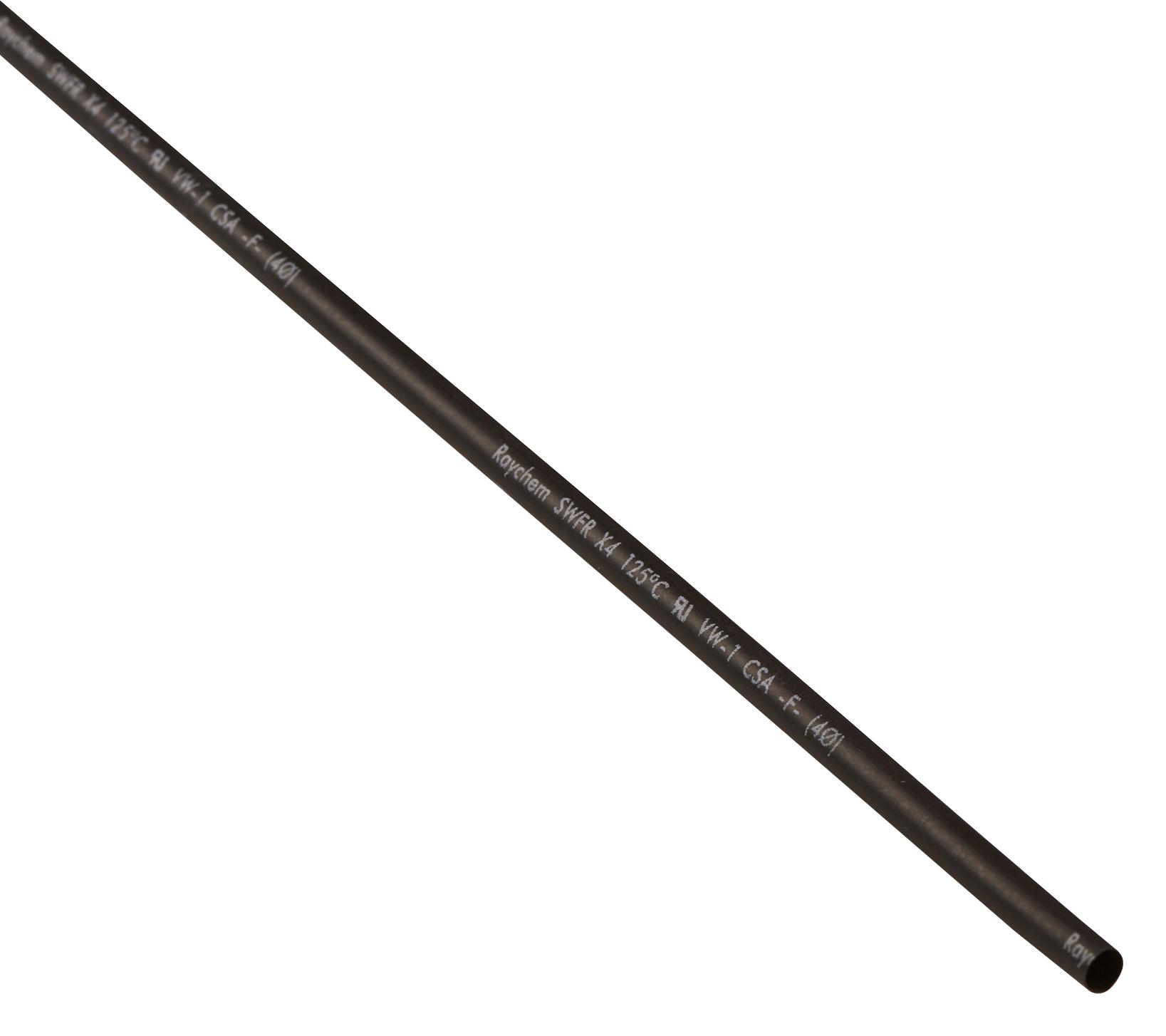

TE CONNECTIVITY X4080SPSM heat-shrinkable tubing
SWFR X4 heat-shrinkable tubing is a very-thin-wall, flame-retardant, halogen-free polyolefin designed for space-saving and swift application in electrical insulation. Suitable for protecting sensitive components, it shrinks rapidly at 90°C with a full recovery at 125°C, operating continuously between -30°C and 125°C. Selected for its excellent flame resistance (UL VW-1, CSA) and environmental friendliness, this tubing is ideal for commercial, industrial, and electronic wiring applications requiring high flexibility and safety in various environments.
TE CONNECTIVITY X4080SPSM heat-shrinkable tubing Specifications:
- Minimum shrink temperature: 70°C
- Full recovery temperature: 90°C
- Continuous operating temperature: -30°C to 125°C
- Inside diameter: 0.954 mm to 3.8 mm (nominal)
- Wall thickness: 0.1 mm to 0.25 mm (before shrink)
- Fully recovered inside wall thickness: 0.15 mm
- Max inside diameter after recovery: 4.4 mm to 6.4 mm
- Material: Specially formulated polyolefin
- Flammability ratings: UL VW-1, CSA-certified
- Packaging: On spools, marked with UL, CSA, Japan certifications
- Color: Standard black
- Maximum shrink speed: More than twice as fast as standard tubings at 125°C
Buy the Raychem X4080SPSM – Reliable Heat-Shrinkable Tubing for Industrial Applications
Order Raychem X4080SPSM heat-shrinkable tubing online today and ensure high-quality electrical insulation with fast shrinkage and excellent flame-resistant properties. This halogen-free, UL and CSA recognized tubing is perfect for protecting sensitive components in space-constrained environments. Its flexible, very-thin-wall design offers rapid recovery at 90°C and full insulation at 125°C, suitable for a wide temperature range from -30°C to 125°C. Packaged on spools, marked with certification labels, it provides a safe, reliable solution for your electrical and electronic projects.
Buy Raychem X4080SPSM heat-shrinkable tubing now and experience unmatched reliability and rapid application for industrial and electrical insulation needs.
