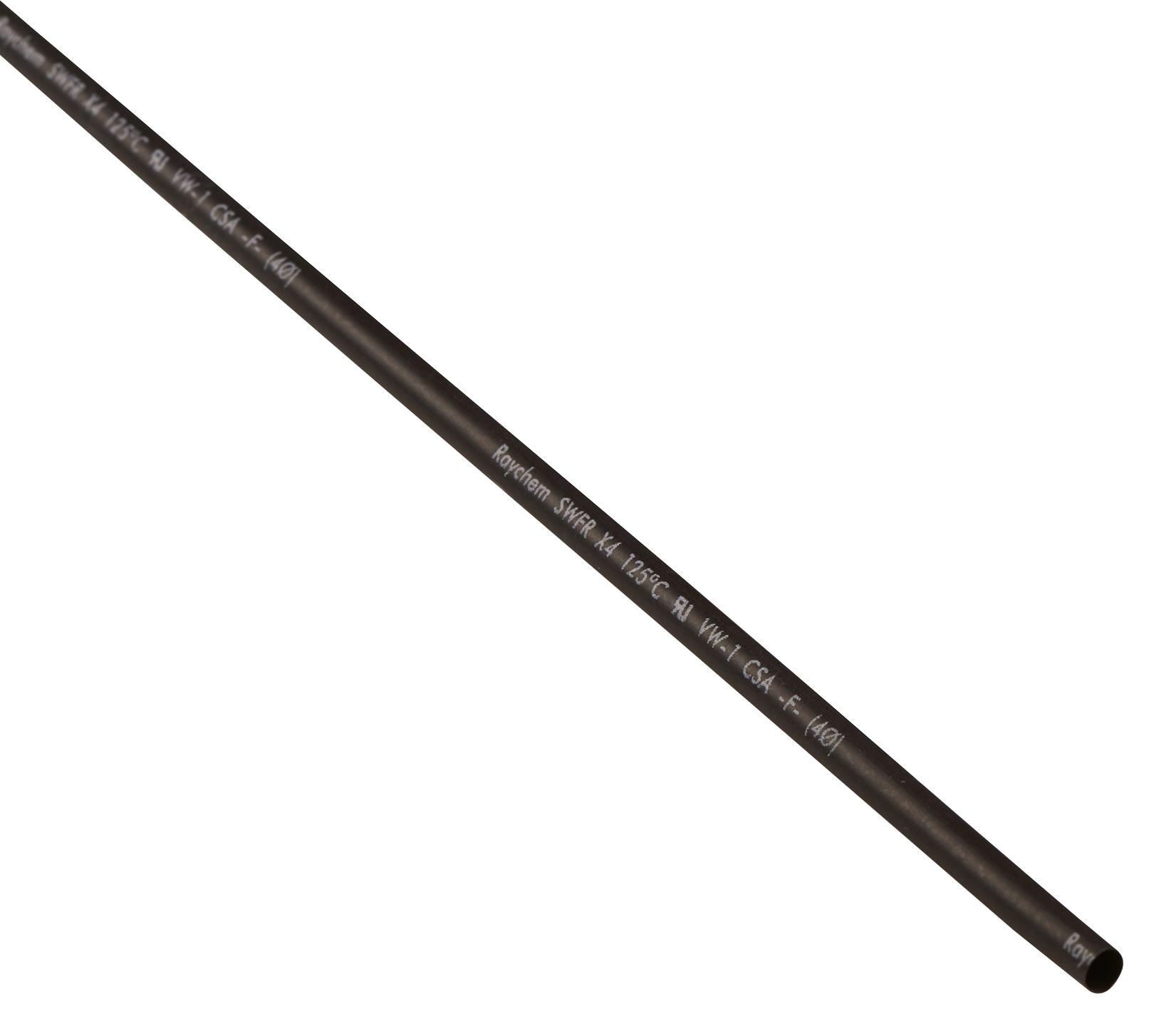

TE CONNECTIVITY X4100SPSM Heat-shrink tubing
SWFR X4 heat-shrinkable tubing is a very-thin-wall, flame-retardant, halogen-free polyolefin designed for space-saving applications. It shrinks rapidly at 70°C minimum and fully recovers at 90°C, with a continuous operating range of -30°C to 125°C. Suitable for wiring, insulation, and protection of electronic components, SWFR X4 offers excellent flexibility and flame retardancy ratings UL VW-1 and CSA. Packaged on spools, it is ideal for cost-effective, environmentally friendly, and high-performance electrical insulation needs.
TE CONNECTIVITY X4100SPSM Heat-shrink tubing Specifications:
- Minimum shrink temperature: 70°C
- Full recovery temperature: 90°C
- Continuous operating temperature: -30°C to 125°C
- Inside diameter (nominal): 0.954 mm to 3.8 mm
- Wall thickness (max): 0.25 mm
- Wall thickness after recovery: approximately 0.15 mm
- Material: Specially formulated polyolefin
- Color: Standard black
- UL Recognition: VW-1
- CSA Certification: CSA certified at 125°C, 300 V
- Packaging: Spools
Buy the Raychem Series SWFR X4 Heat-Shrinkable Tubing: X4100SPSM
Secure your electrical and electronic insulation needs with Raychem SWFR X4 heat-shrink tubing, offering rapid shrinking, excellent flame retardancy, and space-saving, halogen-free protection for a wide range of wiring, insulation, and component applications. Its flexible design ensures ease of use across various sizes, with UL VW-1 and CSA certifications guaranteeing safety and compliance. Available on convenient spools, this tubing is the smart choice for industry professionals seeking reliable, environmentally friendly, and professional-grade heat-shrinkable tubing for demanding environments.
Get Raychem SWFR X4 heat-shrink tubing today—designed for rapid, flame-retardant insulation in compact electronic applications.
