TRACO POWER TEN 3-2410WI Datasheet & Stock

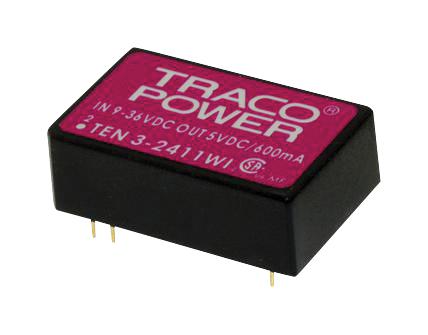

The TEN 3WI series from Tracopower are 3W single/dual output DC to DC converters in 24 pin DIP package. These converters have wide 4:1 input range. Other features include indefinite, automatic recovery short circuit protection, current limitation and internal filtering according to EN 55022-A and FCC, level A. Typical applications for these converters are battery operated equipment, distributed power architectures in communication, instrumentation, industrial electronics and everywhere where isolated, tightly regulated voltages are required.




Nominal input voltage : 24VDC/48VDC

Output voltage : 3.3VDC/5VDC/12VDC/15VDC/±12VDC/±15VDC

Maximum output current : 750mA/600mA/250mA/200mA/±125mA/±100mA

High efficiency up to 84% allows an operating temperature range of -40°C to +70°C at full load

PWM switching frequency is 350KHz typical

I/O isolation voltage (60sec) is 1500VDC

I/O isolation capacitance is 380pF typical, I/O isolation resistance (500VDC) is >1000Mohm

Ripple and noise (20MHz bandwidth) is 75mVpk-pk maximum

Approved by cUL/UL 60950-1, IEC/EN 60950-1 safety standards

Dimension is 20.3mm x 10.2mm x 31.8mm (W x H x D), 3-year product warranty
