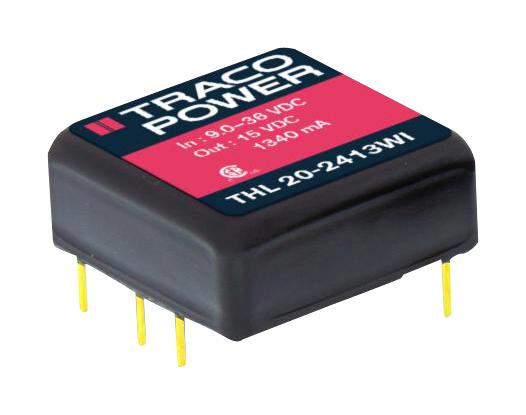

TRACO POWER THL202413WI DC-DC Converter
The THL 20WI series from Traco Power consists of 20W single and dual output DC/DC converters known for high power density. Encased in a durable metal housing measuring approximately 1.0" x 1.0" x 0.4" (W x D x H), these converters feature an ultra-wide 4:1 input voltage range and precisely regulated output voltages. They achieve efficiencies of up to 90%, making them highly reliable for applications in temperature environments from -40°C to +75°C, with optional operation up to +85°C when equipped with a heat sink. Suitable for mobile equipment, instrumentation, distributed power systems in communication and industrial electronics, they are ideal where space on the PCB is limited. The series includes output current limitation and automatic, indefinite short circuit protection. Key specifications include input voltages of 24VDC or 48VDC, various output voltages (3.3V, 5V, 12V, 15V, 24V, ±12V, ±15V), and maximum output currents ranging from 835mA to 4.5A. Features also include remote on/off control, 1500VDC isolation voltage, high isolation resistance, low ripple and noise, fixed switching frequency of 330kHz, and compliance with safety standards such as UL, IEC, and CAN/CSA. The product is protected with a shielded metal case and isolated baseplate, backed by a 3-year warranty.
TRACO POWER THL202413WI DC-DC Converter Specifications:
- Power Output: 20W
- Input Voltage Range: 12VDC to 75VDC (ultra-wide 4:1 range)
- Output Voltages: 3.3V, 5V, 12V, 15V, 24V, ±12V, ±15V
- Output Current: 835mA to 4.5A depending on model
- Efficiency: Up to 90%
- Isolation Voltage: 1500 VDC (input/output)
- Operating Temperature: -40°C to +75°C, up to +85°C with heat sink
- Ripple & Noise: 75–150 mVp-p depending on model
- Switching Frequency: 330 kHz
- Dimensions: 1.0" x 1.0" x 0.4" (W x D x H)
- Case Material: Aluminium alloy
- Soldering Temp: 260°C / 10 s max.
- Certifications: UL, IEC, CSA, RoHS
- Protection: Short circuit, overload, overvoltage
- Isolation Resistance: >1000 MΩ
- Humidity: Up to 95% non-condensing
- Weight: 15 g
Buy the Traco Power THL202413WI – Reliable High-Density DC-DC Converter for Industrial Applications
Purchase the Traco Power THL 20W series DC/DC converter online today and ensure reliable, efficient power conversion for your industrial and communication equipment. Compact, with high efficiency up to 90%, and featuring ultra-wide input voltages, these converters guarantee optimal performance even in limited space environments. Enjoy remote ON/OFF control, high isolation voltage, and robust protection features, backed by a 3-year warranty. Ideal for mobile devices, instrumentation, and distributed power systems, order now for fast delivery and dependable operation.
Get Traco Power THL202413WI today—built for precision, high efficiency, and space-critical industrial electronics.
Frequently Asked Questions
Where can I buy TRACO POWER THL202413WI?
You can click on the BUY or RFQ button to purchase THL202413WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THL202413WI?
You can download the THL202413WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THL202413WI?
TRACO POWER
