TRIAD MAGNETICS CST2063A Current Sense Transformer

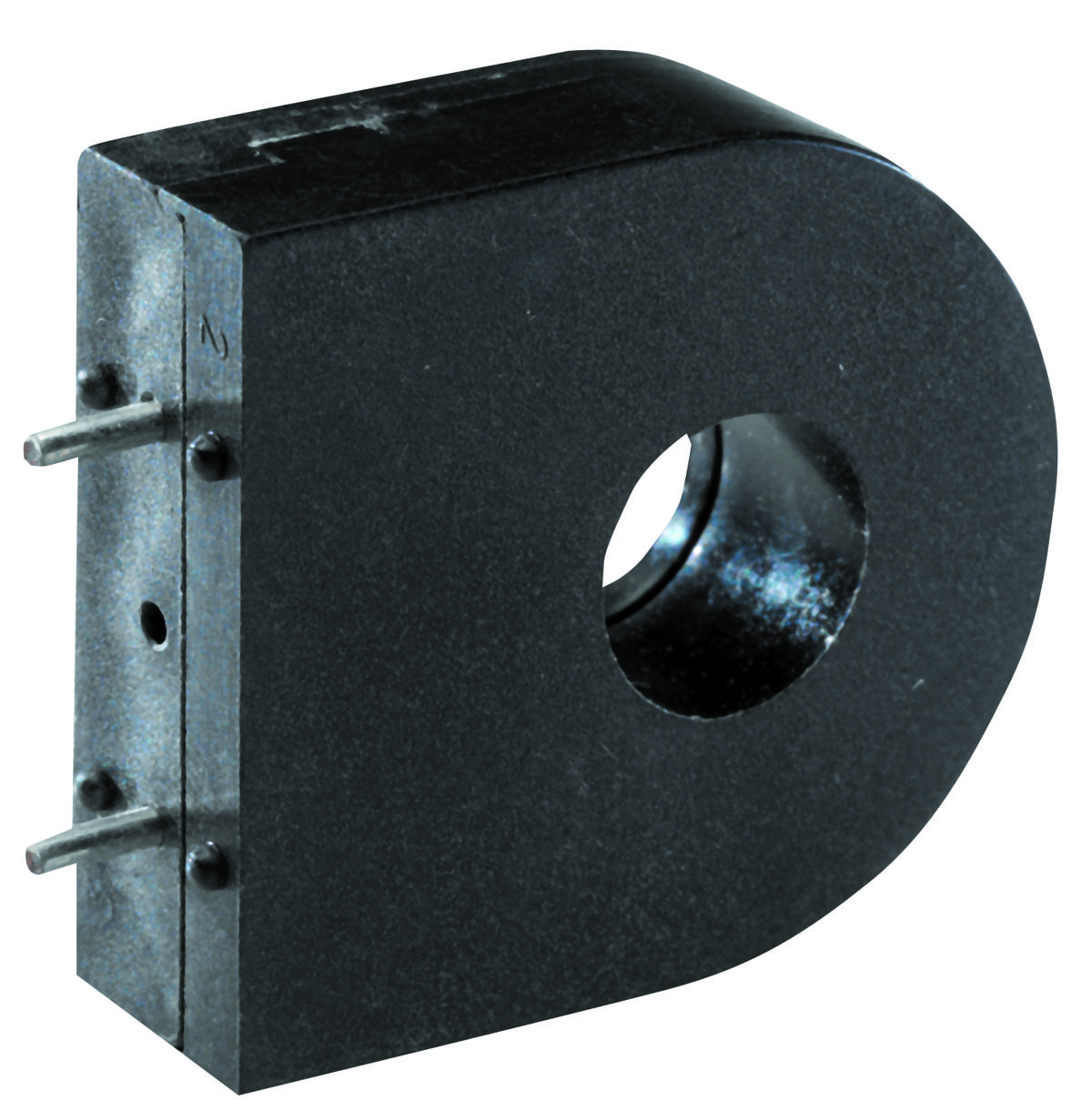

The Triad Magnetics CST206-3A current sense transformer is specifically engineered for use in switching power supply systems. Its primary function is to accurately detect the current flowing through a conductor, providing valuable data for power management and control. Operating within a frequency range of 20 kHz to 200 kHz, this transformer ensures efficient and reliable performance. Constructed with UL-rated 130°C materials, the CST206-3A guarantees durability and safety. Derating is required for higher frequencies and unidirectional operation. The transformer's design incorporates a primary winding inserted through a hole in the casting, and polarity is indicated on the case.
TRIAD MAGNETICS CST2063A Current Sense Transformer Specifications:
- ET VµSEC Ref 20kHz: 6000
- Turns Count: 300
- Min Ind mH: 130.0
- DCR Max Ω: 12.40
- Pri Amps: 70.0 RMS
- A Min: 0.360
- B Max: 1.225
- C Ref: 0.700
- D Ref: 0.127
- E Ref: 0.500
- F Max: 0.400
- G Max: 1.075
- H Dia Pins: 0.045
- Frequency Range: 20 kHz - 200 kHz
- Material Rating: 130°C
- Derating 50kHz: 32%
- Derating 100kHz: 52%
- Derating Unidirectional: 50%
- Temp Rise: Approximately 40°C
- Terminating Resistance: 1 ohm per turn
