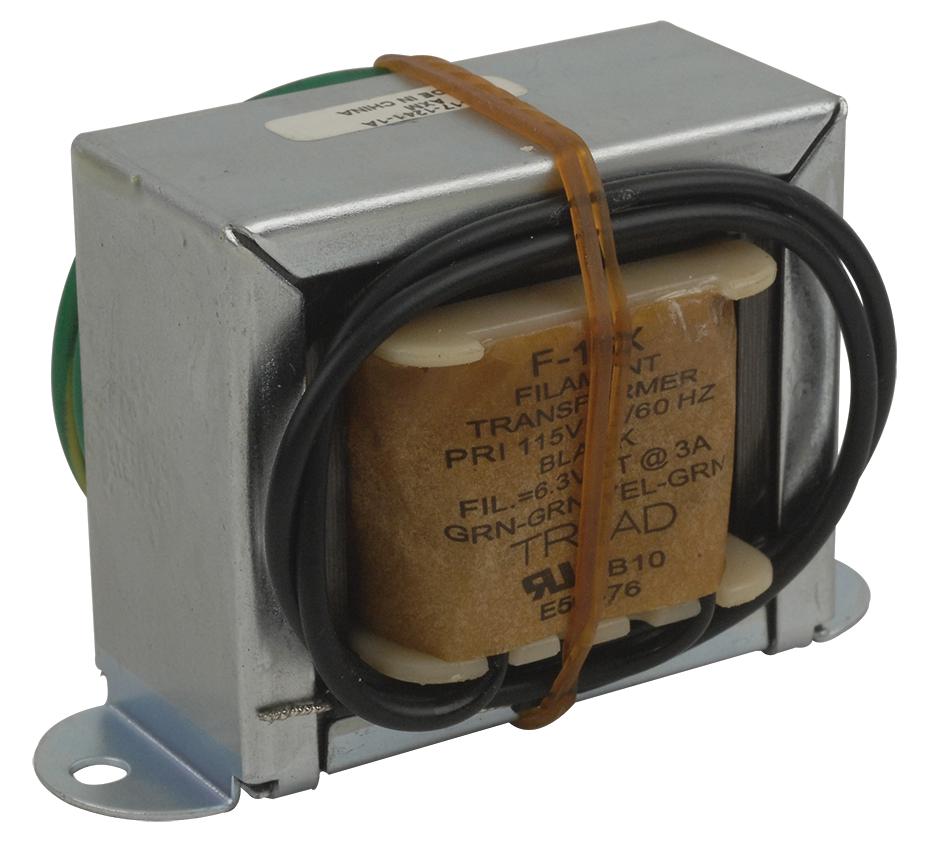

TRIAD MAGNETICS F16X Power Transformer
The F-16X is a chassis-mount power transformer designed for industrial and power management applications. It features a primary voltage of 115V at 50/60Hz and a 6.3V center-tapped secondary rated at 3A. The transformer is suitable for direct use in power supply circuits or as part of transformer, rectifier, or filter setups. Additional secondary voltages are available, including control, filament, and low-level signaling options in standard values. It has a single primary and a single secondary coil, with a compact size and standard weight for easy integration.
TRIAD MAGNETICS F16X Power Transformer Specifications:
- Maximum Power: 18.9 VA
- Primary Voltage: 115V 50/60 Hz
- Secondary Voltage: 6.3VCT @ 3.0 Amps
- Voltage Regulation: 15% TYP @ full load to no load
- Temperature Rise: 35C TYP (45C MAX)
- Construction: Wound on a single nylon bobbin, UL recognized materials, Class B (1302 C) rated
- Safety: 100% hipot tested with 2500V insulation between primary-secondary and between windings and core
- Mounting Hole Diameter: 0.187 in
- Lead Length: 7.0 in + 1 in
- Weight: 1.30 lbs
- RoHS Compliance: Yes, compliant as of February 2016
- Dimensions: Length, width, and height optimized for easy integration, compact design
Buy the Triad F16X – Reliable Power Transformer for Industrial Applications
Purchase the Triad F16X chassis-mount power transformer online to ensure reliable operation in power supply and control applications. This transformer features a 115V primary and a 6.3V center-tapped secondary rated at 3A, making it ideal for industrial projects requiring stable voltage conversion. Its UL-recognized materials and rigorous safety testing provide peace of mind for demanding environments. Compact and lightweight, this transformer simplifies installation and enhances system performance. Buy online today for trusted quality and efficient power management in your industrial setup.
Get Triad F16X power transformer today—built for industrial power supply and long-lasting durability.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS F16X?
You can click on the BUY or RFQ button to purchase F16X from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part F16X?
You can download the F16X datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of F16X?
TRIAD MAGNETICS
