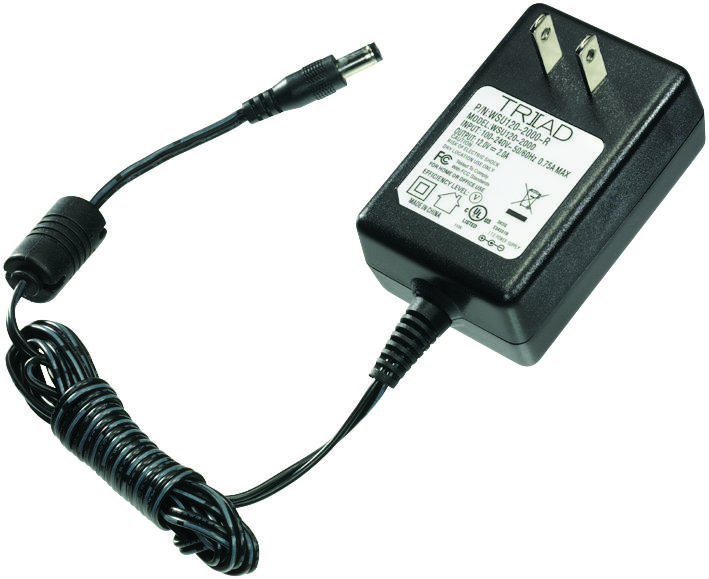

TRIAD MAGNETICS WSU1202000R Industrial Power Supply
This power supply provides reliable 12VDC output with 2.0A current capacity, suitable for industrial and automation systems. It features high efficiency (Level VI), wide input voltage range, and universal safety certifications including UL, CSA, and FCC standards. The enclosure is thermoplastic molded for durability, and it includes protections against overvoltage and short circuits. Operating within 0°C to 40°C, it is ideal for demanding industrial environments requiring stable power delivery and compliance with RoHS and DOE Level VI efficiency standards, ensuring long-lasting performance in professional settings.
TRIAD MAGNETICS WSU1202000R Industrial Power Supply Specifications:
- Input Voltage Range: 90-264VAC, 50-60Hz
- Input Current: <0.8A at 115VAC
- Max Inrush Current: <50A peak at 115VAC
- Output Voltage: 12VDC
- Output Current: 2.0A
- Regulation: +5%
- Ripple & Noise: 150mVpk-pk Max
- No Load Power: <100mW
- Efficiency: 286.20%, meets Level VI standards
- Operating Temperature Range: 0°C to +40°C
- Storage Temperature Range: -20°C to 60°C
- Humidity: 5% to 95%, Non-condensing
- Leakage Current: <0.25mA at 264VAC
- Dielectric Strength: 4242VDC for 3 seconds
- Mechanical: Thermoplastic enclosure, 6 ft. 20 AWG output cord
- Certifications: UL, CSA, FCC, RoHS compliant
- Safety & EMI: Over voltage, short circuit protection, FCC Part 15 B EMI compliance
- Warranty: 5 years
Buy the Triad WSU120-2000-R – Reliable Power Supply for Industrial Applications
Purchase the Triad power supply WSU120-2000-R online today. Designed for industrial control, automation, and power management, it offers high efficiency, reliable 12VDC output, and robust safety features including UL, CSA, and FCC certifications. Its durable thermoplastic enclosure and overload protections ensure long-lasting performance. With a 5-year warranty, this power supply guarantees stability and safety for your critical applications. Buy online now to enhance your system’s reliability with a trusted power solution built for demanding industrial environments.
Get Triad WSU120-2000-R today—built for precision, efficiency, and enduring reliability in demanding industrial environments.
