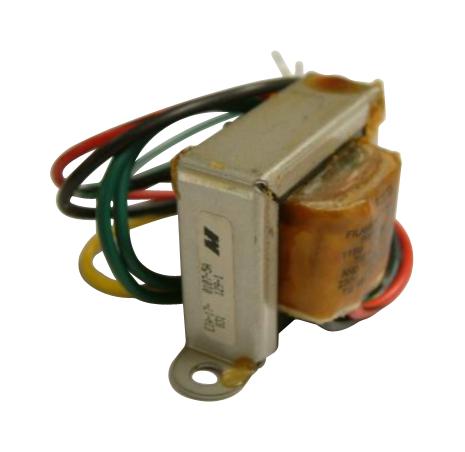

TRIAD MAGNETICS F313X Power Transformer
The F-313X power transformer is designed for reliable service in various electronic applications. It features a single secondary windings with a 6.3V output at 0.600 Amps, and primary configurations for 115V or 230V, 50/60 Hz. Constructed with UL recognized materials, it is wound on a nylon bobbin, ensuring durability and safety with 100% hipot tested insulation of 2500V. Its compact design includes mounting holes and lead lengths suitable for versatile installation, meeting RoHS compliance standards for environmental safety.
TRIAD MAGNETICS F313X Power Transformer Specifications:
- Maximum Power: 3.8 VA
- Primary: Series 230V 50/60 Hz, Parallel 115V 50/60 Hz
- Secondary: 6.3V @ 0.600 Amps
- Voltage Regulation: 35% typical @ full load to no load
- Temperature Rise: 35°C typical (45°C max)
- Construction: Wound on nylon bobbin with UL recognized materials
- Insulation: 2500V hipot tested between primary, secondary, and core
- Mounting Hole Diameter: 0.187 inches
- Lead Length: 7.0 inches + 1 inch
- Weight: 0.37 lbs
- RoHS Compliance: Yes, meets 2015/863/EU standards
- Dimensions: See detailed specs for mounting and lead details
Buy the Buy TRIAD Power Transformer Part Number F-313X Online
Enhance your electronic setup with the TRIAD F-313X power transformer, offering a reliable 6.3V output at 0.6A, UL recognized safety, and durable construction. Perfect for various industrial and commercial applications, it features UL recognized materials, high insulation standards, and RoHS compliance. Its compact size with mounting holes and specified lead length makes installation straightforward. Whether rebuilding or designing new equipment, this transformer ensures efficiency, safety, and durability, making it the ideal choice for professional electronics and manufacturing needs.
Get TRIAD F-313X power transformer today—designed for consistent performance, safety, and long-lasting durability in electronic projects.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS F313X?
You can click on the BUY or RFQ button to purchase F313X from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part F313X?
You can download the F313X datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of F313X?
TRIAD MAGNETICS
