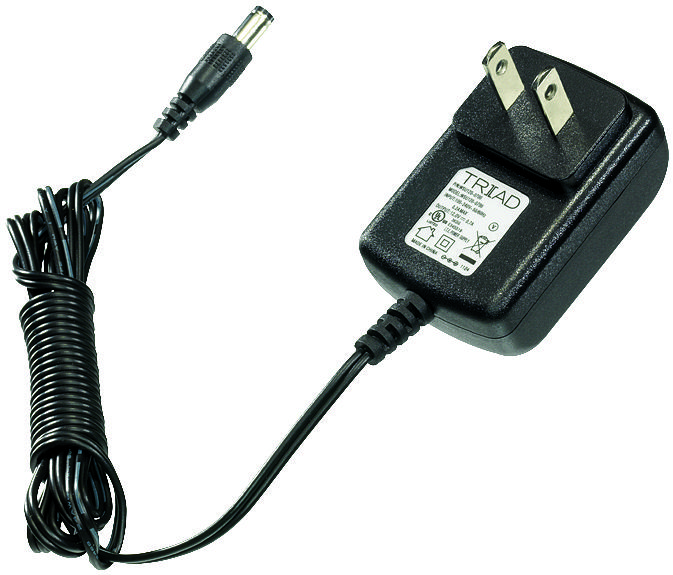

TRIAD MAGNETICS WSU1350620 Power Supply Unit
This power supply unit is designed for industrial and power management applications, offering high reliability, compact design, and efficient performance under demanding environments. It operates with an input voltage range of 100-240VAC, providing stable output power from 0.62 to 3.20V with wattages between 75W and 135W. The unit features double insulation, dielectric isolation of 4KVDC for 60 seconds, and over-voltage and short-circuit protection. It meets RoHS, UL, and CEC standards, ensuring safety, environmental compliance, and durability with a 5-year warranty.
TRIAD MAGNETICS WSU1350620 Power Supply Unit Specifications:
- Input Voltage Range: 100-240VAC, 50/60Hz
- Output Power: 75W to 135W
- Output Voltage: 0.62V to 3.20V
- Dielectric Isolation: 4KVDC for 60 seconds
- Insulation: Double insulated
- Protection: Over voltage and short circuit protected
- Operating Temperature: 0°C to 40°C @ Max Load
- Storage Temperature: -20°C to 60°C
- Humidity: 5% to 95%, Non-condensing
- Standards: RoHS, UL Listed, CEC Compliant
- Warranty: 5 years
Buy the Buy Switchmode Power Supply Part Number WSU1350620 Online
Discover the efficiency and reliability of this power supply unit for industrial and power management applications. Operating with a wide input range of 100-240VAC, it delivers stable output voltages from 0.62 to 3.20V with power capacity between 75W and 135W. Featuring a dielectric isolation of 4KVDC, double insulation, and comprehensive protection features, this unit ensures safety and durability in demanding environments. Its compact design, adherence to RoHS, UL, and CEC standards, and a 5-year warranty support continuous, safe operation for industrial systems.
Buy Switchmode Power Supply WSU1350620 now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS WSU1350620?
You can click on the BUY or RFQ button to purchase WSU1350620 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part WSU1350620?
You can download the WSU1350620 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of WSU1350620?
TRIAD MAGNETICS
