TRIAD MAGNETICS FD524 Power Transformer
The FD5-24 is a compact QUICK PACK™ 12VA power transformer designed for chassis mounting, featuring a 230V primary and a 24V secondary with a center tap. It uses split bobbin windings that minimize size and weight, making it ideal for space-constrained applications. The transformer has quick connect or soldering terminations, UL Class B insulation, and high dielectric strength of 2500 VRMS Hi-pot. Suitable for various power management tasks, it operates reliably with a maximum power of 12.0VA and is rated for an insulation temperature of 130°C, ensuring safety and durability.
TRIAD MAGNETICS FD524 Power Transformer Specifications:
- Maximum Power: 12.0VA
- Input Voltage: Series: 230VAC @50/60Hz; Parallel: 115VAC@50/60Hz
- Output Voltage: 24VCT@.5A
- Recommended Fuse: UL listed 250VAC, 700mA, Slo-Blo
- Hipot: 2500VAC primary to secondary; 1500VAC windings to core
- Dimensions: 1.625 x 2.375 x 2.812 inches (various measurements)
- Terminal Size: .187” x 0.021”
- Weight: 0.70 lbs
- Construction: Split bobbin non-concentric winding, UL Class B insulation, suitable for quick connect or soldering
- RoHS Compliance: Meets requirements of 2011/65/EU

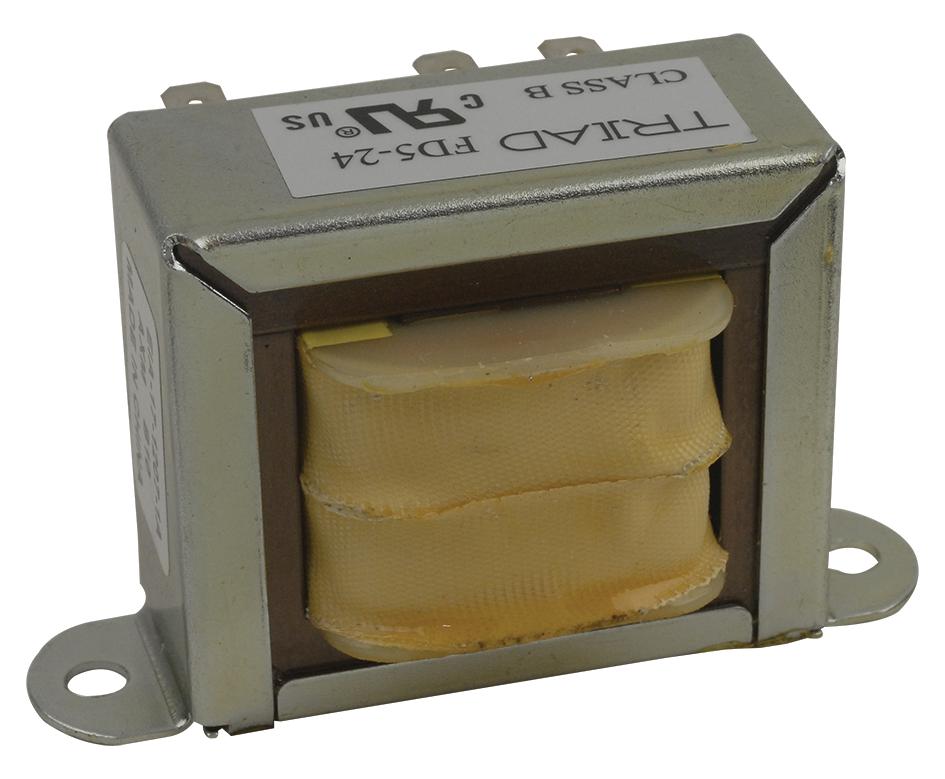

Buy the Triad Power Transformer FD5-24 – Reliable Power Supply for Industrial Applications
Enhance your electrical system with the FD5-24 power transformer, a compact, reliable solution with a 12VA capacity, designed for easy chassis mounting. It features split bobbin windings for reduced size and weight, UL Class B insulation, and quick connect terminals for straightforward installation. Suitable for diverse industrial applications, it provides a 24V secondary with center tap output, rated for 130°C insulation temperature, and tested with a 2500 VRMS Hi-pot. Order online now to experience efficient, space-saving power conversion.
Get Triad FD5-24 today—built for precision and long-lasting durability in power management applications.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS FD524?
You can click on the BUY or RFQ button to purchase FD524 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part FD524?
You can download the FD524 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of FD524?
TRIAD MAGNETICS
