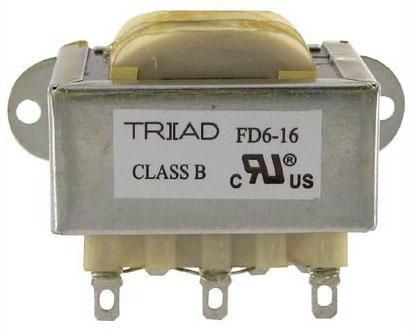

TRIAD MAGNETICS FD616 Power Transformer
The FD6-16 Quick Pack small power transformer offers a compact, lightweight design ideal for power management and industrial applications. It features split bobbin non-concentric winding for reduced size and space efficiency, with UL Class B insulation. Capable of handling maximum power of 30.0VA, it operates at 115VAC or 230VAC input and provides 16VCT @2.0A output. Its construction includes quick-connect terminations, and it’s designed for durability and safety with UL listings. Suitable for various systems requiring reliable, space-saving power solutions.
TRIAD MAGNETICS FD616 Power Transformer Specifications:
- Maximum Power: 30.0VA
- Input Voltage: 115VAC or 230VAC (50/60Hz)
- Output Voltage: 16.0VCT@2.0A
- Termination: Quick connects or soldering
- Winding Type: Split bobbin non-concentric
- Insulation System: UL Class B
- Dimensions: 3.250 in length, 2.812 in width, 1.937 in height
- Weight: 1.10 lbs
- Primary to secondary Hipot: 2500VAC
- Windings to core Hipot: 1500VAC
- Terminal Size: .187” x 0.021”
- RoHS Compliant: Yes since February 2005
- UL Listings: E53148, E65390
- Fuse Recommendation:UL listed 250VAC, 2.25A, Slo-Blo
- Construction Material: UL Class B insulation system
Buy the Buy Triad Power Transformer Part Number FD616 Online
Discover the compact, reliable power transformer designed for industrial and power management applications. The FD6-16 offers 30VA capacity, UL listing, and increased safety with UL Class B insulation. Its split bobbin construction minimizes size for limited spaces, making it ideal for various systems requiring efficient power conversion. Easy to install with quick-connect terminations, this transformer ensures stable operation and consistent performance. Purchase online today for secure, space-saving power solutions that meet UL standards and RoHS compliance for modern industrial environments.
Buy Triad FD6-16 power transformer now and ensure reliable, space-efficient power for industrial and control systems.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS FD616?
You can click on the BUY or RFQ button to purchase FD616 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part FD616?
You can download the FD616 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of FD616?
TRIAD MAGNETICS
