TRIAD MAGNETICS FS20120 Dual Primary Dual Secondary Transformer

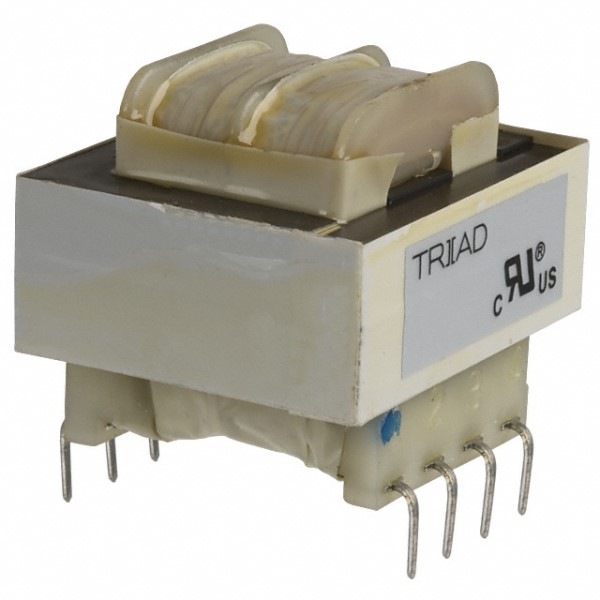

The TRIAD MAGNETICS FS20-120 is a versatile power transformer featuring a dual primary and dual secondary split bobbin design. This configuration allows for operation with either a parallel input of 115V or a series input of 230V, providing flexibility in various applications. The transformer delivers output voltages of 20.0V with a center-tap under a 0.12A load when the secondaries are wired in series, or 10.0V under a 0.24A load when wired in parallel. The split bobbin construction eliminates the need for costly electrostatic shielding, making it a cost-effective solution for a wide range of industrial and commercial applications. It is UL Listed and RoHS compliant, ensuring safety and environmental responsibility.
TRIAD MAGNETICS FS20120 Dual Primary Dual Secondary Transformer Specifications:
- Maximum Power: 2.5VA
- Primary Voltage: Series: 230V; Parallel: 115V
- Secondary Voltage: Series: 20.0V CT@ 0.12A; Parallel: 10.0V @ 0.24A
- Voltage Regulation: 25% TYP @ full load to no load
- Temperature Rise: 25C TYP
- Hipot Test: 100% at 2500 VRMS
- Construction: Three flange bobbin construction
- Agency File UL: E53148, UL 5085-2 (506), Class B
- Agency File cUL: E53148, UL 5085-2 (506), Class B
- Canadian Use: CSA 22.2, No.66.2-06
- RoHS Compliance: Compliant as of February 2005
- Dimensions H: 1.187 inches
- Dimensions W: 1.125 inches
- Dimensions L: 1.375 inches
- Dimensions A: 0.250 inches
- Dimensions B: 0.250 inches
- Dimensions C: 1.200 inches
- Dimensions D: 0.041 inches
- Dimensions E: 0.020 inches
- Dimensions F: 0.234 inches
- Weight: 0.25 lbs
