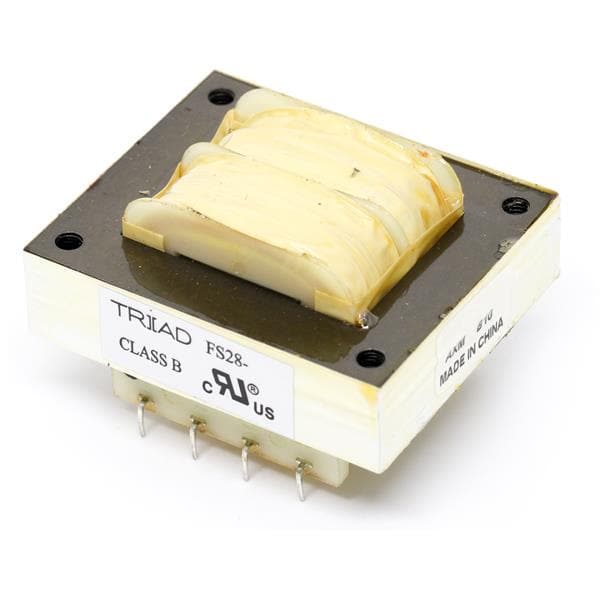

TRIAD MAGNETICS FS2885 Dual Primary Power Transformer
The TRIAD MAGNETICS FS28-85 is a versatile power transformer designed for a variety of applications. Its dual primary and dual secondary configuration, combined with a split bobbin design, offers flexibility in input voltage (115V or 230V) and output voltage (28.0V or 14.0V). The side-by-side winding minimizes capacitive coupling, enhancing performance. This transformer is UL listed and RoHS compliant, making it suitable for general-purpose applications requiring reliable power conversion. It is commonly used in industrial control panels, lighting systems, and other electronic equipment where a compact and efficient transformer solution is needed.
TRIAD MAGNETICS FS2885 Dual Primary Power Transformer Specifications:
- Maximum Power: 2.5VA
- Primary Voltage: Series: 230V; Parallel: 115V
- Secondary Voltage: Series: 28.0V CT@ 0.085A; Parallel: 14.0V @ 0.17A
- Voltage Regulation: 25% TYP @ full load to no load
- Temperature Rise: 25C TYP
- Hipot Test: 100% at 2500 VRMS
- Construction: Three flange bobbin construction
- Agency File UL: File E53148, UL 5085-2 (506), Class B General Purpose Transformer
- Agency File cUL: File E53148, UL 5085-2 (506), Class B General Purpose Transformer, Canadian Use (CSA 22.2, No.66.2-06)
- RoHS Compliance: Compliant as of February 2016
- Dimensions H: 1.187 inches
- Dimensions W: 1.125 inches
- Dimensions L: 1.375 inches
- Dimensions A: 0.250 inches
- Dimensions B: 0.250 inches
- Dimensions C: 1.200 inches
- Dimensions D: 0.041 inches
- Dimensions E: 0.020 inches
- Dimensions F: 0.234 inches
- Weight: 0.25 lbs
