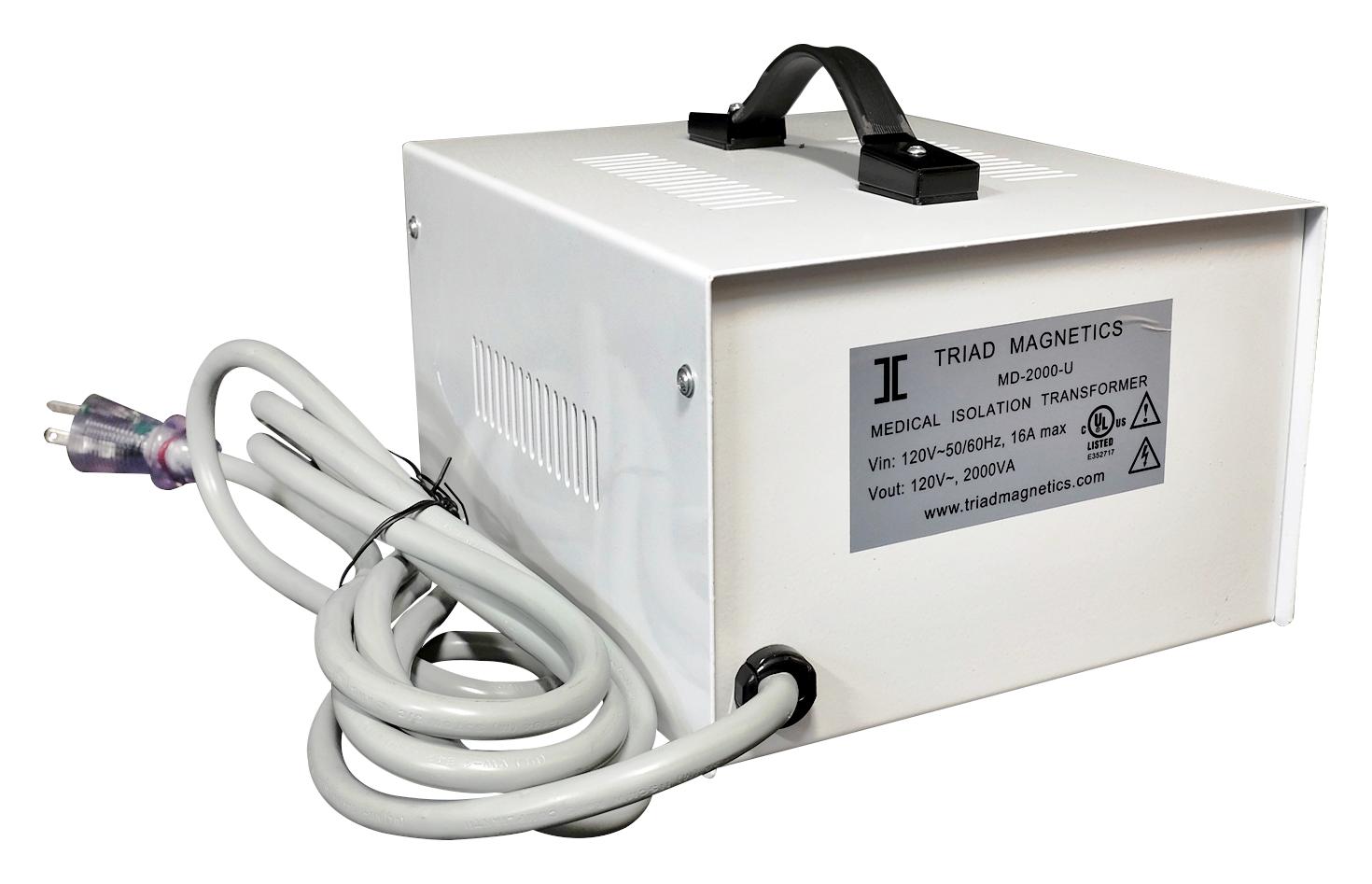

TRIAD MAGNETICS MD2000U Medical Isolation Power Transformer
This medical grade isolation power transformer offers 2000VA capacity with high efficiency of 94%. Built with toroidal construction, it reduces stray fields and minimizes size, ideal for medical and industrial applications. Certified to UL 60601-1 standards, it features a 120VAC input, 120VAC output, and a maximum load of 16.66A. The transformer includes UL-listed slow-blow fuses, rubber feet for mounting, and includes features such as safety grounding and an enclosure with steel powder coating. Suitable for environments requiring reliable power isolation and regulation.
TRIAD MAGNETICS MD2000U Medical Isolation Power Transformer Specifications:
- Maximum Power: 2000VA
- Input Voltage: 120VAC+10%, 50/60Hz
- Output Voltage: 120.0VAC @ 16.66A Max
- Voltage Regulation: 5% TYP from full load to no load
- Hipot: Input to output 3000VAC, Ground to enclosure 1500VAC
- Efficiency: 94% TYP at full load
- Operating Temperature: Not to exceed 60°C
- Leakage Current: Less than 50uA; typical 10uA
- Fusing: 20.0A, 250VAC, slow-blow, UL listed
- Construction: Toroidal transformer, Class F insulation, steel enclosure
- Certifications: UL 60601-1, CSA-C22.2 No. 601.1M90
- Mounting: Rubber feet for horizontal mounting
- Input Connection: 11ft medical grade power cord, Nema 5-15P plug
- Output Connection: Duplex receptacle Nema 5-15R
- Dimensions: 420mm x 150mm x 150mm
- Weight: 19.1Kg
- Warranty: 5 years
Buy the MedRelia 2000U – Reliable Medical Isolation Power Transformer for Industrial Applications
Purchase the MedRelia MD2000U power transformer online today for unmatched reliability in medical and industrial environments. Featuring UL certification, toroidal construction for reduced stray fields, and a high efficiency of 94%, this transformer provides safe, stable power management. Its compact steel enclosure, UL/CSA certifications, and 5-year warranty make it ideal for demanding applications. Ensure your systems operate safely with this professional-grade isolation transformer designed for longevity and optimal performance in critical settings.
Order your MedRelia Series MD2000U power transformer today and ensure reliable power isolation for your medical and industrial electronic systems.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS MD2000U?
You can click on the BUY or RFQ button to purchase MD2000U from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part MD2000U?
You can download the MD2000U datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of MD2000U?
TRIAD MAGNETICS
