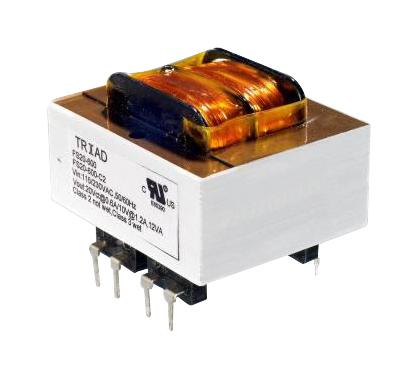

TRIAD MAGNETICS FS36030C2 power transformer
The FS36-030-C2 is a versatile Class 3 transformer featuring a split bobbin design that allows for series or parallel secondary configurations, offering 18V at 0.03A each. It operates at dual primary voltages of 115V or 230V with a maximum power of 1.1VA, and is suitable for low-capacitance applications. Constructed with UL Class F insulation, it provides reliable isolation and minimal electrostatic interference. It withstands a wide temperature range from -40°C to 115°C and is certified compliant with UL, cUL, and TUV standards for safety and efficiency.
TRIAD MAGNETICS FS36030C2 power transformer Specifications:
- Maximum Power: 1.1VA
- Primary: Series: 230V; Parallel: 115V
- Secondaries: 18.0V @ 0.03A each
- Voltage Regulation: 25% TYP @ full load to no load
- Operating Temperature: -40°C to 115°C
- Storage Temperature: -55°C to 150°C
- Hipot Test: 4200 VRMS primary to secondary, 2160 VRMS secondary to secondary
- Construction: Three flange bobbin, UL Class F insulation (155°C)
- Dimensions: 1.130 x 1.142 x 1.417 inches
- Weight: 0.17 lbs
- Certifications: UL, cUL, TUV
- RoHS Compliant: Yes as of February 2005
Buy the Triad Series FS36-030-C2 Class 3 Transformer: FS36-030-C2
Purchase the Triad Series FS36-030-C2 power transformer online today for reliable low-capacitance isolation in control and power applications. Designed with a split bobbin construction, it supports series or parallel secondary configurations for flexible voltage and current setups. Certified by UL, cUL, and TUV, it ensures safety and efficiency in various industrial environments. Operating within a wide temperature range from -40°C to 115°C, it offers dependable performance. Quick and secure online ordering makes integrating this high-quality transformer into your system seamless and straightforward.
Buy Triad FS36-030-C2 now and experience unmatched reliability and performance with versatile dual secondary configurations and high safety standards.
