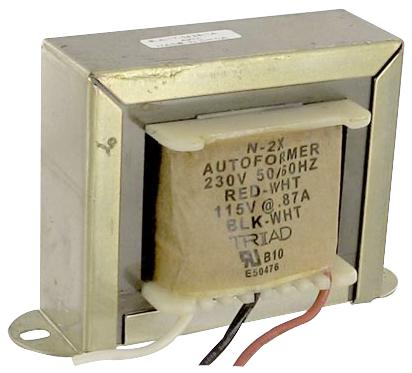

TRIAD MAGNETICS N2X power autotransformer
The N-2X is a 100VA power autotransformer featuring a single winding with a fractional primary or secondary coil for voltage step-up or step-down. Unlike traditional double-wound transformers, this autotransformer transfers part of the power conductively through the windings, providing efficient voltage conversion. It comes in a case type-2X configuration with a 100VA output and has been tested for dielectric strength at 1500V RMS. The device operates at a rated frequency of 50/60Hz and is suitable for power management applications.
TRIAD MAGNETICS N2X power autotransformer Specifications:
- Maximum Power: 100 VA
- Input Voltage: 230 V, 50/60 Hz
- Output Voltage: 115V, +5%
- Full Secondary Load: 0.87 Amps RMS
- Temperature Rise: 60°C typical (85°C max, from 25°C ambient)
- Construction: Single winding on nylon bobbin, channel frame with .187 inch holes
- Dimensions: 3.562 inches height +0.030 inches, 2 holes on 1.87 inch diameter
- Insulation Rating: Class B, 1500V isolation between winding and core
- Leads: 7+1 inches, stripped and tin-plated, 0.250+0.062 inches diameter
- Material: Nylon bobbin, UL recognized insulation system
- Operating Frequency: 50/60Hz
- RoHS Compliance: Yes as of February 2005
Buy the Triad Power Transformer – Reliable Voltage Converter for Industrial Applications
Enhance your power management setup with the reliable N-2X power autotransformer. Featuring a 100VA capacity, single winding design, and UL-rated insulation, it ensures safe voltage step-down or step-up for industrial applications. Easy to install with a durable nylon bobbin and precise dimensions. This transformer operates at 50/60Hz, providing efficient conductivity and energy transfer. Order online now to benefit from fast shipping, trusted quality, and excellent support, guaranteeing optimal performance for your power conversion requirements.
Order your Triad Series N-2X 100VA autotransformer today and ensure efficient, safe voltage regulation for your industrial power needs.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS N2X?
You can click on the BUY or RFQ button to purchase N2X from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part N2X?
You can download the N2X datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of N2X?
TRIAD MAGNETICS
