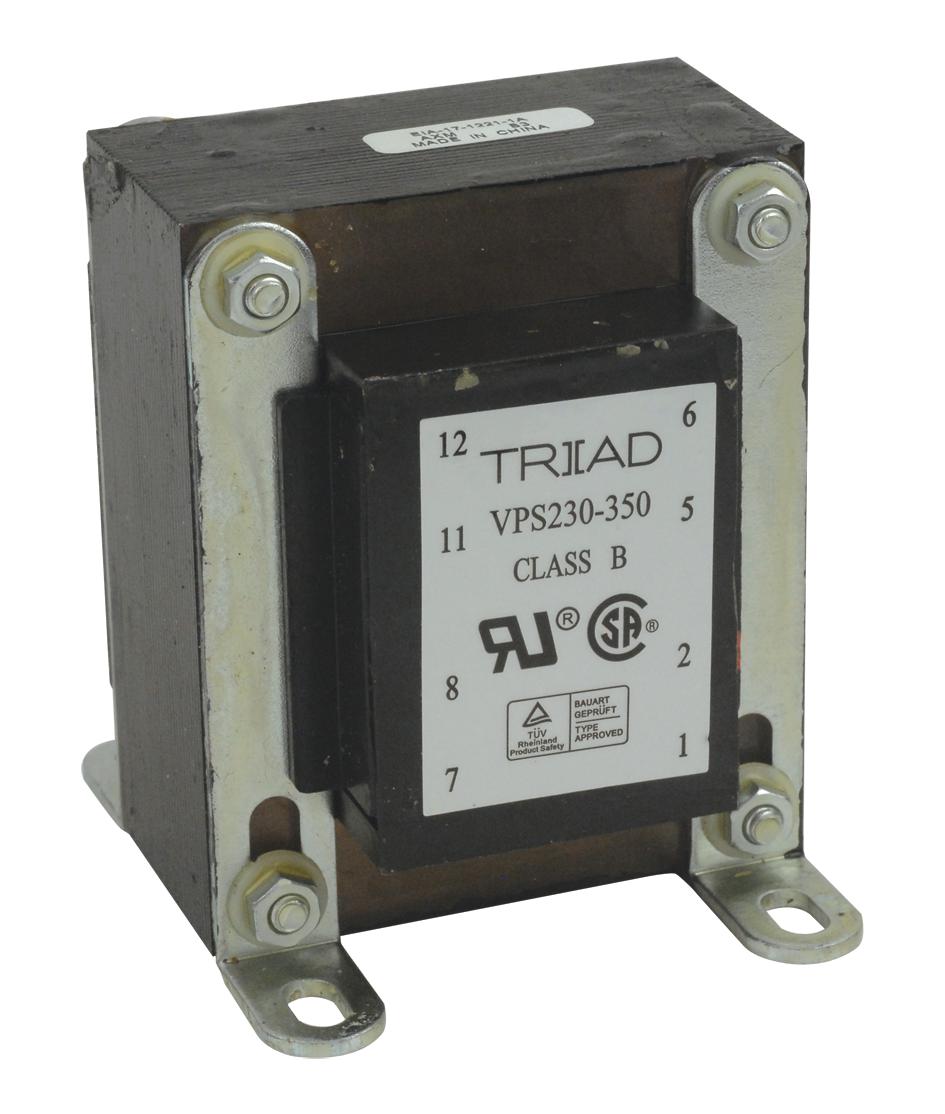

TRIAD MAGNETICS VPS230350 Power Transformer
The VPS230-350 is an 80VA chassis-mount power transformer designed for versatile electrical applications. It features a primary voltage of 115/230VAC at 50/60Hz and provides a secondary output with a 230V center tap at 0.35A in series mode or 115V at 0.7A in parallel mode. The transformer complies with UL, CSA, IEC, and VDE standards, ensuring safety and reliability. Its dual bobbin construction within an insulating shroud minimizes capacitance between coils, eliminating the need for electrostatic shielding. Both windings are electrically isolated from each other and the core, with quick connect terminals for easy installation, suitable for industrial, power management, and control systems.
TRIAD MAGNETICS VPS230350 Power Transformer Specifications:
- Maximum Power: 80.0VA
- Primary Voltage: 115/230VAC at 50/60Hz
- Secondary Voltage: 230V CT at 0.35A or 115V at 0.7A
- Voltage Regulation: 25% typical
- Temperature Rise: 30°C typical, 45°C max
- Insulation Resistance: 100MOQ
- Construction: Dual bobbin with insulated shroud
- Isolation: 4000VAC between primary, secondary, and core
- Dimensions: 3 2-1/2 x 2-5/16 x 1-3/8 inches
- Mounting Hole Size: 13/64” x 3/8”
- Terminal Size: 0.187” x 0.020”
- Weight: 2.8 lbs
- Approval Agencies: UL, CSA, TUV
- RoHS compliance: Yes
Buy the Buy Triad Power Transformer Part Number VPS230350 Online
Purchase the VPS230-350 power transformer online today for versatile electrical applications. With primary options of 115/230VAC and secondary outputs of 230V CT or 115V, it is suitable for industrial automation, power management, and control systems. Its dual bobbin construction minimizes capacitance, ensuring safety and compliance with UL, CSA, IEC, and VDE standards. Easy to install with quick connect terminals, this 80VA transformer offers reliable performance, excellent insulation, and robust construction. Ideal for various critical power applications in industrial environments.
Buy Triad VPS230-350 now and experience reliable power conversion with dual voltage options and easy quick connect terminations.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS VPS230350?
You can click on the BUY or RFQ button to purchase VPS230350 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part VPS230350?
You can download the VPS230350 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of VPS230350?
TRIAD MAGNETICS
