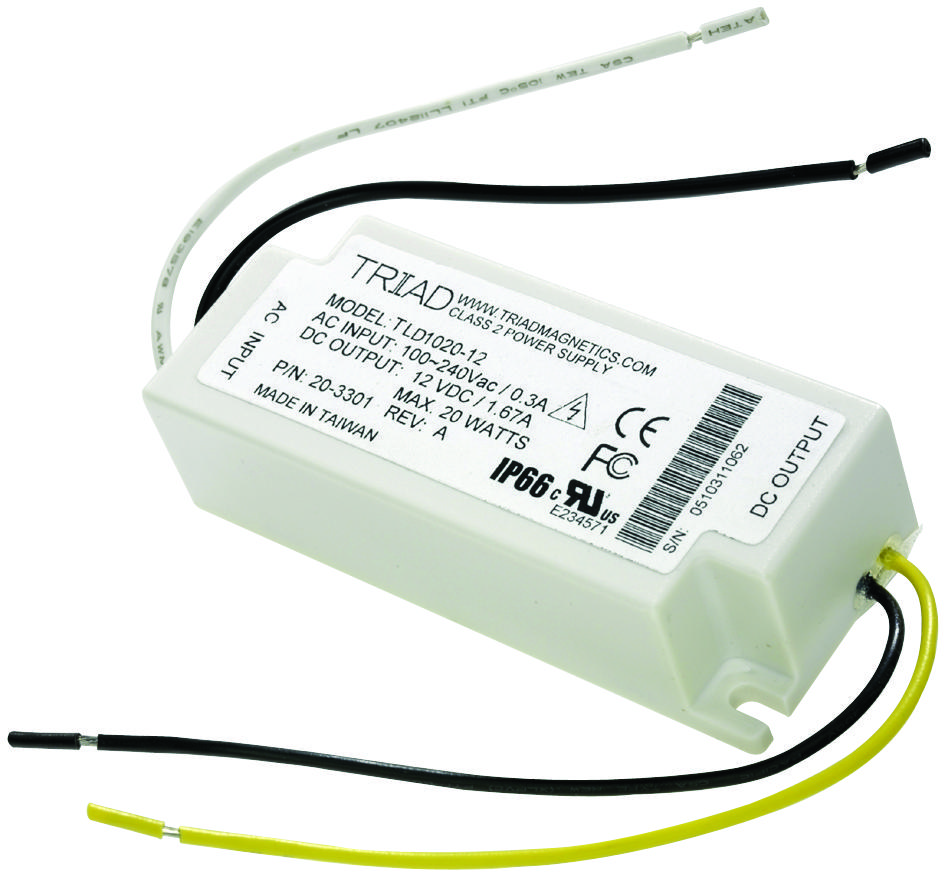

TRIAD MAGNETICS TLD102012 Power Supply
This component is suitable for power management applications, industrial use, and LED lighting systems. It features a compact design with dimensions of 3.74 x 1.57 x 0.97 inches, offering reliable performance with an MTBF exceeding 100,000 hours. The power supply operates efficiently at -30 to +60°C, with a humidity range of 5-95% RH. It complies with safety standards including UL and CE, and provides stable output with a regulation of 3.0% load and line. Its robust voltage and current ratings make it ideal for indoor and outdoor lighting solutions, ensuring consistent energy delivery.
TRIAD MAGNETICS TLD102012 Power Supply Specifications:
- Input Voltage: 90 - 264vAC
- Input Frequency Range: 47 - 63Hz
- Power Factor: 0.9 at Full Load & 115 VAC
- Crest Factor (Ipk): 1.5 Max
- Max Input Current: 0.3/0.15A @ 115/230 VAC
- Max Inrush Current: 5/10A@ 115/230 VAC
- Output: 12V or 24V options, various current ratings up to 3.33A
- Dimensions: 3.74 x 1.57 x 0.97 inches
- Weight: 120g
- Operating Temperature: -30°C to +60°C, derate from 60°C to 70°C
- Storage Temperature: -40°C to +85°C
- Humidity Range: 5-95% RH, non-condensing
- Vibration: 5-50Hz, 2G Imin/cycle for 60 minutes
- Certifications: UL/cUL 1310, UL48, CE LVD, EMC compliant to 47CFR, Part 15, CISPR PUB 22
- Cooling: Convection cooled
- Warranty: 3 years
- MTBF: Over 100,000 hours
Buy the Triad Series Power Supply: TLD102012
Enhance your power management setup with this highly reliable power supply designed for industrial applications and LED lighting systems. Offering efficient energy conversion, wide temperature range, and UL and CE certifications, it ensures safety and durability in demanding environments. Compact size and high MTBF make it suitable for various indoor and outdoor lighting solutions. Easily order online today to benefit from fast delivery, full technical support, and a product built to perform reliably over the years.
Buy Triad power supply TLD102012 now and ensure reliable energy delivery for your industrial and LED lighting projects.
