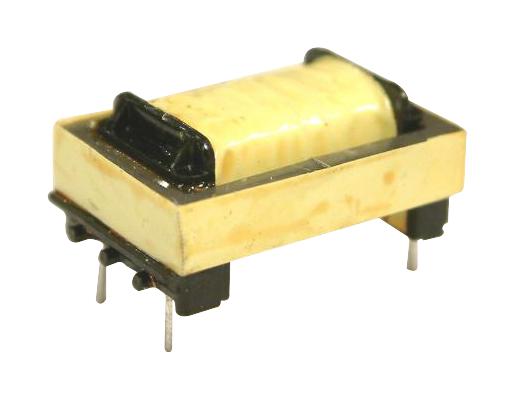

TRIAD MAGNETICS TY402P Audio Transformer
The TY series transformer is ideal for impedance matching, isolation, line balancing, and hybrid circuits in audio and voice applications. Designed to meet FCC Part 68, it offers excellent longitudinal balance of 60 dB at 200-1000 Hz and 45 dB at 1000-4000 Hz. With a dielectric strength of 1500VAC, it supports power levels from -45 dBm to +7 dBm and has a frequency range of 300 to 3500 Hz. Fully RoHS compliant, this transformer ensures high-quality, environmentally safe performance in telecommunications and audio systems.
TRIAD MAGNETICS TY402P Audio Transformer Specifications:
- Impedance matching and isolation for audio and voice applications
- Supports power levels from -45 dBm to +7 dBm
- Frequency range: 300 to 3500 Hz
- Dielectric Strength: 1500VAC
- Longitudinal Balance: 60 dB minimum at 200-1000 Hz, 45 dB at 1000-4000 Hz
- Built to meet FCC Part 68 standards
- RoHS compliant since February 2005
- Physical Dimensions: 1.75 inches length, 0.025 sq. inches typical cross-sectional area
- Pin configuration includes primary and secondary windings with 600 ohms impedance
- Designed for use in telecommunication, audio, and professional audio equipment
Buy the Buy Triad Audio Transformer Part Number TY402P Online
Enhance your audio systems with the reliable and versatile Triad TY402P transformer. This high-performance device is ideal for impedance matching, line balancing, and isolation in voice and audio applications. Meets FCC Part 68 standards, supports 300-3500 Hz frequency range, and features a dielectric strength of 1500VAC. Fully RoHS compliant, ensuring safety and environmental standards. Purchase online today to benefit from seamless integration, superior quality, and long-lasting durability in your professional audio, telecommunications, and industrial projects.
Buy Triad TY402P now and experience high-quality impedance matching and isolation for your audio and voice systems.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS TY402P?
You can click on the BUY or RFQ button to purchase TY402P from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part TY402P?
You can download the TY402P datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of TY402P?
TRIAD MAGNETICS
