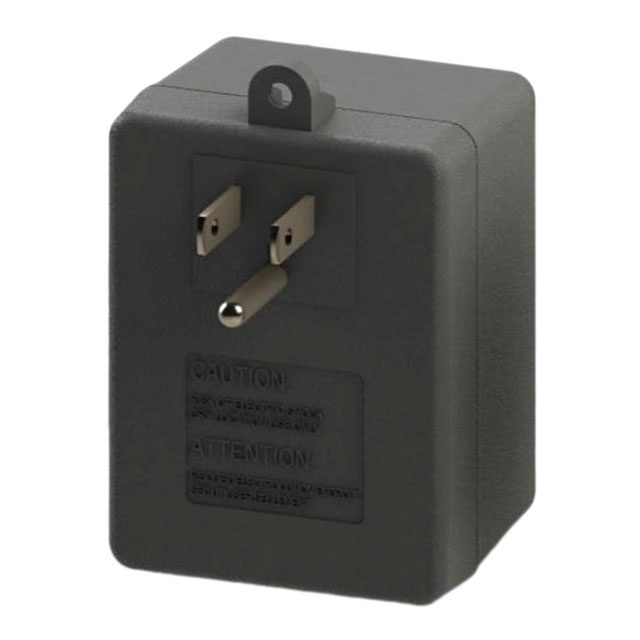

TRIAD MAGNETICS WAU160750 120V 16VAC 750mA Wall Plug
The TRIAD MAGNETICS WAU160-750 is a robust wall plug power supply designed for a variety of applications requiring a 16VAC output. It operates on a 120V primary input and delivers a secondary output of 16VAC at 750mA. The power supply boasts an efficiency of 82.96%, exceeding minimum level VI efficiency requirements. Encased in a thermoplastic molded enclosure with a 6-foot minimum output cord, it is suitable for appliances, lighting, and other low-voltage DC applications. It meets UL 1310 standards and is RoHS compliant, ensuring environmental responsibility. Backed by a 10-year warranty, the WAU160-750 offers reliable and long-lasting power.
TRIAD MAGNETICS WAU160750 120V 16VAC 750mA Wall Plug Specifications:
- Primary Rating: 120V 60Hz
- Primary Excitation Current: <4mA
- Secondary Rating: 16VAC ± 5%, 750mA AC
- Secondary No-Load Rating: <20.0VAC Ref.
- No Load Power: <0.21W
- Average Efficiency: 82.96%
- Operating Temperature Range: -10 Deg C to +50 Deg C
- Temperature Rise: 30 Deg C Max at rated load
- Case Type: Thermoplastic molded enclosure
- Output Cord Length: 6 Ft. Min
- Warranty: 10 Years
- UL/CUL File: E341931, UL 1310
- Height: 79.6 mm
- Width: 59.7 mm
- Depth: 48.1 mm
- DOE/CEC Compliance: Meets minimum efficiency levels
- RoHS Compliance: Compliant since February 2005
Buy the WAU160-750 TRIAD MAGNETICS 120V 16VAC 750mA Wall Plug | myMectronic
Purchase the TRIAD MAGNETICS WAU160-750 wall plug power supply securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS WAU160750?
You can click on the BUY or RFQ button to purchase WAU160750 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part WAU160750?
You can download the WAU160750 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of WAU160750?
TRIAD MAGNETICS
