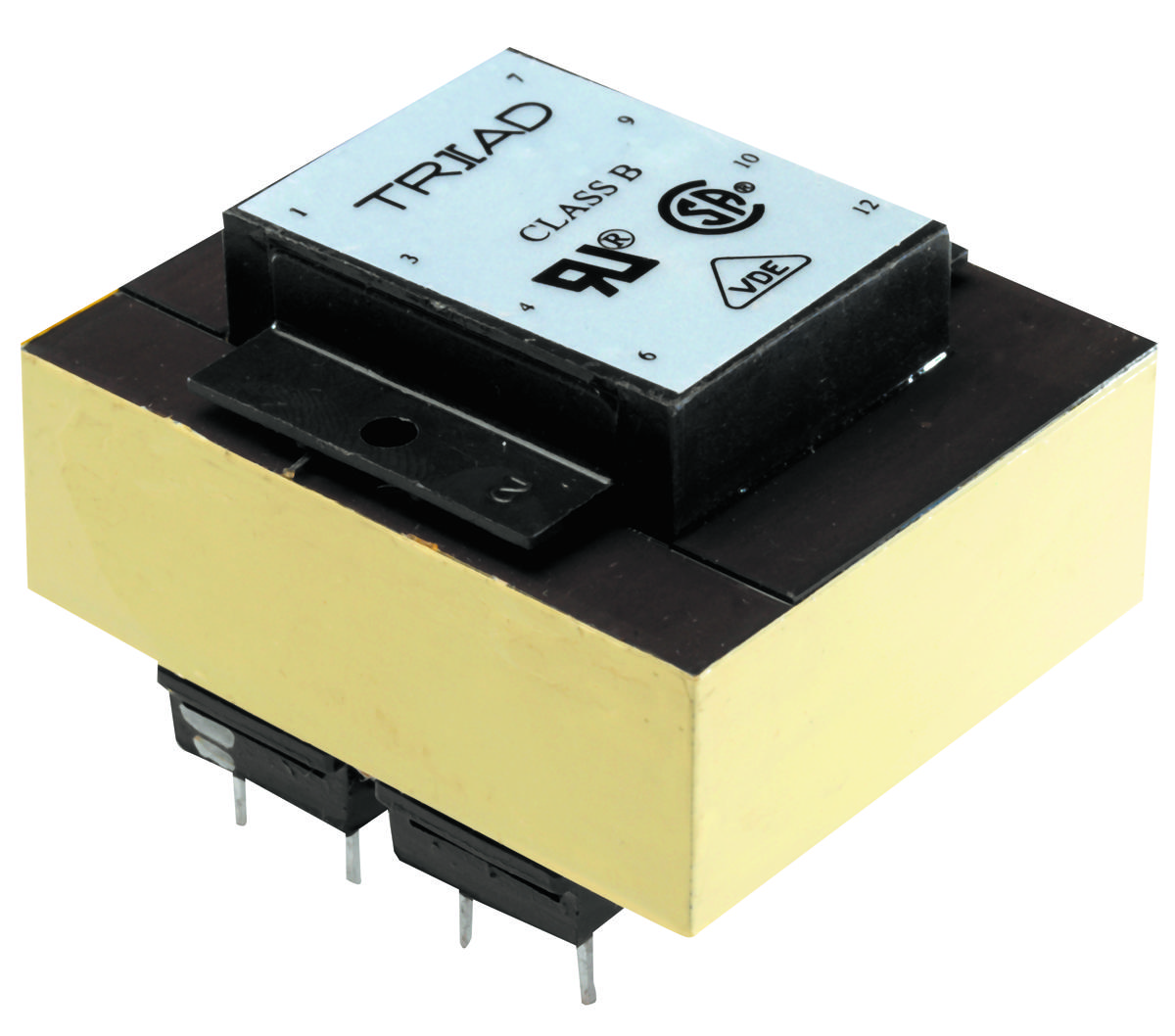

TRIAD MAGNETICS VPP24420 Power Transformer
The VPP24-420 is a high-quality power transformer from the World Series™ line, designed with dual bobbin construction and high-temperature insulating shroud that exceeds UL flammability standards. It offers excellent electrical isolation between primary and secondary windings, with a 24V secondary rated at 0.42A in series and a 12V secondary rated at 0.84A in parallel. Operating at 50/60Hz and capable of handling primary voltages of 115/230V, it has been hi-pot tested at 4000 VRMS. Its versatile connections for series and parallel configurations make it ideal for various industrial automation and control systems.
TRIAD MAGNETICS VPP24420 Power Transformer Specifications:
- Power Rating: 10.0VA
- Input Voltage: Series: 230VAC, 50/60Hz; Parallel: 115VAC, 50/60Hz
- Output Voltage: Series: 24.0V CT@ 0.42A; Parallel: 12.0V @ 0.84A
- Voltage Regulation: 25% TYP @ full load to no load
- Temperature Rise: 30°C TYP (45°C MAX)
- Insulation Resistance: 100MΩ
- Hi-pot Test: 4000VAC between primary and secondary and windings to core
- Construction: Dual bobbin with high-temperature insulating shroud
- Dimensions: 1.25 x 1.375 x 0.187 inches
- Mounting Holes: 0.112 inch diameter, 2.0 inch spacing
- Wiring: Series and parallel connection options for primary and secondary
- RoHS Rating: Compliant since February 2005
- Safety Certifications: UL, CSA, TUV
- Weight: 0.53 lbs
Buy the Triad Power Transformer – Reliable Voltage Conversion for Industrial Applications
Purchase the Triad VPP24-420 power transformer online today and benefit from a high-efficiency, UL-compliant device with dual connection configurations. Designed for industrial automation, this transformer ensures excellent electrical isolation, safety, and durability. Its high-temperature insulation and tested HI-pot design make it suitable for demanding environments. Whether you need a 24V or 12V output, this transformer provides versatility, safety, and reliability, making it an ideal choice for control panels, automation systems, and industrial equipment.
Buy Triad VPP24-420 transformer now and enhance your industrial control systems with reliable voltage transformation and versatile connection options.
