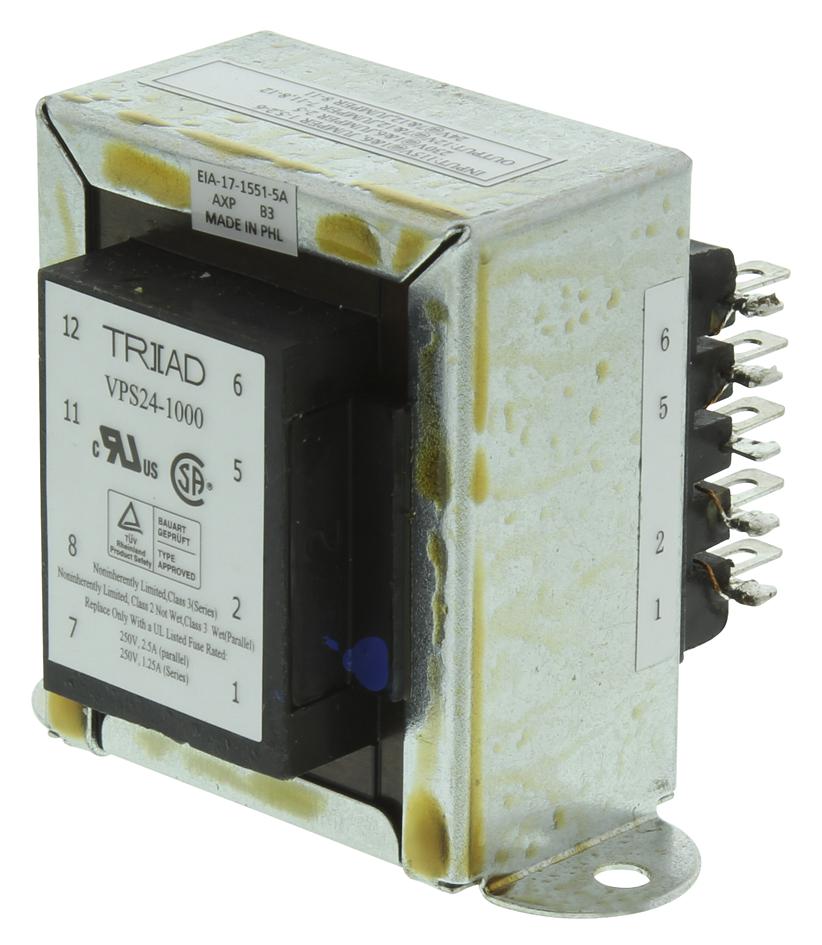

TRIAD MAGNETICS VPS241000 Power Transformer
The VPS24-1000 is a 25VA chassis-mounted power transformer with quick-connect terminals, designed for reliable power management in industrial and electronic applications. It features electrically isolated primary and secondary windings, housed within a high-temperature UL-approved insulating shroud with dual bobbin construction. This transformer meets safety standards including UL, CSA, IEC, and TUV certifications, ensuring compliance for general purpose use. It offers dual wiring configurations with series and parallel connections, operates at 50/60Hz, and is suitable for use in control panels, automation systems, and other electronic equipment requiring efficient and safe power transformation.
TRIAD MAGNETICS VPS241000 Power Transformer Specifications:
- Power Rating: 25VA
- Primary Voltage: Series 230VAC @50/60Hz; Parallel 115VAC @50/60Hz
- Secondary Voltage: Series 24V CT @ 1.0A; Parallel 12V @ 2.0A
- Voltage Regulation: 25% TYP @ full load to no load
- Temperature Rise: 30°C TYP (max 45°C)
- Insulation Resistance: 100MQ
- Construction: Dual bobbin with high-temperature insulated shroud
- Certifications: UL, CSA, IEC, TUV
- Operating Frequency: 50/60Hz
- Dimensions: 2-5/16 x 13/16 x 1-15/16 inches
- Mounting Hole Size: 3/16 inches
- Weight: 1.25 lbs
- Terminal Size: 0.187 x 0.020 inches
- Input Connections: Series or Parallel configurations
- Output Connections: Series or Parallel configurations
- RoHS Compliant: Yes as of February 2005
Buy the Triad Power Transformer VPS24-1000 – Reliable Power Conversion for Industrial Applications
Order the Triad VPS24-1000 power transformer online today to enhance your power management systems. With UL, CSA, IEC, and TUV certifications, this 25VA unit ensures safe and efficient operation. Its dual wiring configurations provide versatility for control panels, automation, and electronic applications. The high-temperature insulated shroud and low capacitance design minimize electromagnetic interference, making it ideal for industrial environments. Purchase now and experience seamless power conversion, robust construction, and compliance with global safety standards for your critical applications.
Buy Triad VPS24-1000 now and ensure reliable and safe power transformation for your industrial equipment.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS VPS241000?
You can click on the BUY or RFQ button to purchase VPS241000 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part VPS241000?
You can download the VPS241000 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of VPS241000?
TRIAD MAGNETICS
