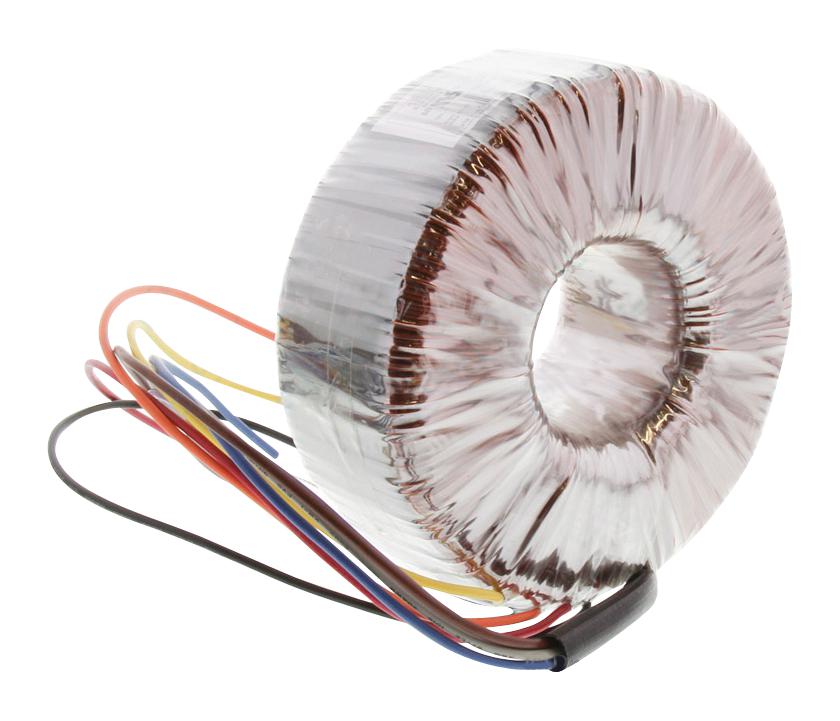

TRIAD MAGNETICS VPT2302170 Power Transformer
The VPT230-2170 is a toroidal power transformer from the World Series line, offering an efficient, compact, and low-temperature operation solution. Designed with minimal stray fields, it ensures quiet operation around sensitive circuits. The transformer features dual primary and secondary windings with electrical isolation from each other and the core, providing flexibility for different input and output voltage configurations. It includes a 230V center-tapped secondary at 2.17A, with primary voltage options of 115/230V at 50/60Hz, and operates with approximately 5% regulation and 94% typical efficiency. Constructed with a Class B insulation system, suitable for industrial applications. Windings connect in series or parallel, not independently.
TRIAD MAGNETICS VPT2302170 Power Transformer Specifications:
- Maximum Power: 500VA
- Input Voltage: Series: 230VAC, 50/60Hz; Parallel: 115VAC, 50/60Hz
- Output Voltage: Series: 230VAC CT @ 2.17A; Parallel: 115.0VAC @ 4.34A
- Voltage Regulation: 5% TYP from full load to no load
- Temperature Rise: 50°C TYP
- Hipot: 4000VAC, Primary to Secondary
- Efficiency: 94% TYP at full load
- Construction: Toroidal core reducing stray fields and size, Class B (130°C) insulation system
- Safety Standards: UL, CE compliant with international safety agency standards
- Dimensions: Voltage and size details as per design, approx 4.2 kg weight
- Connections: Dual primary and secondary windings, 20 AWG lead wires, connectable in series or parallel
- RoHS: Compliant as of February 2008 for 2011/65/EU
Buy the Triad Power Transformer – Reliable Toroidal Power for Industrial Applications
Purchase the Triad VPT230-2170 toroidal power transformer online today to enhance your industrial projects. Featuring high efficiency, minimal stray fields, and dual voltage options, this transformer ensures reliable operation and safety compliance. Its compact design and low operating temperature make it ideal for sensitive environments. With easy connections and a robust construction, you can trust this unit to deliver consistent performance. Order now and experience the convenience of online buying combined with the proven quality of Triad transformers tailored for demanding industrial and electronic applications.
Order your Triad Series VPT2302170 power transformer today and give your projects the dependable quality they deserve.
