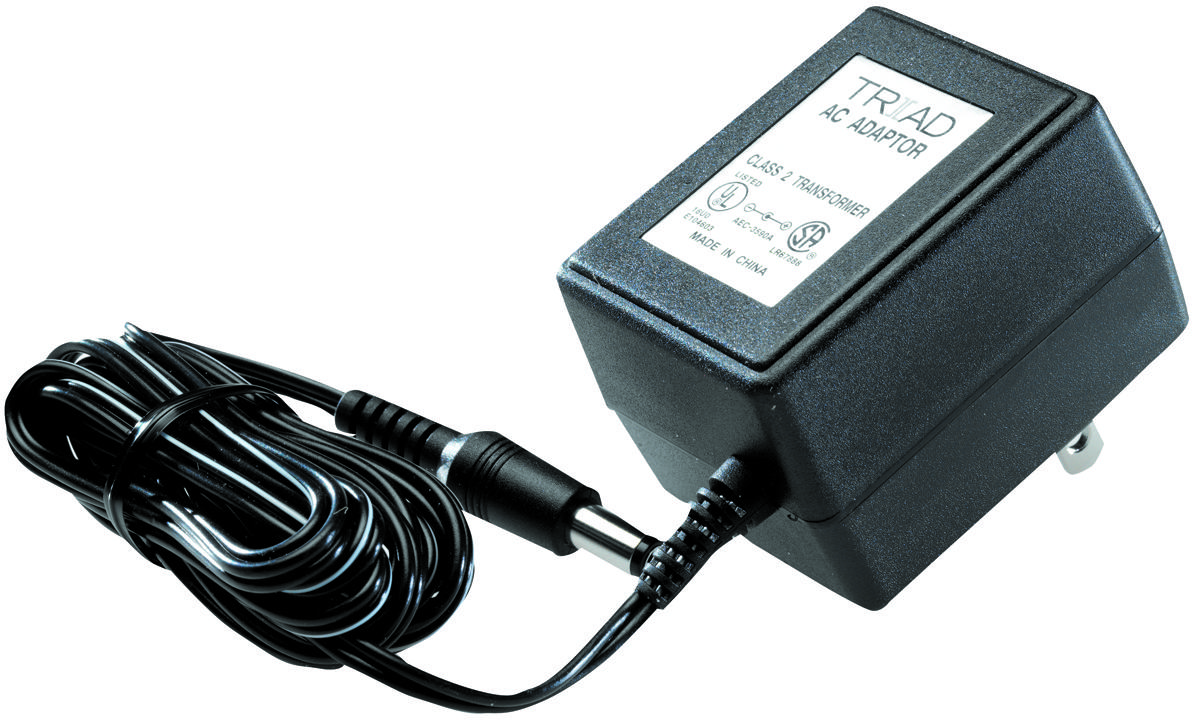

TRIAD MAGNETICS WAU121000 Power Supply
The WAU12-1000 is a compact, fully enclosed 12VAC wall plug-in power supply designed for ease of integration in various electronic devices. It features a thermoplastic molded enclosure, operates within a temperature range of -10°C to 40°C, and includes a 24 AWG output cord. With a primary rating of 120V 60Hz 17W and secondary rating of 12VAC + 5%, 1000mA, it offers reliable power delivery. The device provides Class-2 protection, double insulation, and dielectric isolation of 4kVDC for one minute, ensuring safety and compliance for power management applications.
TRIAD MAGNETICS WAU121000 Power Supply Specifications:
- Input: 120VAC 60Hz, 17W
- Output: 12VAC at 1000mA
- Primary Rating: 120V 60Hz 17W
- Secondary Rating: 12VAC + 5%, 1000mA
- No-Load Voltage: 14.75VAC when unloaded
- Efficiency: Approx. 80%
- Operating Temperature Range: -10°C to +40°C
- Temperature Rise: Up to 75°C at rated load
- Enclosure: Thermoplastic molded
- Output Cord: 24 AWG, minimum 6 ft long
- Protection: Class-2 with double insulation and dielectric isolation 4kVDC for 1 min
- Agency Approvals: UL 1310, File E245587
- RoHS Compliant: Yes as of February 2005
- Dimensions: Not specified
- Certification: UL Listed, CUL Listed
- Wall Plug-in Design: Compact and fully enclosed
- Safety Features: Double insulation, dielectric isolation, low-voltage output
Buy the Triad Wall Plug-In Power Supply – Reliable 12VAC for Industrial Applications
Discover the reliable and compact power supply solution, designed for safety and efficiency in industrial, electronic, and power management applications. The WAU12-1000 offers a rugged thermoplastic enclosure, 12VAC output at 1000mA, and features double insulation with dielectric isolation of 4kVDC for one minute, ensuring safety standards are met. This fully enclosed wall plug-in device is ideal for applications requiring low-voltage power, robust protection, and compliance with UL and RoHS standards. Order online today for fast delivery and seamless integration into your projects.
Get Triad WAU12-1000 today—designed for reliable power delivery and safety in industrial and electronic applications.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS WAU121000?
You can click on the BUY or RFQ button to purchase WAU121000 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part WAU121000?
You can download the WAU121000 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of WAU121000?
TRIAD MAGNETICS
