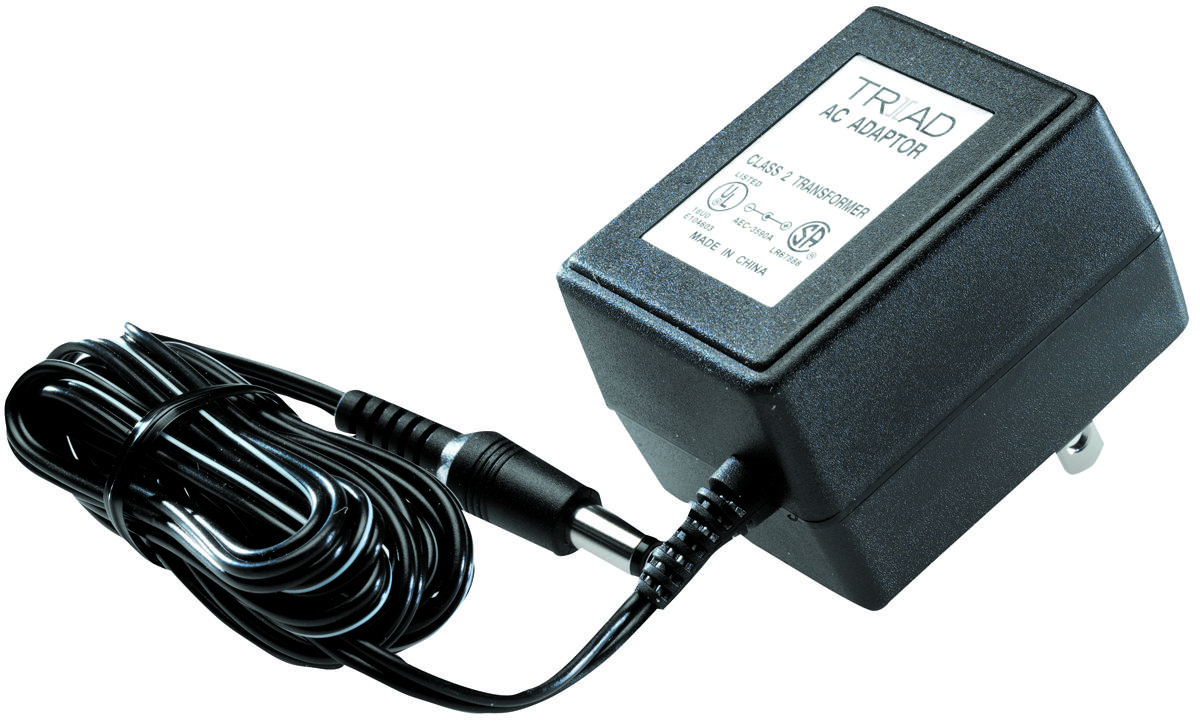

TRIAD MAGNETICS WAU12200 Wall Power Supply
The WAU12-200 is a compact, fully enclosed 12VAC power supply that simplifies product development with its low noise, lightweight design. Operating within -10°C to +40°C, it features double insulation, Class-2 protection, and dielectric isolation of 4kVDC for one minute, ensuring safety and reliability. Its thermoplastic molded enclosure makes it resistant to thermal stress. This power source comes with a 6-foot cord, unregulated output, and meets UL, CUL, RoHS, and DOE standards, making it ideal for power management in various electronic and industrial applications.
TRIAD MAGNETICS WAU12200 Wall Power Supply Specifications:
- Input Voltage: 120VAC, 60Hz
- Output Voltage: 12VAC, 200mA
- Power Output: 2.4W
- Operating Temperature Range: -10°C to +40°C
- Enclosure: Thermoplastic molded
- Cord Length: 6 feet
- Isolation: Dielectric isolation of 4kVDC for one minute
- Protection: Double insulation and Class-2
- Efficiency: 80%
- No-load Power Consumption: <0.5W
- Agency Certifications: UL, CUL
- RoHS Compliant: Yes
- Dimensions: Not specified in millimeters, compact size for easy integration
Buy the Triad Series Wall Plug-In Power Supply: WAU12200
Purchase the Triad Series WAU12200 wall plug-in power supply online today for reliable and safe 12VAC power delivery. Its compact, fully enclosed design reduces noise, size, and weight, making it ideal for various industrial and electronic applications. The power supply features double insulation, Class-2 protection, dielectric isolation of 4kVDC, and meets all necessary safety standards including UL and RoHS compliance. Easy to install with a 6-foot cord, it provides an unregulated output suitable for power management needs in diverse environments.
Get Triad Series WAU12200 today—built for safe, reliable, and efficient power management with a compact design and UL/CUL safety certification.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS WAU12200?
You can click on the BUY or RFQ button to purchase WAU12200 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part WAU12200?
You can download the WAU12200 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of WAU12200?
TRIAD MAGNETICS
