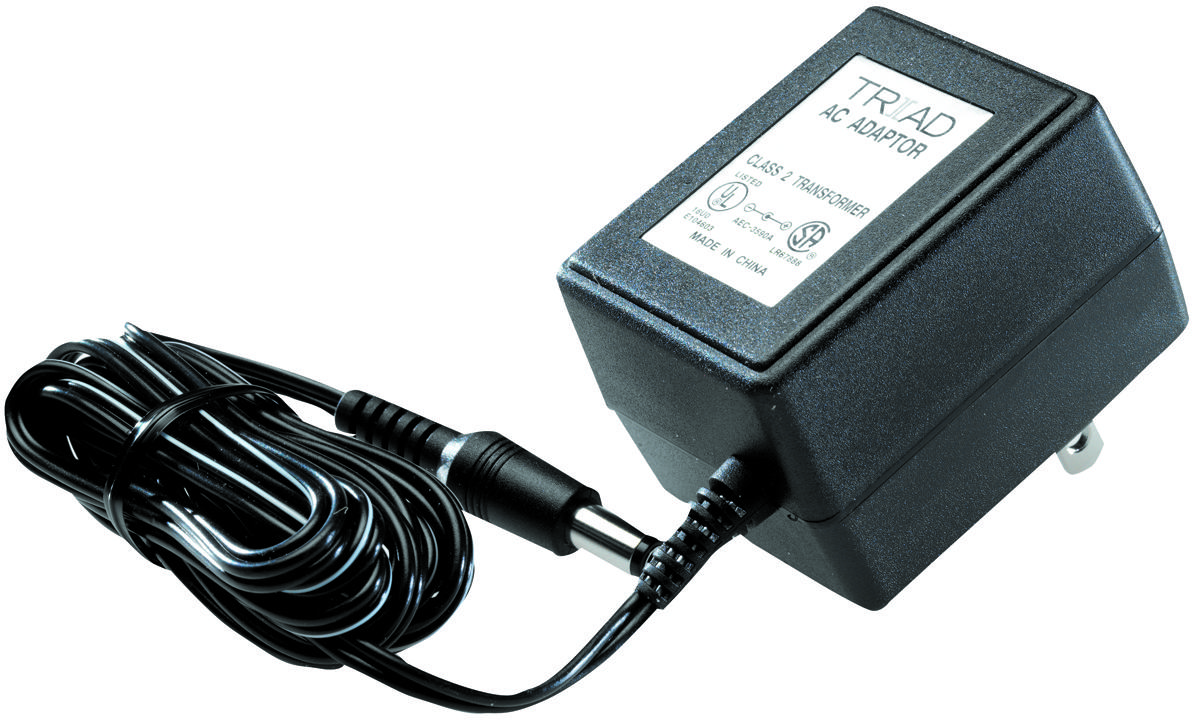

TRIAD MAGNETICS WDU12600 Power Supply
The WDU12-600 is a compact 12V DC wall plug-in power supply delivering 12.5W power, designed for easy integration into various electronic devices. It features a thermoplastic molded enclosure, operates within -10°C to 40°C, and includes a 24 AWG six-foot output cord. With double insulation, dielectric isolation of 4kVDC for one minute, and Class-B safety protection, it ensures reliability and safety. Its fully enclosed, noise-reducing design makes it ideal for power management applications, providing stable and safer voltage with minimal heat transfer to sensitive circuits.
TRIAD MAGNETICS WDU12600 Power Supply Specifications:
- Input Voltage: 120VAC 60Hz
- Power Output: 12VDC, 12.5W
- Current: 600mA
- No-Load Voltage: 16.05VDC
- Ripple Voltage: 1450mV Max
- Operating Temperature Range: -10°C to +40°C
- Thermoplastic Enclosure: Fully molded
- Output Cord: 24 AWG, 6 feet long
- Safety Certification: UL, CUL File E245587
- Dielectric Isolation: 4kVDC for one minute
- Temperature Rise: 75°C at rated load
- Enclosure Surface Max Temperature: 50°C
- Application: Power management, power supply for electronic devices
- Operating Frequency: 60Hz
Buy the Triad Series Power Supply: WDU12-600
Upgrade your electronics with the Triad Series power supply, model WDU12-600. Designed for efficiency and safety, it provides 12V DC at 12.5W with a durable thermoplastic enclosure and a six-foot output cord. This power supply features double insulation, dielectric isolation of 4kVDC, and complies with safety standards including UL and CUL certification. Its compact design reduces noise and heat transfer, making it ideal for power management applications, ensuring your devices operate safely and reliably with minimal interference. Order online today and experience dependable performance in your projects.
Order your Triad Series WDU12-600 power supply today and ensure reliable, safe power for your electronic projects with minimal heat and noise.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS WDU12600?
You can click on the BUY or RFQ button to purchase WDU12600 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part WDU12600?
You can download the WDU12600 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of WDU12600?
TRIAD MAGNETICS
